Prosistel PST-33 Tri-band Yagi

Ref: PST33

Bookable
€582.00
Tax included
rating No review at the moment
- Ask about delivery times
Quantity

Guarantee safe & secure checkout

You can purchase this product in installments with Sella Personal Credit. Click here for more information.

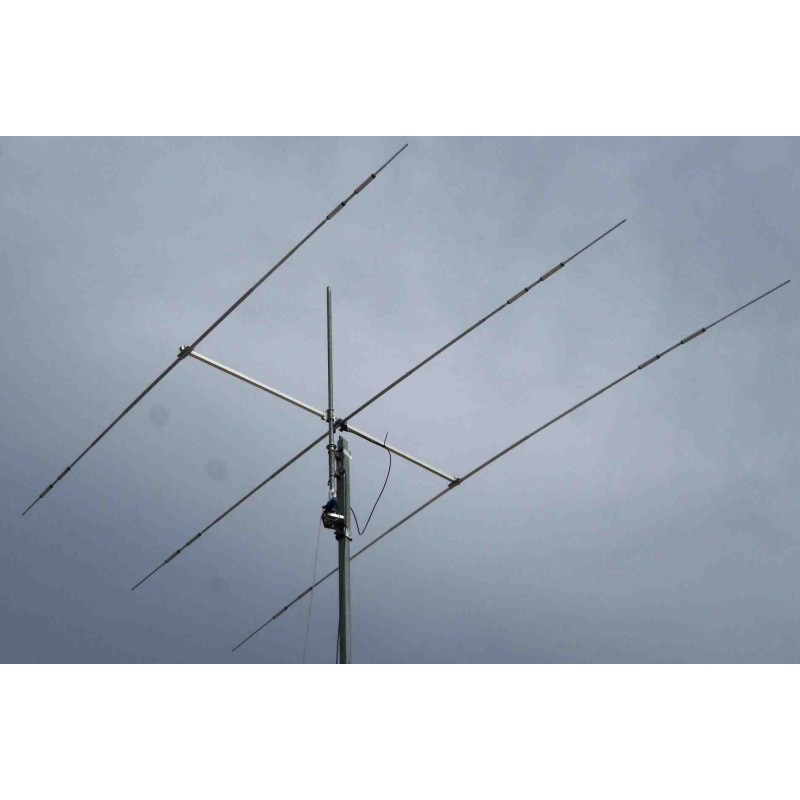

PST-33 Triband Yagi





   Construction detail of the traps. Copper coil on fiberglass insulator



Small trapped 3-element tri-band yagi, covering the 10-15 and 20m bands. The independent traps give the antenna better performance in terms of band-by-band adjustment, useful bandwidth, gain and front-to-back ratio. The kit for 40m is available on request, but although it also allows operation on 40m as a rotary dipole, when installed it deteriorates the directivity on the other bands as happens on all other similar antennas that use additional kits. Very robust construction, with stainless steel bolts, the highly insulated copper wire traps with fiberglass supports, allow use even with powers up to 2KW pep ssb.

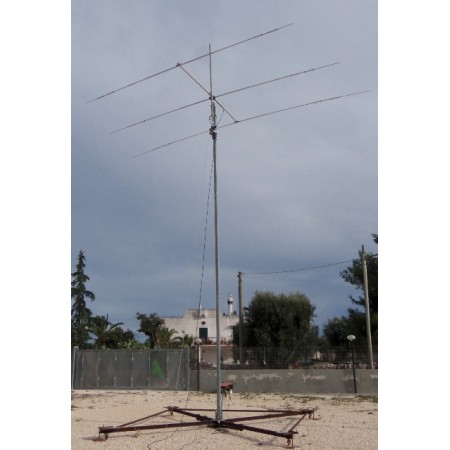

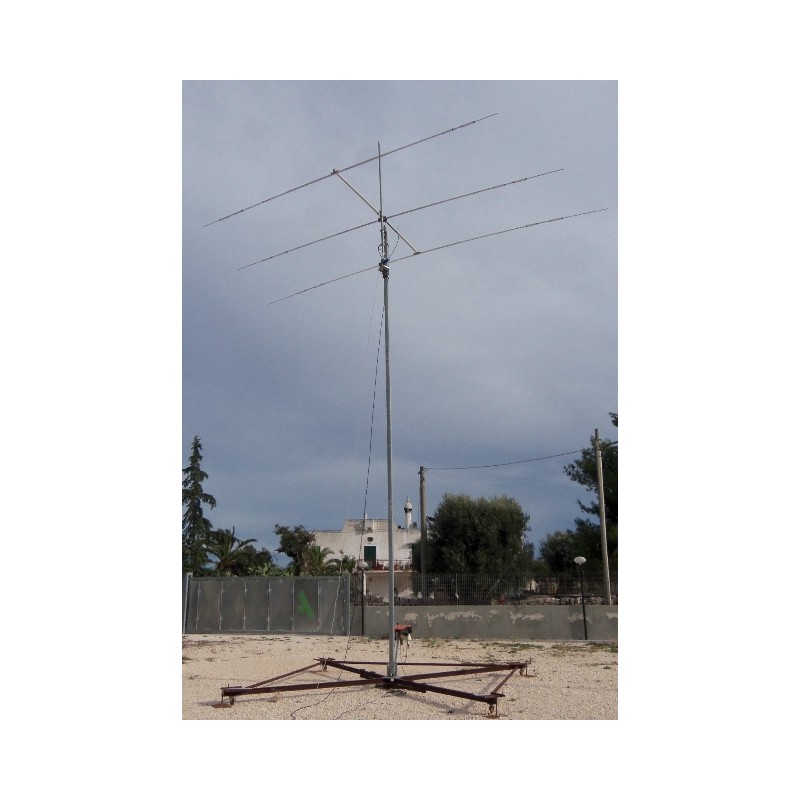

For optimal operation, we recommend mounting it at a height of at least 4-5m from the ground.

PST33 MAXIMUM SPECIFICATIONS:

- Gain: 6-8 dBd

- Impedance: 50 ohm

- F/b: 20m 6-8dB, 15m 8-10dB, 10m 18-20dB approximately

- Front side: >20dB

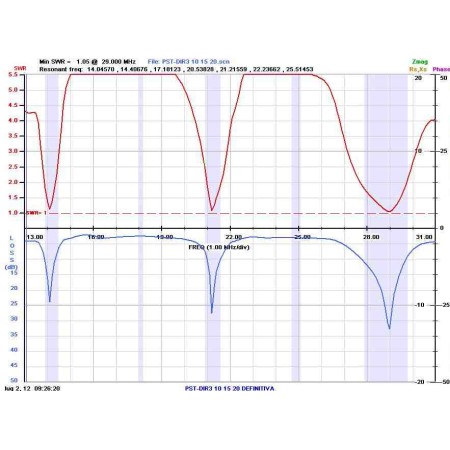

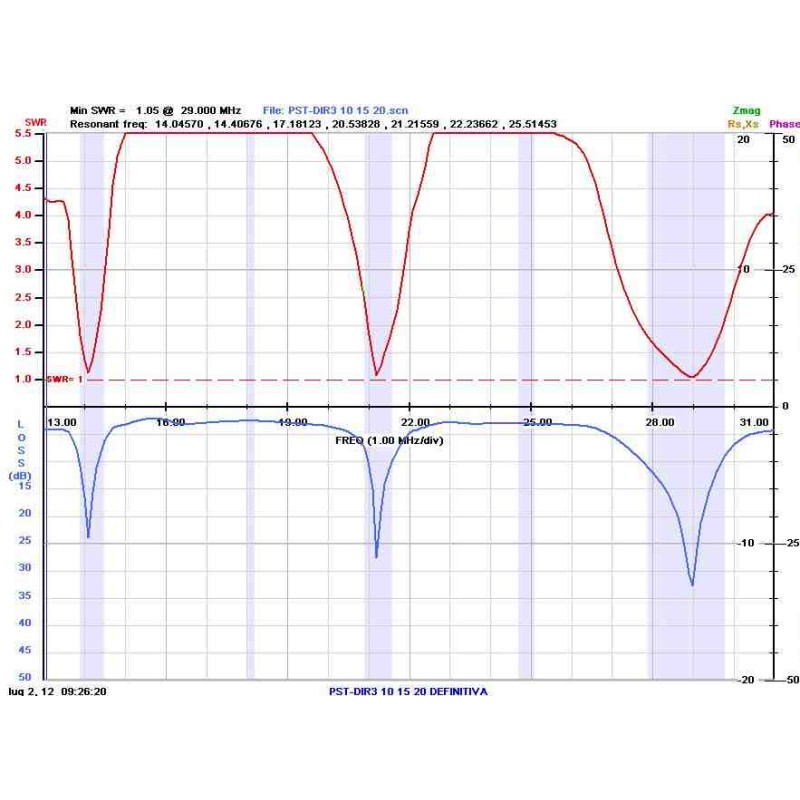

- ROS: band extremes within 1:1.8 (see graph)

- Boom length: 4m

- Rotation radius: approximately 5m

- Wind area: 0.6m2

- Weight: approximately 18kg

- Accepts mast: 48mm (standard) or 60mm (optional)

- Material: AL6060T6, stainless steel bolts.

PST33

Data sheet

Mpn
PST-33
Guy
HF Direttive
Compatible brand
Generico
Sub-Categories
HF Direttive
