Ref: PST1524TV

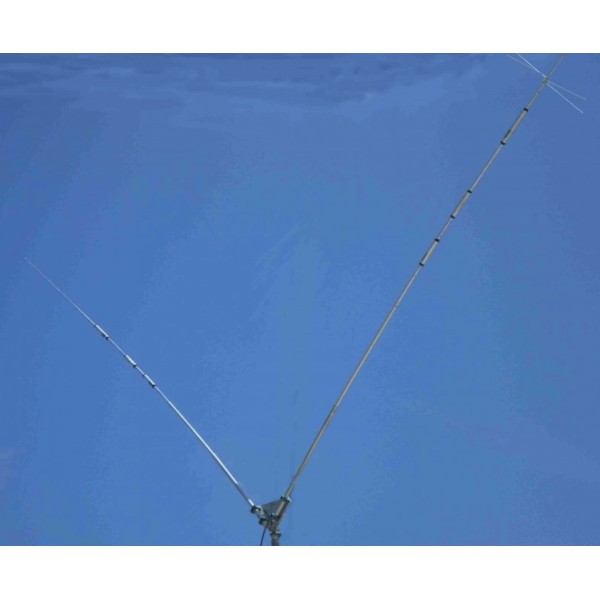

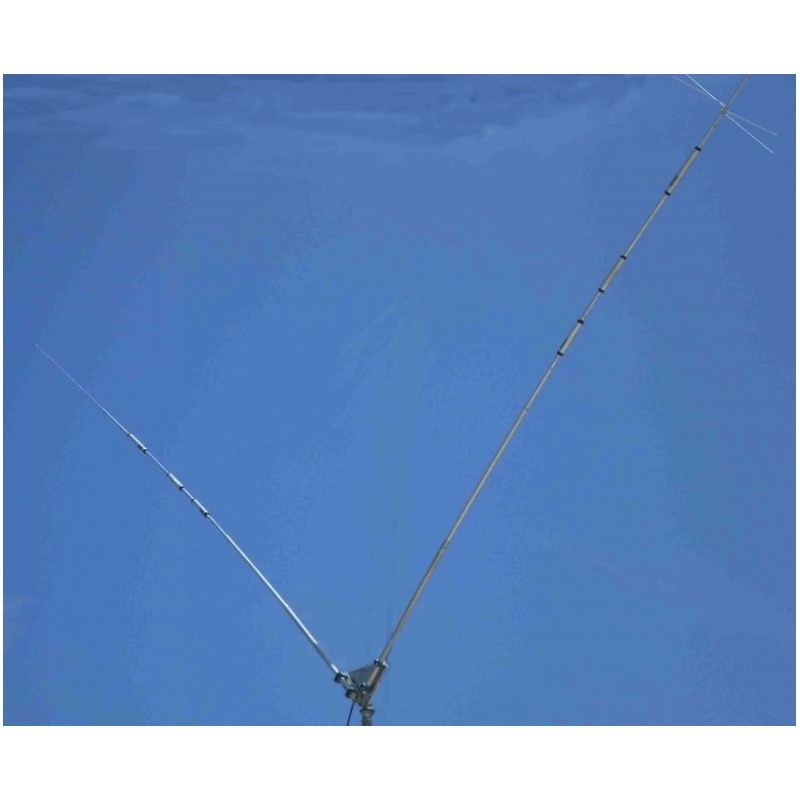

Bookable- Trapped multiband dipole 10-15-20-40m, in V configuration, omnidirectional.
- 2KW pep
- Arm length : 6m, projection on the ground 4m per arm
- Mounts on poles of :
- 40 to 50mm;
- 60mm optional.
- Suggested height at least 5m, but works well even at 2m.
- The antenna does not require bracing.
- Weight 8Kg
- Balun optional
GENERAL SPECIFICATIONS:
- Gain: 0 dBd;
- Impedance : 50 ohm;
- VSWR : <1:1.5 band ends within 1:1.8;
- Rotation radius : from approximately 3 to 4m depending on the version;
- Weight : approximately 6-8kg;
- Accepts mast : 48mm (standard) or 60mm (optional);
- Material : AL6060T6, stainless steel bolts.
ROS AND RETURN LOSS CURVES
Data sheet
