Ref: EASYMIM
Immediately available

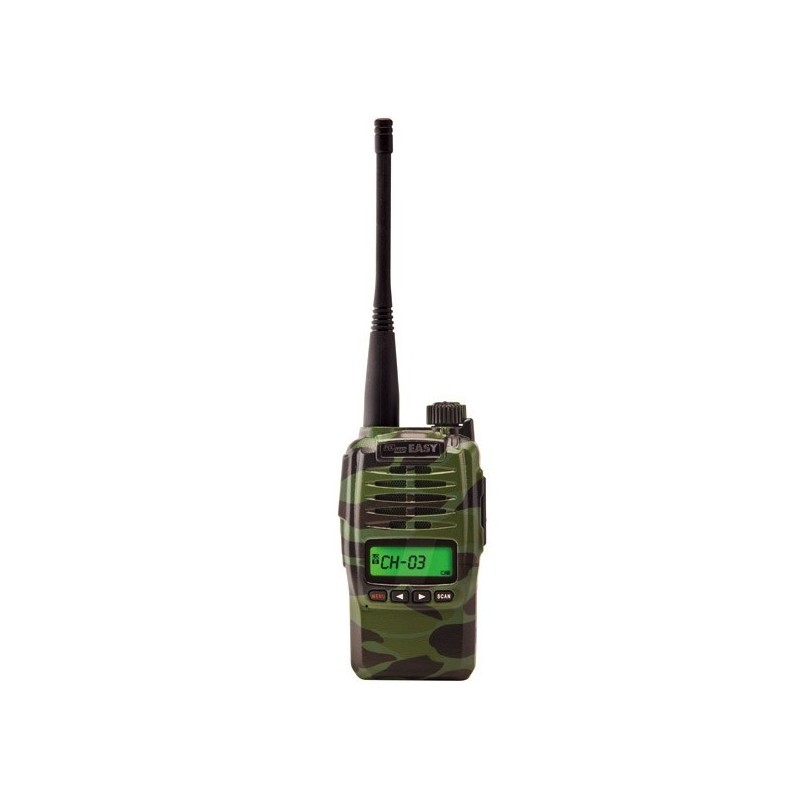

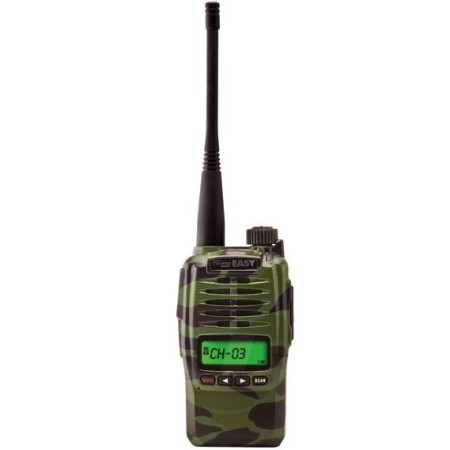

Excellent performance and simple to use, the transceiver EASY is characterized by various functions that can be set directly by the user.
CHARACTERISTICS :
- High capacity lithium ion battery;
- 50 CTCSS codes and 83 DTCS codes user-settable from keyboard;
- Energy saving function;
- Settable keyboard lock function:
- SQL function settable;
- Button press sound signaling function deactivable;
- Battery charge status indication;
- FM Radio (88~108MHz);
- VOX function can be set, with MF-11 microphone and optional MA-10 microphone/earphone.
SPECIFICATIONS :
- Frequency range : 446.00625 MHz ~ 446.09375 MHz
- Number of Channels : 8 channels
- Channel spacing : 12.5 kHz
- Operating voltage : 7.4 V
- Power supply : 2300 mAh
- Absorption : 600 mA
- Operating temperature : -20°C ~ +60°C
- Dimensions : 100 × 58 × 36mm
- Weight : 205 g
- RF power : 500 mW
- Modulation : FM
- Squelch sensitivity : 0.16uV
- RF output power : 500 mW
- Audio distortion : 5%
- Reception absorption :
- Sensitivity at 12dB SINAD - del: 122 dBm
