ICOM IC-F5122D - IDAS and ANALOG VHF RTX

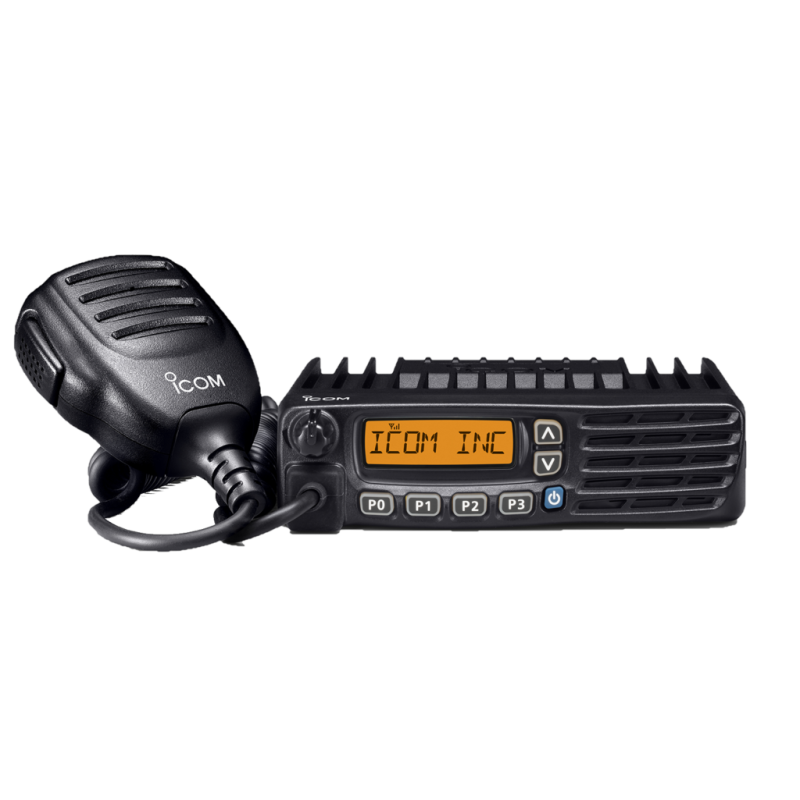

Icom IC-F5122D
PMR VHF MOBILE TRANSCEIVER

General characteristics

• Compatible with IDAS conventional and IDAS multi-site trunking systems
  (NXDN CAI-based)
• Built-in digital capabilities . No optional unit required.
• Up to 128 channels divided into 8 banks.
• 8-character alphanumeric display .
• All major signaling types available for selective and group calls:
  2 Tone, 5 Tone, CTCSS, DTCS, MDC 1200* and BIIS 1200* (*limited functionality).
• 4W audio output with built-in speaker and independent volume knob.
• Talk back function and call mode selection
• Optional ACC cable OPC-2078 with 25pin D-SUB connector for connection to a
  GPS receiver.
• MIL-STD-810-F compliant construction .

Compatible with IDAS NXDN CAI-based digital modes

• The IC-F5122D/IC-F6122D transceivers can operate in IDAS digital mode
  with NXDN protocol also with conventional multi-site systems and IDAS multi-site trunking.
• Connection to a GPS receiver via the optional OPC-2078 ACC cable
• Thanks to the new optional OPC-2078 cable with 25pin D-SUB ACC connector it is possible
  connect the transceiver to a GPS receiver or a PC.
• The optional OPC-1939 D-SUB 15 pin ACC cable is also available, in common
  with the IC-F5022 series.

Up to 128 memory channels in 8 banks
The IC-F5122D series transceivers are capable of storing up to 128 channels
divided into 8 banks. The selection of memory channels can be performed via the
up/down buttons.

LCD alphanumeric display
8-character, 14-segment LCD alphanumeric display, capable of displaying a
large variety of information. The icon displayed in the upper right part of the
display indicates that the scanning function is active.

4W audio output (typical) with built-in front speaker
4W audio output and front speaker for optimal audio performance.

Built-in 2-tone/5-tone signaling function
The IC-F5122 series transceivers incorporate 2-tone, 5-tone signaling systems
tones, CTCSS and DTCS for individual and group calls. In addition, the device is capable
to decode up to 10 2-tone codes or 8 5-tone codes. It is possible to program
different response actions to each code, such as: Audible warning – Visual indication
ringing (bell) – Answer back – Automatic transmission – disable
and remote reactivation – Scan – Activation of an external output*.
* Connection of an external device such as a horn speaker, buzzer etc. is required.

Compatible with MDC1200 protocol
The following selective calling and ANI features are available for MDC signaling:

• PTT ID
• Radio Check (RX only)
• Radio Revive (RX only)
• Emergency (without ACK transmission)
• Radio stun (receive only)
• Up to 500 alias tables

Talk Back function and Call mode
With the Talk Back function enabled, the IC-F5122D transceivers automatically select
the channel and ID (individual or group; in IDAS digital mode only) of the last received call, while scanning stops or restarts after a preset period of time.
A specific timer warns with an acoustic signal when the talk back time expires. Thanks to this function, the operator can quickly answer each incoming call.

Other features

• PTT ID transmission in BIIS mode
• 8 DTMF memories with autodial function
• Frequency stability of ±1.0ppm in both VHF and UHF.
• Programming software compatible with IC-F3102D series

Supplied with: HM-152 handheld microphone, power cable, microphone bracket, kit
assembly instructions, button assignment labels and user manual.
