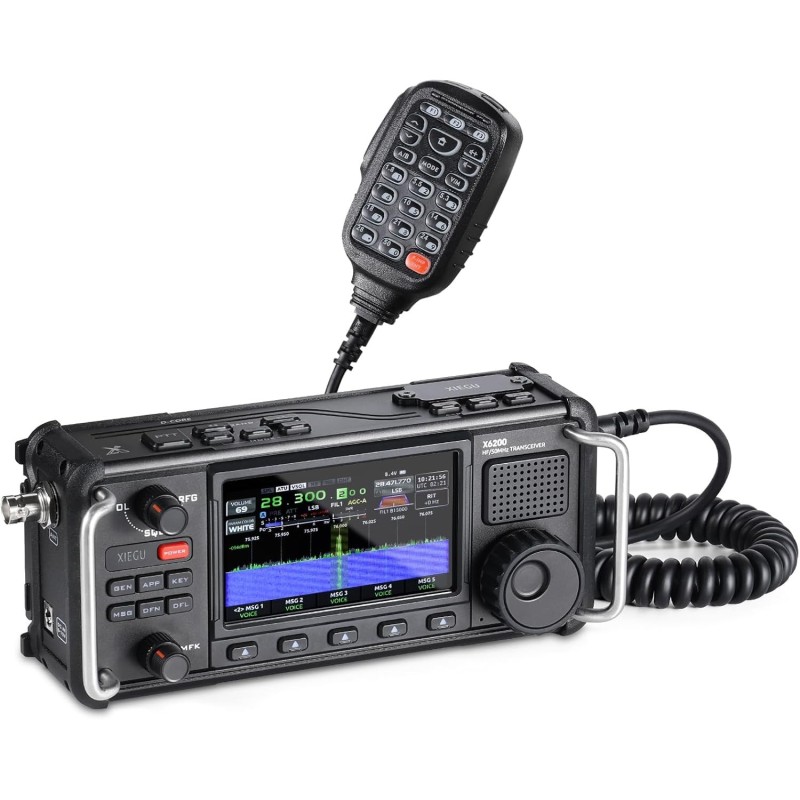

Xiegu X6200 QRP amateur radio

The all-new Xiegu X6200 is an ultra-portable direct-scan SDR transceiver for HF and 6m, offering additional reception in the VHF air band and wide FM reception in the FM broadcast band.

Thanks to its compact design, the X6100 from radio manufacturer Xiegu allows you to travel or go hiking right away. This means that the radio hobby can also be practiced outdoors.

Xiegu's X6200 is a new generation ultra-portable flagship that utilizes a powerful DRFS platform architecture and provides radio amateurs with a comfortable user experience.

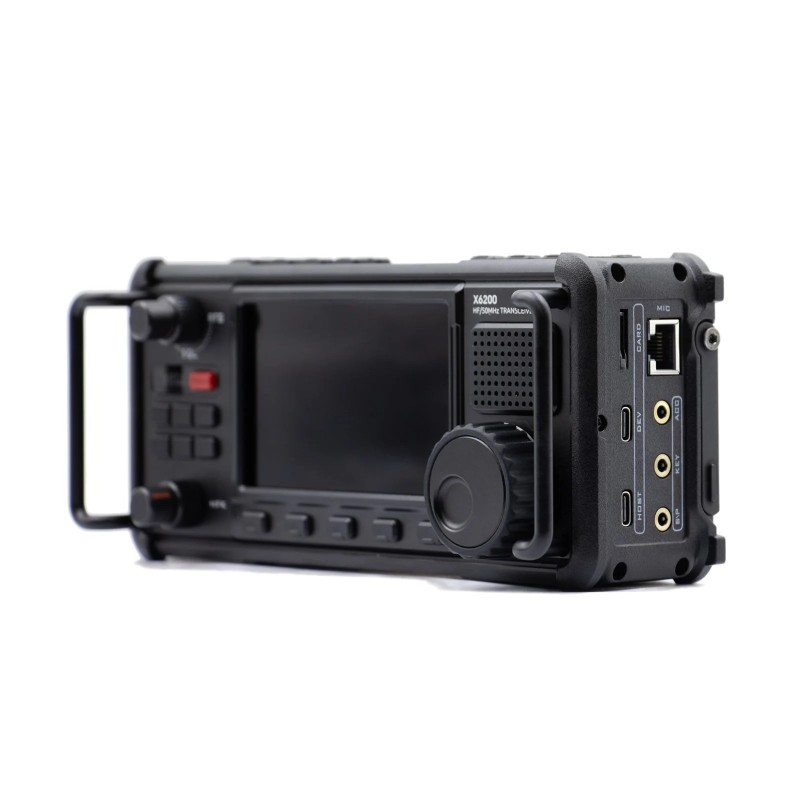

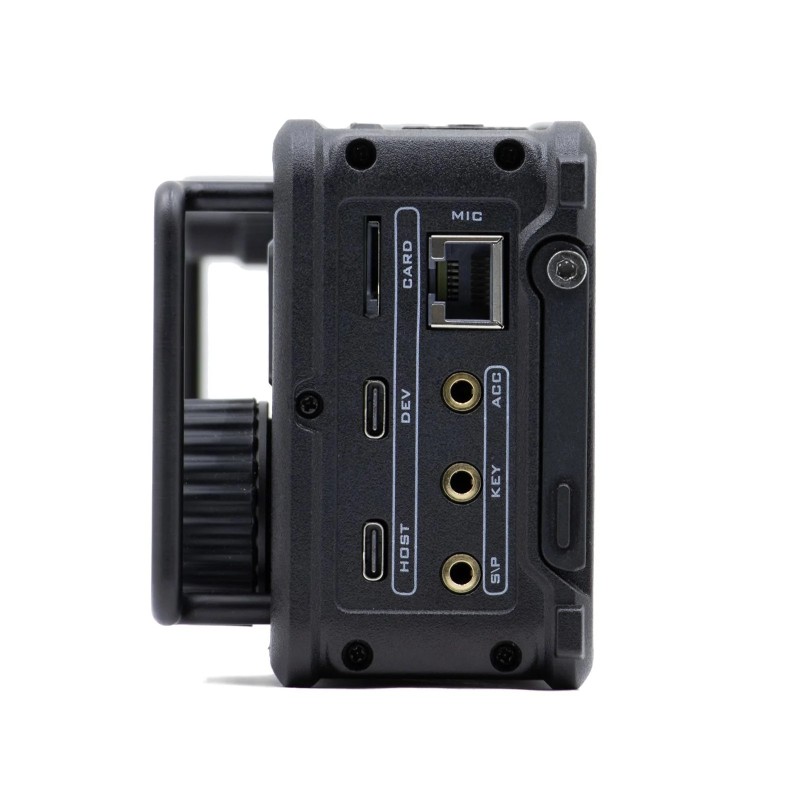

It features a 4-inch color screen, built-in rechargeable battery, automatic antenna tuner, microphone and recorder. It also supports various SDR functions such as digital filters, noise cancellation, pulse interference removal and display of the spectrum/waterfall. It also has two USB interfaces, an ACC interface, a 3.5mm KEY interface and an S/P interface. Two slots for external expansion components allow you to build additional applications and connect peripheral devices. .

Xiegu X6200 Key Features:

• HF/50MHz in all modes
• 8W transmit power with external power source, 5W with internal battery
• 4" high resolution color screen with 800*480 pixels

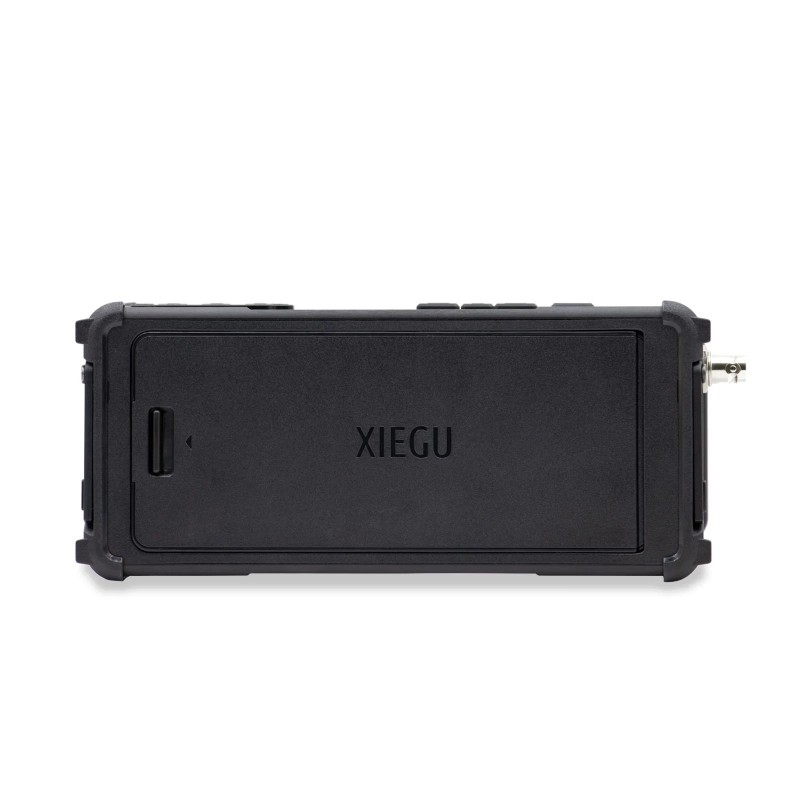

• Removable battery
• Built-in efficient automatic antenna tuner
• Built-in SWR scanner
• Voice memory keyboard
• CW Memory Button
• Built-in USB line control/transmission, built-in sound card
• Remote control support
• FT8 Wireless Operation
• Receiving WFM broadcasts
• Airband reception

Xiegu X6200 General Specifications:

• Frequency coverage: 0.5-30+50-54MHz (transmission in amateur radio bands)
• Operating modes: USB/LSB (J3E), CW (A1A), FM (F3E), RTTY (F1B), AM (A3E)
• Minimum frequency step: 1 Hz
• External power supply voltage: DC9-15V
• Frequency stability: ±1 ppm within 20 minutes after power on
• Antenna impedance: 50 Ohm

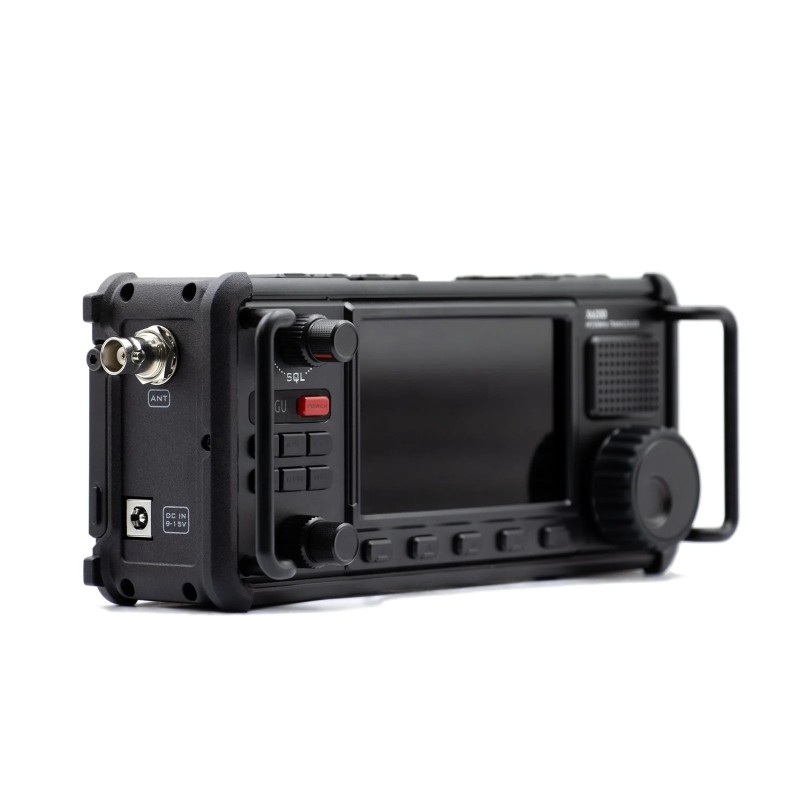

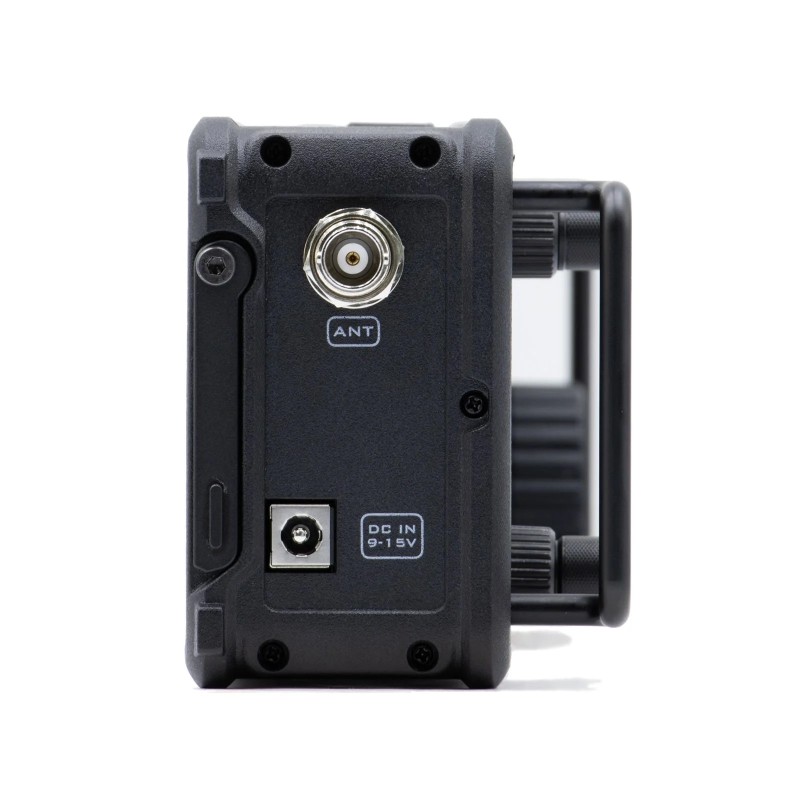

• Antenna connection type: BNC
• Operating temperature: 0°C to +50°C
• Power consumption RX: <65mA, TX: 3.5A

Xiegu X6200 Receiver Specifications:

Frequency coverage:

• 0.5-30+50-54MHz
• 88-108MHz (FM broadcast)
• 108-136MHz (aeronautical band)
• Sensitivity (10dBS/N):
• 0.55-1.79 MHz AM: 10 µV
• 1.8-30 MHz SSB/CW 0.20 µV, AM 2 µV
• 50-54 MHz FM 0.2 µV AM 2 µV
• 88-108MHz FM 5µV
• Audio output: 0.45 (4 Ohm ≥10% THD)
• MDS: -138dBm

Xiegu X6200 Transmitter Specifications:

Frequency range:

• 1.8-2.0MHz
• 3.5-3.9MHz
• 5.3515-5.3665 MHz
• 7.0-7.2MHz
• 10.1-10.15MHz
• 14.0-14.35MHz
• 18.068-18.168 MHz
• 21.0-21.45MHz
• 24.89-24.99MHz
• 28.0-29.7MHz
• 50-54MHz

• Output power, external power supply: 8W +/- 1dB
• Output power, internal battery: 5W +/- 1dB
• Interference emission suppression: 1.8-29.6 MHz: ≥50 dB, 50-54 MHz ≥60 dB
• Carrier suppression: ≥50 dB
• SSB frequency response: 300-2700 Hz (-6 dB)
• FM modulation variation: +/- 5 kHz
• Microphone impedance: 0.2-10k
• Antenna tuner tuning impedance range: 20-175 Ohm
• Antenna tuner initial tuning time: ≥ 10s
• Antenna tuner memory recall time: ≥ 0.1s

Xiegu X6200 Wireless Network/Bluetooth:

• Wireless LAN standard: IEEE802.11b/g/n
• Authentication and Encryption: WEP (64/128 bit), WPA-PSK (TKIP), WPA2-PSK (AES)
• Frequency band: 2.4G
• Bluetooth version: 4.0

Xiegu X6200 General Specifications:

• Dimensions: 200 x 89 x 51 mm
• Weight: 880g (radio only)

Xiegu X6200 scope of delivery includes:

• Xiegu X6200 radio complete with antenna tuner and rechargeable battery
• Microphone with illuminated keyboard for remote control
• Serial cable for connection to the PC
• 12 Volt DC Cable
• English manual
• Xiegu Service Card
