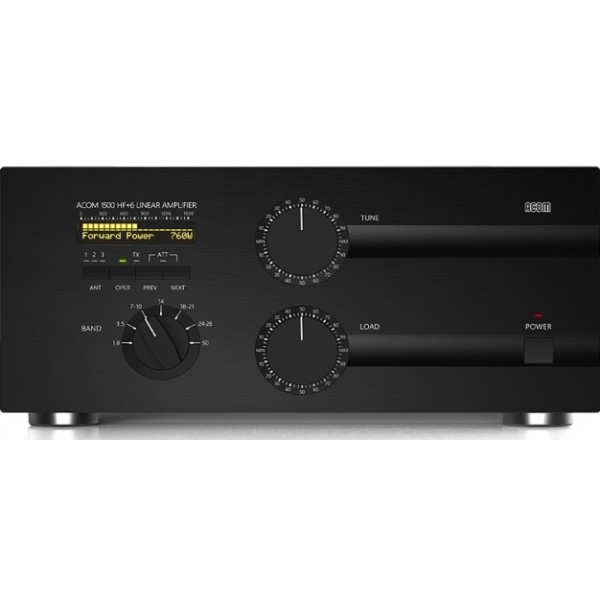

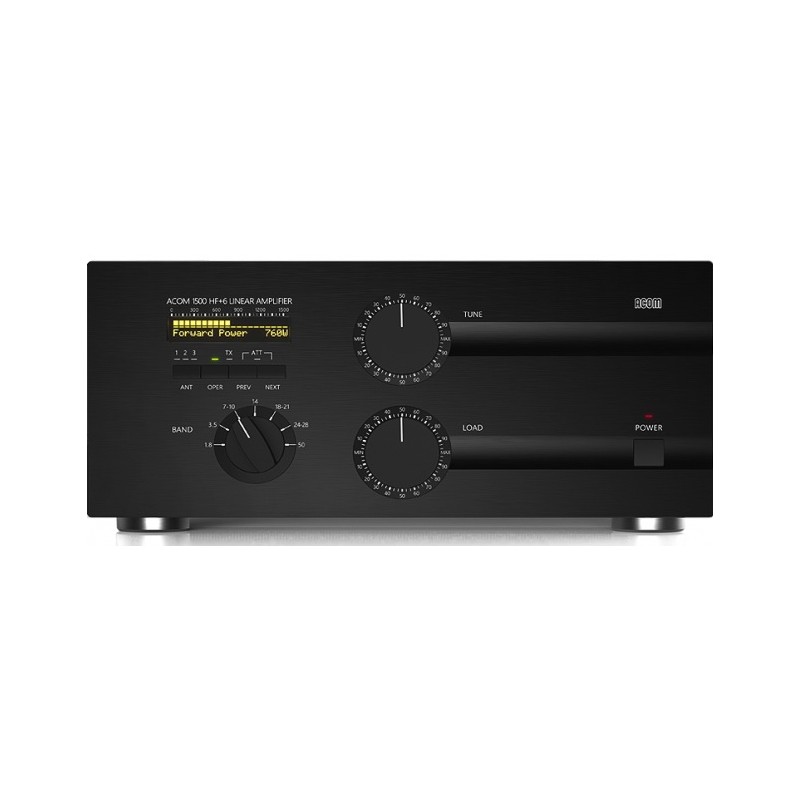

ACOM 1500 HF + 6m LINEAR AMPLIFIER

Ref: ACOM1500

Last items in stock
€3,733.00
Tax included
rating No review at the moment
Usually ships within 24 hours.

Quantity

Guarantee safe & secure checkout

You can purchase this product in installments with Sella Personal Credit. Click here for more information.


- Easy to use
The TRI is a powerful adjustment aid that, together with the input attenuator to control Automatic, helps the operator to quickly and accurately match the impedance antenna for the optimal load impedance of the tube (5-10 seconds typically). There Auto-run function (if enabled) keeps the amplifier in mode to work for you, avoiding unnecessary manual operations.

- No antenna tuners
No heavy outboard antenna tuners required for the antenna. VSWRs up to about 3:1. The amplifier will allow you to change the antennas so practically instantaneous and allow the antennas to be used across frequency ranges wider.

- Easy to use
An amplifier which is both easy to use and looks after itself. It was designed to Safely withstand up to 300W reflected power, up to 100 milliseconds duration of hard tips, RF unit "tails" after a PTT release or, commissioning errors at involuntary points of the operator etc. The amplifier also does not stop run on a "soft" AC mains and will offer more than half power at only 85% of the nominal mains voltage. It can withstand voltage drops (down to zero volts) for up to 10 milliseconds and can tolerate 15% surges network, which is especially important in Field Day, during DXpeditions, and at portable operational events where emergency power is required invoked.

- VFD display
All directions Amplifier statuses are explained via detailed displayed text on the dot matrix, vacuum high brightness fluorescent display (VFD). The top line on the VFD always reads peak power forward. indicators LEDs are provided: mode, dimming-on, transmit, selected operate the antenna output, and the / OFF conditions.

- Three antenna outputs
Three Antenna outputs are selectable with a button on the front panel.

- Easy maintenance
Data regarding the internal state of the amplifier is stored in a memory non-volatile for 7 of the latest automatic protection trips. This information can be sent to your dealer for diagnostics.

- QSK Virtually silent
To avoid input and the empty antenna are virtually silent too CW QSK mode thanks to specially designed mounting hardware.

- Broadband input matching
Resulting in very good load to the transceiver over the entire 1.8-54MHz spectrum.

- Single 4CX1000A tube
Uses a radial ceramic and metal beam tetrode with dissipation plate 1000W which is specially designed for class AB1 RF amplifier operation linear.

- Hose protection
Monitoring and the protection of the plate and permanent grid voltages and currents as well exhaust air temperature.

TECHNICAL FEATURES:

- Frequency coverage: All amateur bands 1.8-54MHz;

- Extensions and/or modifications on request;

- Output power: 1500W PEP or 1200W continuous career, no mode limits;

- Intermodulation distortion: better than 35dB below rated production;

- Hum and Noise: Better than 40dB under power nominal;

- Output harmonic suppression:
- 1.8-21.5MHz - Better than 50dB below rated power;
- 24-54MHz - better than 66dB under rated power;

- Input and Output Impedances:
- Rating: 50 Ohm unbalanced, UHF (SO239) type connectors;
- Input circuit: wideband, VSWR less than 1.3:1, 1.8-54MHz continuously (no tunings, no switching);
- Path bypass VSWR less than 1.1:1, 1.8-54MHz continuously;
- Output matching ability: Better than VSWR 3:1 or greater at levels reduced output;

- RF Gain: 13dB typically, frequency response lower 1 dB (60-85W drive power for rated output);

- Primary Power: 85-132V and 170-264V (100, 110, 120, 200, 210, 220, 230 and 240V nominal taps, +10% -15% Tol.), 50-60 Hz, single phase, consumption 3500VA at nominal production;

- Complies with CE safety and EMC requirements, as well FCC rules;

- Dimensions and weight:
- operational: WxDxH: 422x355x195mm, 26.5kg. (16.6x14x7.7 inches, 58.4lbs);

- Shipping: WxDxH: 560x560x300mm, 29.5kg. (22x22x12 inches, £65);

- Operating environments:
- Temperature: 0 ... + 50 degs.Celsius;
- Humidity: up to 95% @ +35 degs.Celsius;
- Height: up to 3000m above sea level without deterioration output.

ACOM1500

Data sheet

Mpn
ACOM1500
Guy
generico
Compatible brand
Generico
