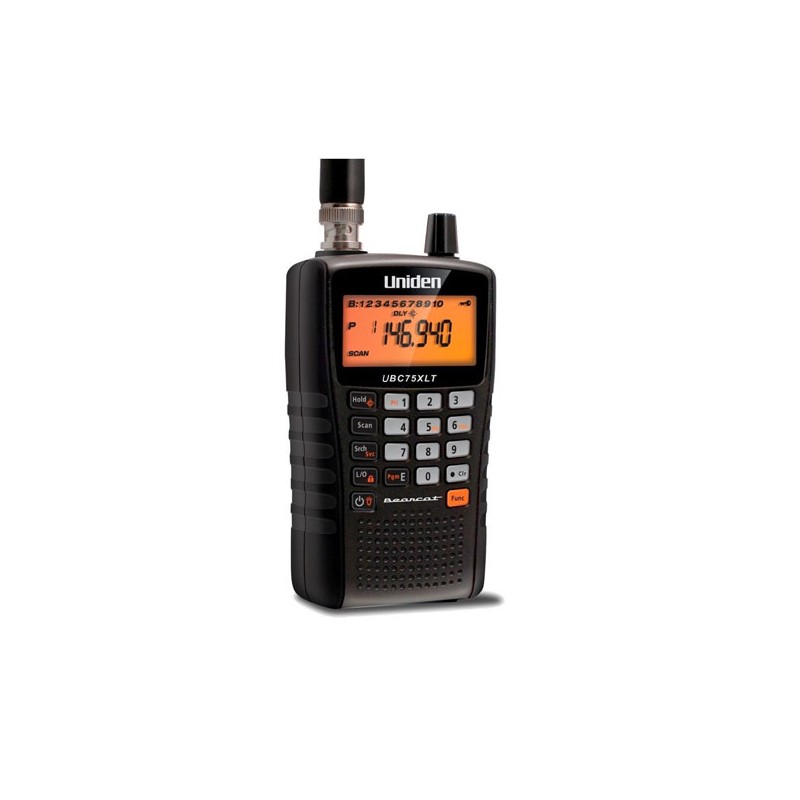

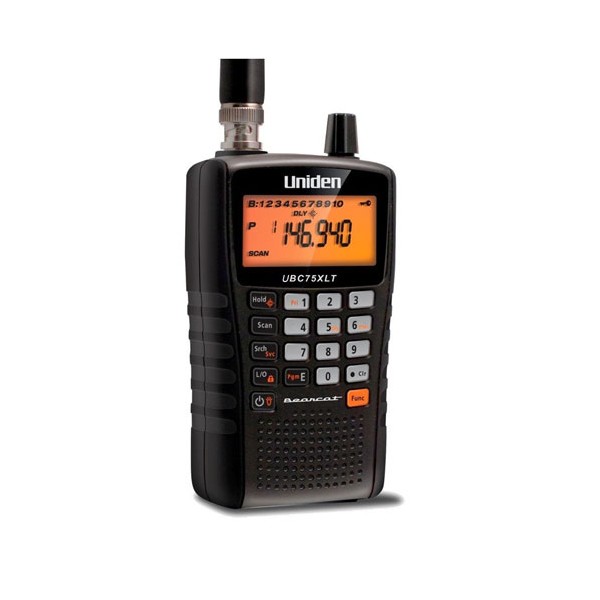

UNIDEN UBC-75 XLT Scanner Receiver

UNIDEN UBC-75XLT

CB/AIR/VHF/UHF portable scanner

The Uniden UBC75XLT is another new scanner model from Uniden. This scanner is complete with a keyboard for direct frequency access with priority channels and is ideal for controlling the CB bands, the air band, the civil and amateur VHF and the UHF up to 512 MHz.

Here are the bands received:
25.0000-88.000 Citizen Band, amateur band, VHF low band
108.000-174.000 air and land mobile band, amateur band, High Band VHF
406.0000 – 512.0000 land mobile, amateur band, UHF band.
The main features of this scanner are listed below:
300 channels Programmable scanner with TURBO search function
10 designated frequency bands

Selectable step: 5/6.25/10/12.5/20 KHz (5.33/12.5 KHz for the air band)
Ultra compact design

CLOSE CALL CAPTURE function
Program Search (allows you to program the search of upper and lower limit band frequencies for 5 search banks)
Bank Search (allows you to search all frequency band banks and select the number of banks you want to search
SKYP frequency (allows you to skip frequencies in chain search if the frequency is not the preferred one), the display is backlit.
Three band plan
Backup memory
Scanning memory channels
Direct access to channels
Channel lock
Priority scanning
Duplicate channel alarm (warns that the frequency entered by the user is not entered more than once)
Backlit LCD display
Keypad lock
Tony
The UBC75XLT can be powered by 2 AA alkaline or rechargeable batteries with a USB charging socket, or with an external power supply (5V/500m/Ah) via USB socket.

Accessories:
User manual in ITALIAN and ENGLISH
BNC antenna
Belt clip

2xAA rechargeable NI-Mh batteries

USB cable for charging from 5V source (adapter not supplied)

Supplied complete with manual in Italian and English and 2-year ITALY warranty.

TECHNICAL SPECIFICATIONS

Channels: 300

Scanning speed: 40 steps / sec

Banks: 10

Receiver Sensitivity: 0.4μV / 0.9μV

IF: 60dB

Antennas: 50 Ohm BNC socket

Audio Output: 490mW at 24 Ohms

Power: 2 x AA batteries. 3V DC USB 5V or 2×1.2 V AA rechargeable…. (ni-mhi batteries included)

Dimensions: 67 (L) x 32.7 (D) x 115 (H) mm

Weight: 175 grams
