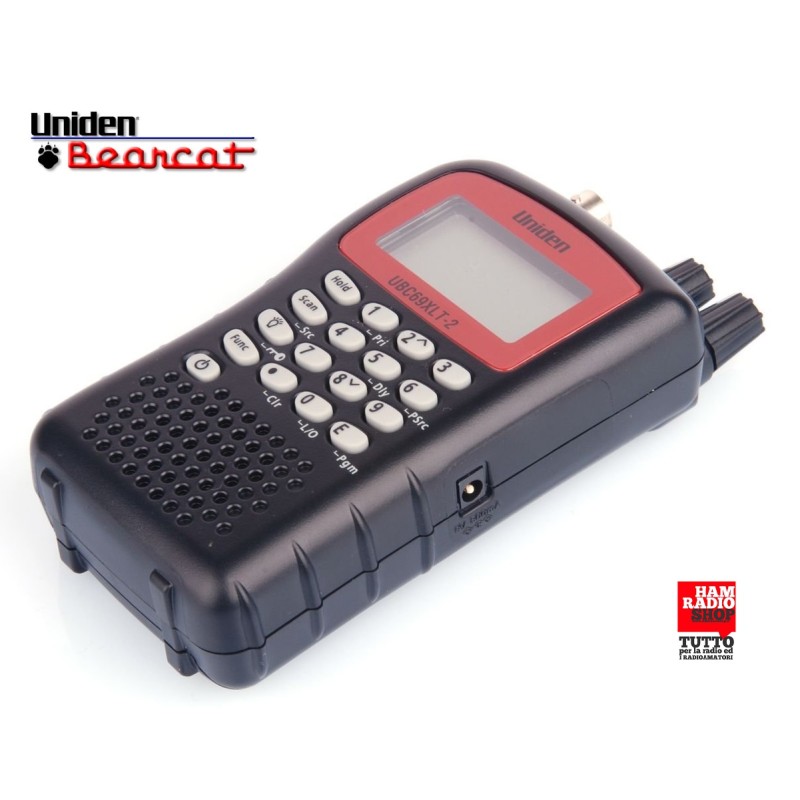

Uniden UBC69XLT-2 PORTABLE Radio scanner 25-512 MHz AM FM

The Uniden UBC69XLT is another new scanner series from Uniden. This scanner is the successor to the 60xlt and is ideal for marine monitoring, race crews, utilities etc. However, please note that this scanner does not feature Airband.
It has frequency coverage:

- 25.0000-87.2625 Citizen Band, amateur band, the VHF low band;
- 137.0000 - 173.9900 land mobile, amateur band, High Band VHF;
- 406.0000 - 512.0000 land mobile, amateur band, UHF band


- 80 channels programmable scanner

- 8 designated frequency bands

- Ultra compact design

- Program search (allows you to program the search of upper and lower limit band frequencies for 5 search banks)

- Bank Search (allows you to search all frequency band banks and select the number of banks you want to search

- SKYP frequency (allows you to skip frequencies in chain search if the frequency is not the preferred one)

- Three band plan

- Backup memory

- Low battery charge alarm

- Memory channel scanning

- Direct access to channels

- Channel lock

- Priority scanning

- Duplicate channel alarm (warns that the frequency entered by the user is not entered more than once)

- Backlit LCD display

- Keyboard lock

- Tony

The UBC69XLT can be powered by one of the alkaline or rechargeable AA batteries.


- User Manual

- BNC aerial

- Belt clip



The UBC-69XLT covers selected VHF and UHF frequency bands 25 - 88MHz, 137 - 174MHz and 406 - 512MHz in FM mode.. The scanner is easy to use and has 80 memory channels.. There are three choices of bandplans available. It has a fast scan rate of 50 channels per second and two search rates Normal at 60 steps per second and Hyper at 180 steps per second. It also features Chain Search which allows you to search through preset frequency ranges, with three modes within this feature.

  • Frequency range: 25 - 88MHz, 137 - 174MHz, 406 - 512MHz

  • 8 Bands

  • Choice of 3 band plans

  • FM mode

  • Memories: 80 channels

  • Steps: 5, 6.25, 10, 12.5kHz

  • Scan rate: 50 Channels per second

  • Scan delay: 2 seconds

  • Search rate: 60 steps per second (normal), 180 steps per second (hyper)

  • Priority sampling :2 seconds

  • Chain search with chain search mode, chain search hold & program select mode

  • Search skip up to 50 memories

  • Backlight: Bright orange (15 secs)

  • Antenna: rubber duck BNC

  • Audio output 400mW

  • Earphone jack

  • 8 ohm speaker

  • Power 2 x AA alkaline batteries (3.0V) or rechargeable Ni-MH batteries (2.4V) (not supplied)

  • Current drain: Squelched 90mA, Full output 290mA

  • Size: 68 x 115 x 31.5mm

  • Weight: 165g Supplied with Rubber Duck BNC antenna, Belt clip & Owners Manual
