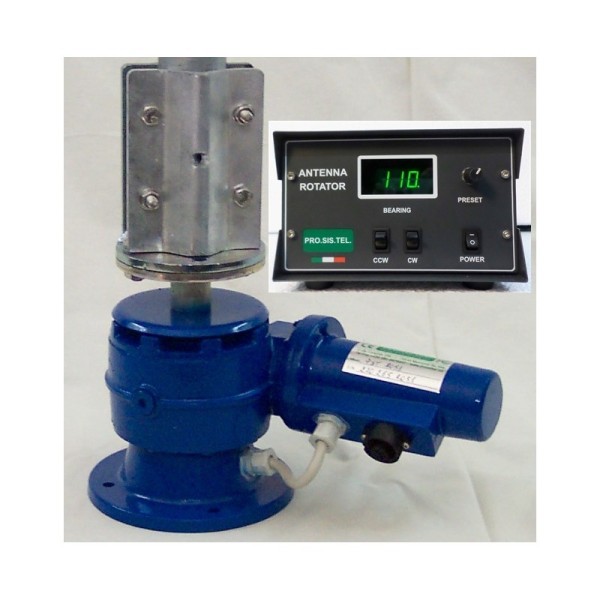

Prosistel PST2051D

Ref: PST2051D

€965.00
Tax included
rating No review at the moment

Quantity

Guarantee safe & secure checkout

You can purchase this product in installments with Sella Personal Credit. Click here for more information.


PST2051D

ASK FOR CONFIRMATION ON WHAT THE DELIVERY TIMES ARE

Antenna rotor suitable for medium-large loads with a maximum capacity of 2.5 m2. Worm screw technology with planetary gearbox pre-stage and DC motor.

Tree 25 mm with flange, CNC machined, without backlash , irreversible when the mast twists. Great brake resistance of 12,500 Kg /cm ( 12,50 Nm ). Excellent torsional power of 2000 kg/cm ( 200 Nm).

Semi-fixed mast connection for masts up to 50 mm

G alvanized and tropicalized yellow.

Optional flexible coupling

SPECIFICATIONS AND TECHNICAL DETAILS:

- Materials :

- Painted die-cast aluminum casing.

- Gears in sintered steel, bronze and chrome molybdenum rotating on lifelong lubricated ball bearings.

- Mast attachment in sturdy laser-cut and galvanized steel.

- All steel parts are galvanized and tropicalized for better durability.

- Perfect watertightness and temperature range from -40? to + 90?.

- Stainless steel bolts.

INTERNAL VIEW AND DETAIL OF SOME CONSTRUCTION DETAILS:



WITH WHICH MODELS CAN IT BE PURCHASED?

- CDE/Hy-gain => T2X

- CREATE => RC5A-B

- Yaesu > G1000

- Kempro > KR1000

New control box D

The new control box? fully configurable and controllable by computer via RS232.

THE FRONT PANEL AND MANUAL CONTROLS:

On the front panel, in addition to the power switch, we find the two paddle buttons CW and CCW and the preset knob.

A few words about the preset:

It is made with a rotary encoder, it allows you to preset any direction in the range 0-360 degrees simply by rotating the relevant knob.

At the same time as you turn the knob. the display automatically shows the position of the preset. Once the desired position has been reached, by stopping the rotation of the preset, after 3 seconds the rotor starts automatically and the display returns to showing the actual position of the rotor until the preset position is reached. In the 3 seconds between setting the preset and running it, you can change or reset a new position. The preset command can be canceled at any time by simply pressing one of the palettes for an instant.

Functions and performances: (the list refers to the most important functions and is accompanied by a short description)

FUNCTIONS CONFIGURABLE MANUALLY AND VIA RS232 :

- Stop in the North - Stop in the South (Stop in the South is by default, it can be changed with the dip-switch or via software)

- Soft Start and Soft Stop (Start and stop occur gradually with a 10 degree ramp. It can be included or excluded with the dip-switch or via software, the ramp can be programmed via software)

- Rotation radius 360° or 500° (selectable by dip-switch), 500° is the default value, in this case there is 70° of extra travel on both sides. The rotation radius can be programmed by software, between 1° and 500° by resetting the start and end values)

FUNCTIONS CONFIGURABLE OR PROGRAMMABLE ONLY VIA RS32:

Revers delay (prevents immediate reversal, 3 seconds by default, programmable)

PST2051D

Data sheet

Guy
Pro.Si.Tel
Compatible brand
Generico
Sub-Categories
Pro.Si.Tel

Specific References

ean13
0644730924887
