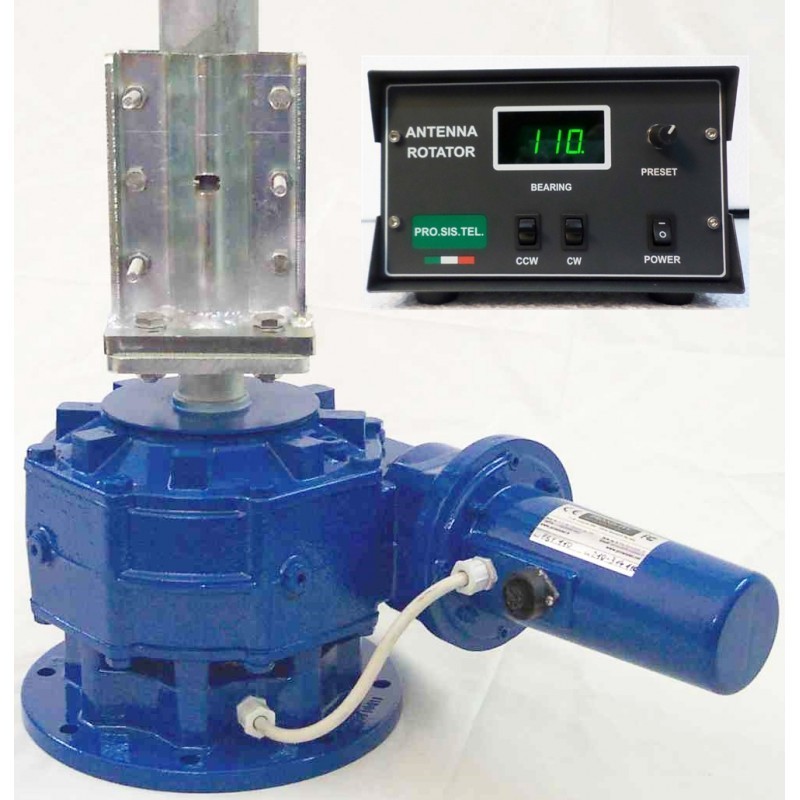

Prosistel PST110-PRO-HP Professional rotor for large antenna systems

PST110-PRO

ASK FOR CONFIRMATION ON WHAT THE DELIVERY TIMES ARE

Rotor antenna suitable for extra large loads

Technology worm screw irreversible to the torsion of the mast.

Power and resistance superior to any other rotor on the market

Motor in direct current at 24VDC.

Soft start and soft stop with programmable ramp speed.

Control box completely configurable and controllable from computer via USB

Two years warranty

New control box D

The new control box completely configurable and controllable by computer via RS232.

THE FRONT PANEL ED MANUAL COMMANDS:

On the front panel in addition to the ignition, we find the two paddle buttons CW and CCW and the preset knob.

A few words about the preset:

It is made with a rotary encoder, allows you to preset any direction in the field 0-360 degrees simply by rotating the relevant knob.

At the same time as you turn the knob. the display automatically shows the position of the preset. Once the desired one has been reached, stopping the rotation of the preset, after 3 seconds the rotor starts automatically and the display returns to showing the actual position of the rotor until the preset position is reached. In the 3 seconds between the setting of the preset and its execution, you can change or reset a new location. The preset command is undoable in any time simply by pressing one of the paddles for an instant.

Functions and performances: (the list refers to the most important functions and is accompanied from a brief description)

CONFIGURABLE FUNCTIONS MANUALLY AND VIA RS232 :

- Stop in the North - Stop in the South (Stop at South is default, it can be changed with the dip-switch or via software)

- Soft Start and Soft Stop (Departure and stopping occur gradually with a 10 degree ramp. It can be included or excluded with the dip-switch or via software, the ramp can be programmed via software)

- Rotation radius 360° or 500° (selectable by dip-switch), 500° is the default value, in this case there is 70° of extra travel on both sides. The radius of rotation can be programmed by software, between 1° and 500° by resetting the start and end values)

CONFIGURABLE FUNCTIONS OR PROGRAMMABLE ONLY VIA RS32:

Revers delay (prevents reversal immediate start, 3 seconds by default, programmable)
