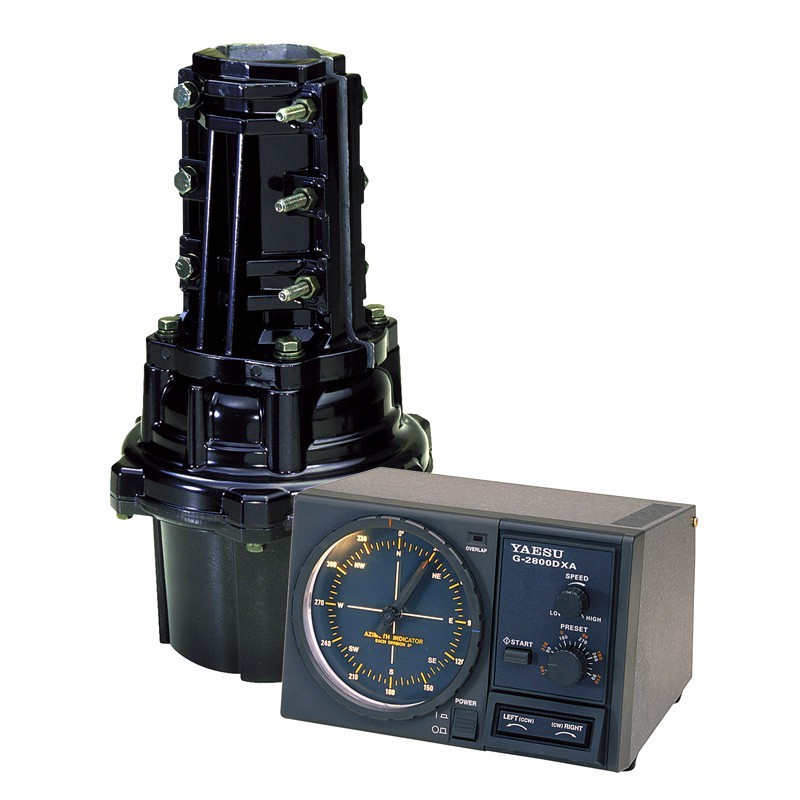

Yaesu G-2800 DXC Antenna Rotor with Connector Kit

For very heavy duty uses
Media Size: 48~63 f

Accessories supplied :
Connector Kit

For the widest choice of rotors offered by the main radio equipment manufacturers, contact Yaesu. With five different models to choose from, we provide rotors and controllers for VHF/UHF antennas for light applications, large HF units and azimuth-elevation combinations for satellite applications. This is an exceptional assortment capable of satisfying practically any need. All Yaesu rotors are housed in waterproof, stamped aluminum, permanently lubricated enclosures to provide years of quiet operation. Yaesu rotors feature a quiet and reliable reduction gear braking system.

Functions :
• 450° tuning radius on azimuth models
• 117V, 220V, and 220V (CE)
• User selectable North or South centering
• Models with “DXC/DXA” include variable speed and preset position controls
• Silent reduction gear braking system
• Fits most shelves made in the USA

Recommended application : Heavy-duty applications, recommended for mounting inside the tower
Wind load : 3 m²
K factor* ³ : 950
Stationary torque : 25,000 kg/cm
Rotating torque : 2,500-800 kg/cm
Max. vertical load : 300 kg
Max. intermittent vertical load : 1,200 kg
Clearance : 0.2°
Media Size : 48~63 f
360° rotation time : 50~120 sec
Elevation time to 180° : N/A
Arm diameter : N/A
Direct command from Yaesu HF radio : O
PC Command* ⁵ : O
Rotor diameter x height : 200 x 345
Weight : 6.5 kg
Cable prescription : 6
AC supply voltage : DXC:220 V (CE) DXA: 117/220 V
