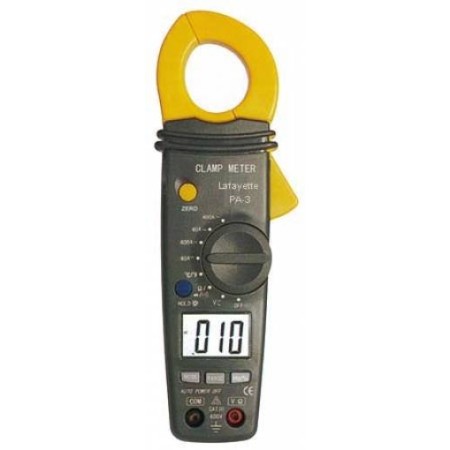

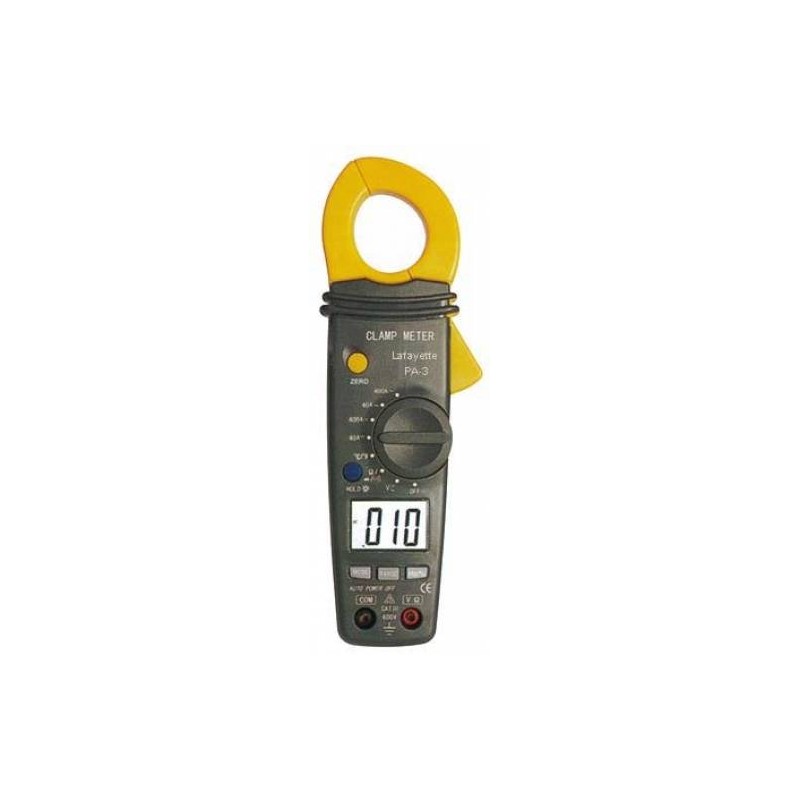

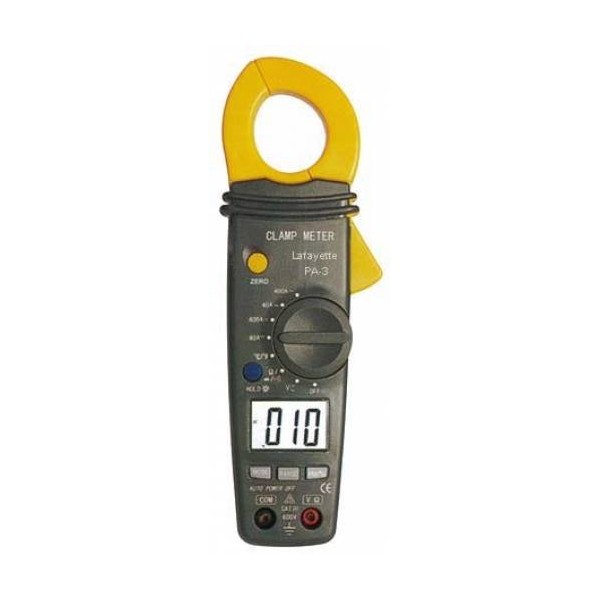

PA-3 LAFAYETTE - AC/DC DIGITAL CLAMP METER 4000 COUNTS

Ref: PA-3

Last items in stock
€127.70
Tax included
rating No review at the moment
Usually ships within 24 hours.

Quantity

Guarantee safe & secure checkout

PA-3

AC/DC DIGITAL CLAMP AMPEROMETER 4000 COUNTS

height=

BACKLIT LCD DISPLAY

Designed to check for current, voltage and resistance loads, comfortable to hold and easy to read.

Complies with EMC & LVD EN61010-1 CAT III 600V standards .

  • Data retention
  • Large 4000 counts backlit LCD display
  • Electronic overload protection
  • Continuity buzzer and diode control
  • Zero function
  • Auto-off
  • Low battery indication
  • AC/DC current
  • Dimensions: 205 x 70 x 37 mm
  • Weight: 200 gr.

height=

TECHNICAL SPECIFICATIONS

Function

Max. range

Precision

AC current

400A

±(3.0%+4d)

DC current

400A

±(2.5%+5d)

AC voltage

600V

±(1.5%+2d)

DC voltage

600V

± (0.5%+1d)

Resistence

20MOhm

±(3.0%+5d)

Capacity

100 µF

±(2.5%+5d)

Frequency

150MHz

±(1.2%+2d)

Temperature

1000°C/1832°F

±(3.0%+5d)

Continuity

100Ohm buzzer

Diode

Test current 0.3mA
Open circuit voltage 1.5V

PA-3

Data sheet

Guy
Pinze amperometriche
Compatible brand
Generico
Sub-Categories
Pinze amperometriche

Specific References

ean13
8032182253990
