Ref: HEM25
Immediately availableHEM-25

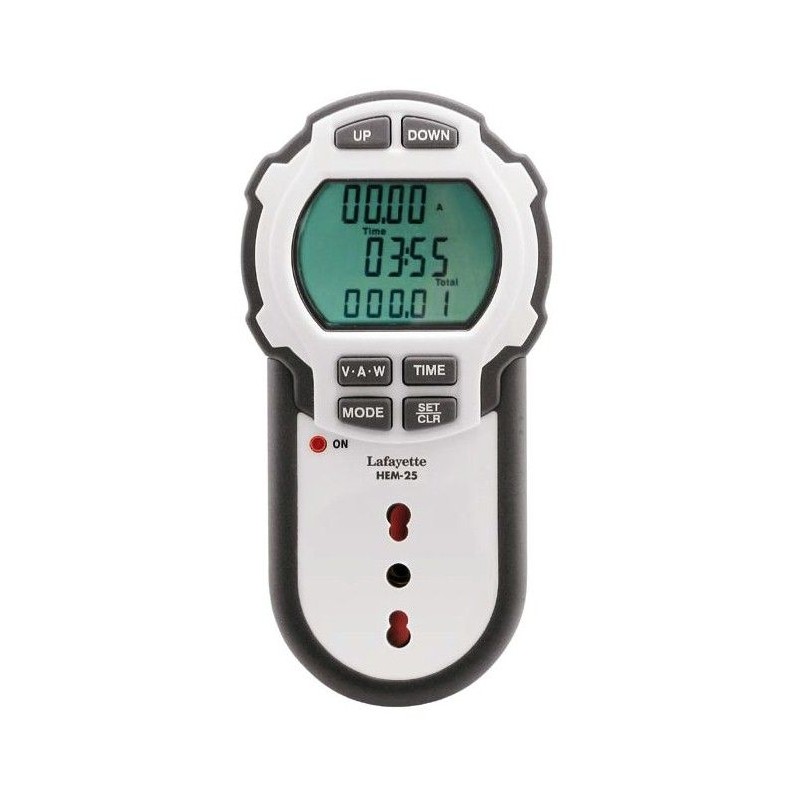

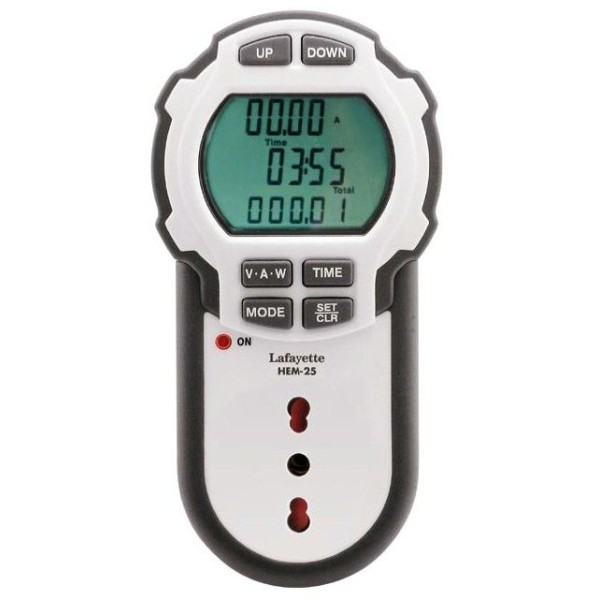

ENERGY METER
The HEM-25 ensures transparency in energy consumption, the measurements carried out with this instrument will bring many surprises!
You will have to insert the HEM-25 into the power socket and the plug of the product under examination into the HEM-25 socket and you will have an immediate measurement of electricity consumption.
This will allow you to reduce energy consumption and at the same time save money.
PROPERTY :
- Monitoring of voltage, current and active power with recording of maximum values;
- Display of consumed energy values and energy costs;
- Cost forecast.
Technical specifications | |
Diet: | 230 Vac / 50Hz |
Max connectable current: | 3000W (3kW) |
Max current: | 13A |
Entry/Exit: | With protected socket |
Overloaded display: | At around 3000W the display flashes. Warning: a load exceeding 3000W irreversibly damages the appliance. |
Tolerance: | ±1% ±1W typical (max. ±2.5 and ±2W for measurements up to 2500W; ±4% for measurements above 2500W) |
Operating temperature: | From 10°C to 40°C |
Batteries: | Two 1.5V AAA batteries |
Automatic shutdown: | When not connected to the 230V AC power supply, the appliance switches off automatically after 5 seconds |
Programming range: | 0.01 to 99.99 |
Measurable voltage: | 1V |
Measurable current: | 0.01A |
Active and apparent power: | 1W |
Energy (kWh) / cost: | 0.01 |
Dimensions: | 140x72x43 mm approximately |
Weight: | 214 grams |
