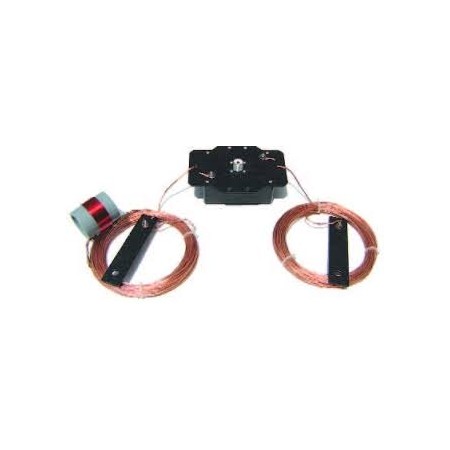

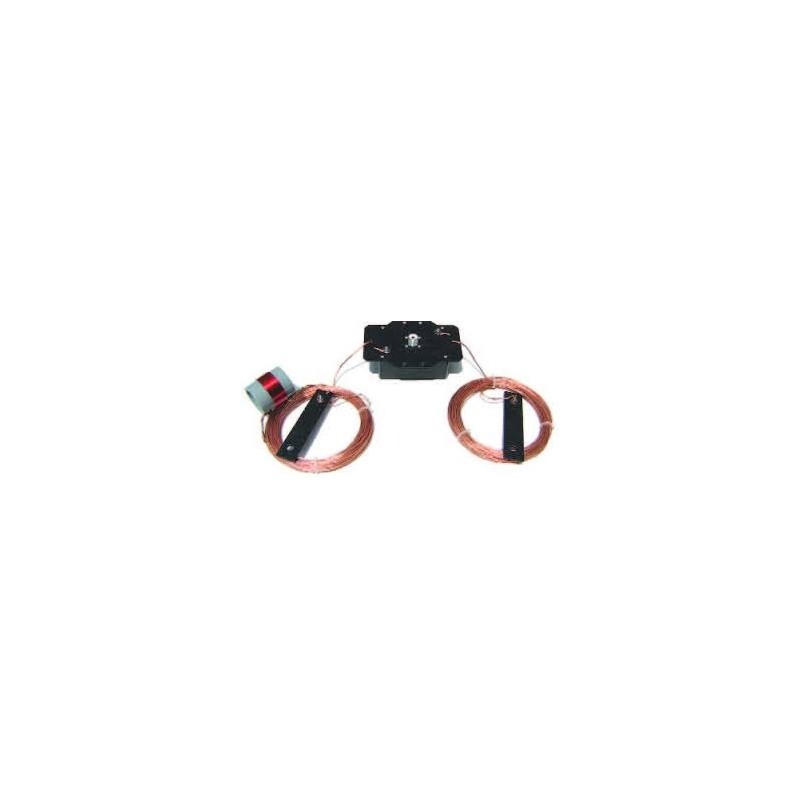

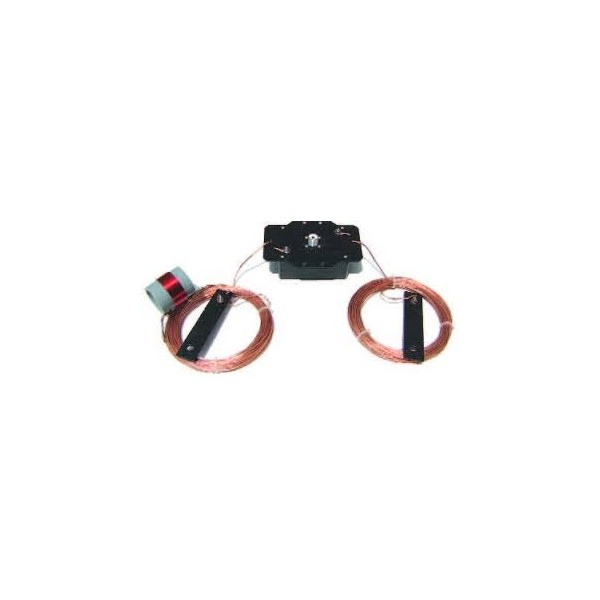

MFJ-2014 75/40 METER, DUAL-BAND OCFD DIPOLE

Ref: MFJ2014

Last items in stock
€181.50
Tax included
rating No review at the moment
Usually ships within 24 hours.

Quantity

Guarantee safe & secure checkout

You can purchase this product in installments with Sella Personal Credit. Click here for more information.


2014

Power-Lite™ for 60 and 30 meters, handles maximum legal limit 1500 watts PEP CW/SSB. Replaces the old 75-Meter dipole and adds 40 Meter coverage with up to 9-dBi of power increase! Rugged 122 ft. Long. Foreign gone and 7 MHz has never been better!


Designed from the ground up, K1BQT's innovative new antennas break traditional OCFD design barriers to provide the widest bandwidth, lowest SWR, solid gain, and full-frequency agility without a tuner!

How good are they? W4ILV bought a MFJ-2012 and wrote EHAM. Best wire antenna I've ever used” We think you'll agree, and here's why:

Maximum Efficiency: Full size radiator with MatchmakerTM power block that tests over 98 percent efficient. All your power is radiated!

Best match: NEC-modeled element provides the same feed-point impedance on each band. Innovative new transformer designs yield exact ratio needed for a great match.

Super Balun: OCFDs need good baluns to block power line radiation. The built-in two-wire Guanella current choke has over 30 dB of common mode rejection on all bands. Kills pattern irregularities, RFI, noise.

Real Gain: Provides a 6-dBi ground-reinforced dipole pattern on the fundamental and a 9-dBi full-wave cloverleaf pattern on the second harmonic. You get an incredible (up to) 11.5 dBi peak gain on the higher bands.

Height Compensation: Element feedpoints are compensated for typical mounting height, so you always get lowest SWR possible in all bands!

Frequency Compensation: Normally, an OCFD cutoff for 3.85 MHz resonates on 7.7 MHz. Ourunique OCFD design resonates mid-band on both 75/40!

Built to last: UV-resistant marine-ABS feedblocks, steel hardware, and Teflon® SO-238 connector ensure maximum protection from the environment.

Easy to install: Installs in flat-top or inverted-Vset-up, feedblock has attachment points for tower or supporting masts. Suggested height is 35-70 feet.

Low Cost: Outperforms multi-band vertical antennas by a wide margin for an incredible fraction of the cost!
