Prosistel PST-RD4017S Loaded and modular rotary dipole

Ref: PSTRD4017S

Last items in stock
€223.00
Tax included
rating No review at the moment
Usually ships within 24 hours.

Quantity

Guarantee safe & secure checkout

You can purchase this product in installments with Sella Personal Credit. Click here for more information.


PST-RD4017S

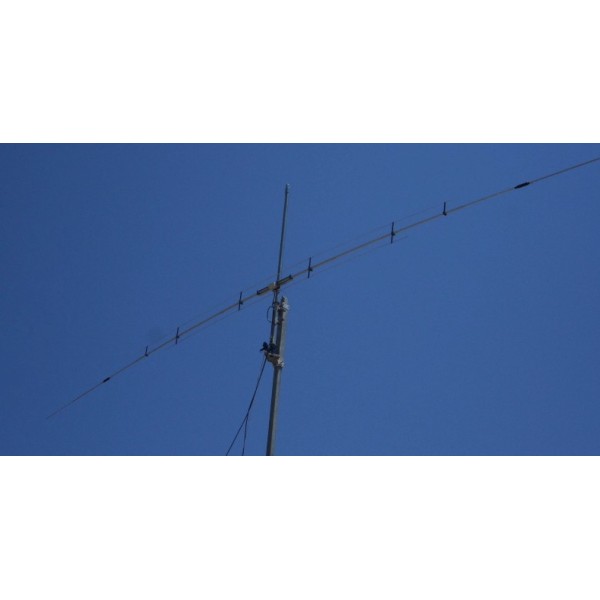

This loaded rotary dipole, in the basic version, actually creates 3 antennas in one. It is defined as modular as it is easily expandable with special kits, in fact it is possible to add one or two more bands, with full size elements, to be chosen between 15 - 12 and 10m. For its construction, quality materials were chosen, in particular the coil supports are made of fiberglass and the windings are made of 2mm copper wire. This configuration allows the use of powers up to 2KW pep, well above the legal limit. Despite being loaded and with a rotation radius of just over 6m, it has a 40m bandwidth of approximately 150Kc. Each band has adjustments to refine the eventual tuning point. In the 6m band, the antenna has a minimum VSWR of approximately 1:1.5 for an optimal bandwidth of approximately 500Kc from 50 to 50.5MhZ. For optimal operation, it is recommended to mount it at a height of at least 4-5 meters from the ground.

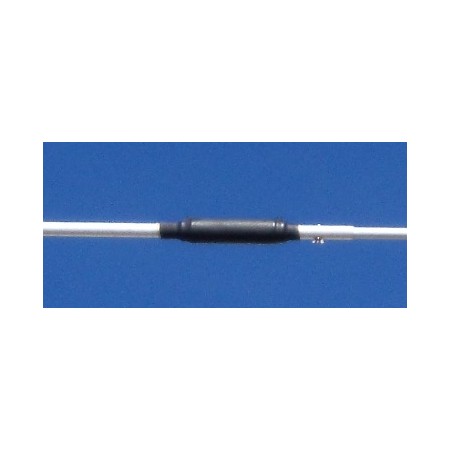

External detail of the charges

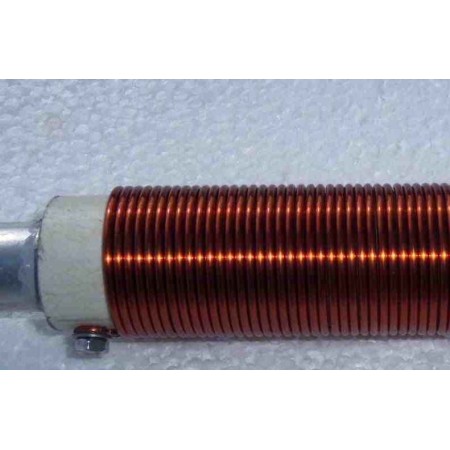

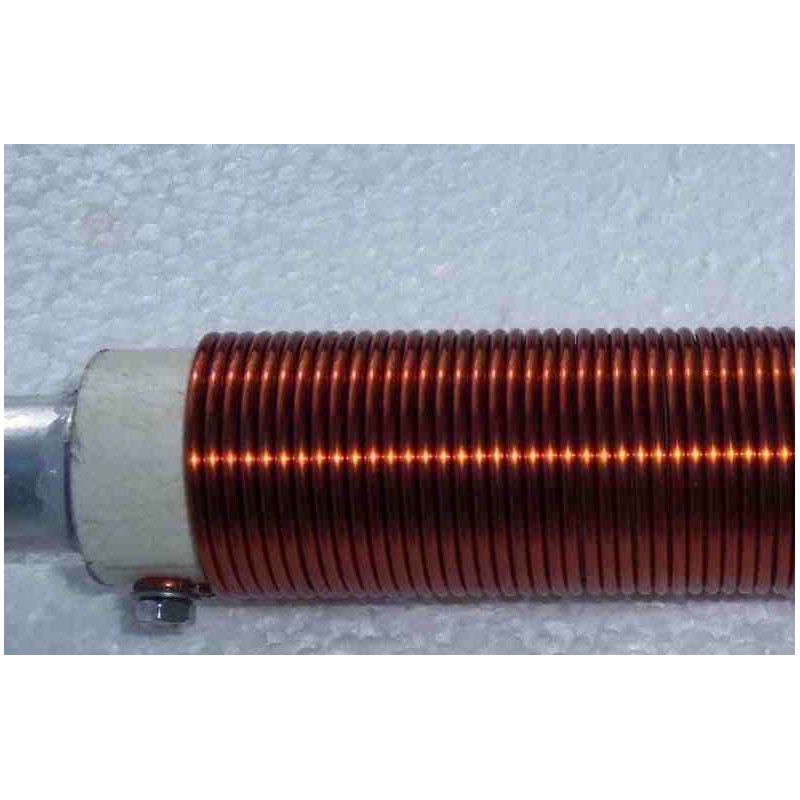

Internal detail of the charges

GENERAL SPECIFICATIONS:

- Gain: 0 dBd

- Impedance: 50 ohm

- Front-side: approximately 15 dB

- ROS: see graph

- 1-1 balun recommended

- Length: approximately 12.8m

- Rotation radius: approximately 6.4m

- Weight: approximately 8 kg

- Accepts masts from: 42 to 50mm (60mm on request)

- Material: ERGAL plate - AL6060T6 tubes, stainless steel bolts

GRAPH OF ROS AND RETURN LOSS CURVES IN THE BAND FROM 7 TO 51MhZ
