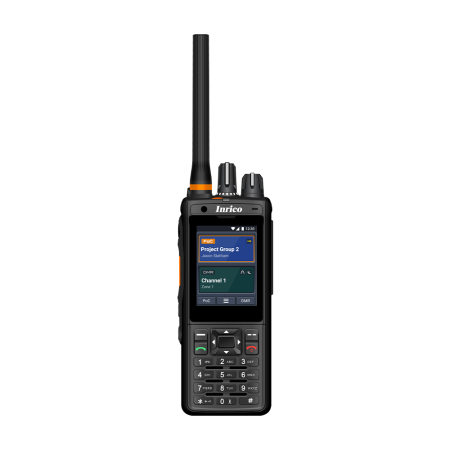

Inrico IRC380 DMR and PoC radio transceiver in a single device

You have the option to request it with various pre-installed applications (Paid option)

• EchoLink: EchoLink is a freely distributed computer-based amateur radio system that allows amateur radio operators to communicate with other amateur radio operators using Voice over IP technology over the Internet for at least part of the path between them.

• Zello: Free platform with the possibility of creating open or closed (private) communication channels (rooms)


• CB Talk: Well-known platform known by CBs all over the world created by Midland

• DroidStar: Application reserved for radio amateurs to be able to transmit on the DMR Italia or Braindmeinster network with the possibility of choosing the favorite TG

• Easy PTT: Italian platform (in Italian language) for professional uses, in addition to creating work groups and managing private calls, it allows both the geolocation of fleets and staff. It has a messaging service, including audio and video. Manages lone workers with alarms in case of illness or need. (www.easyptt.it)

• PRXTX: Application that allows you to listen to the HF bands in steaming or control an HF device via Bluetooth CAT.

• Kiwi: Platform of HF receivers spread all over the world (several also in Italy)

		Dual mode functionality Its dual-mode ability to access PMR and cellular networks makes it a great choice for mission-critical and enterprise users in extreme scenarios. Increase on-site efficiency with a simple press on the PTT; the call is transmitted simultaneously on the public and private networks with double PTT button.
Sturdy and durable Ruggedly built with MIL-STD-810H compliance and IP68 protection, it thrives in extreme conditions. The one-button toolbox design, water-resistant keypad and internally reinforced antenna make it easy to use and durable.

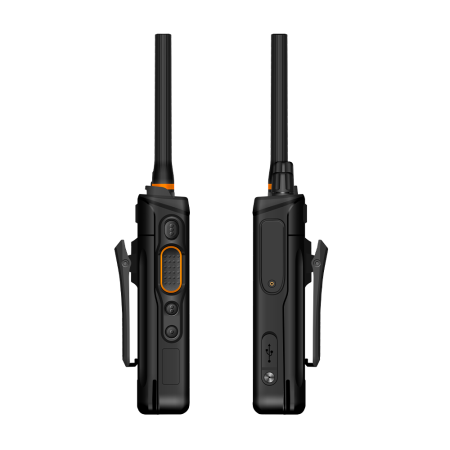

		Better ease of use The IRC380 goes the extra mile with a distinctive design of dual PTT buttons that enable simultaneous calls on the public and private network with a single press of the PTT. Its ergonomic design with front-facing NFC for quick one-handed stamping patrols and one-key toolbox for customized shortcut buttons offer great ease and flexibility of operation.
Large removable battery Its removable 3100mAh (standard) and 4000mAh (optional) battery is designed for demanding jobs, enabling 1000 hours of recording, intensive PTT usage for an entire shift, and power-intensive tasks such as video recording and conferencing.
SUITABLE SCENE Suitable for public safety, municipality, transportation, property management, hotels, warehouses, industry, etc. The application of allows users to work more efficiently, quickly and effectively. ASK US FOR MORE INFORMATION www.easyptt.it info@easyptt.it

ODM SERVICE DISPATCH SYSTEM

SPECIFICATIONS

Frequencies

2G: B2/B3/B5/B8

3G:B1/B2/B4/B5/B8

4G-FDD:B1/B2/B3/B4/B5/B7/B8/B12/B17/B20/B26/B28/B66

4G-TDD:B38/B39/B40/41

Wifi

IEEE 802.11 a/b/g/n/ac/k/v/r, 2.4G/5G

Bluetooth

BLE5.0

NFC

Support​

Navigation

GPS, GLONASS, AGP

Operating system

Android 10

DMR

Frequency range

UHF: 400-480 MHz, VHF: 136-174 MHz

Channel capacity

2048

Channel spacing

25KHz/12.5KHz

Output power

UHF: High Power 4W/Low Power 1W VHF: 5W

Receiver sensitivity

≤-123dB

DMR encryption

ARC4/AES128/AES25

License Agreement

Level Ⅱ

Hardware

RAM+ROM

2GB+16GB

Expand memory

up to 32GB

Card slot

Dual SIM card + TF card

Interface

M6

OTG

Support, via M6 interface

Screen

2.4 inches, 480 x 640

Camera

5.0MP front camera; 13.0MP rear camera, 120° ultra wide angle

Speaker

Waterproof speaker Ø36mm, 8Ω 3W

Microphone

Master microphone+slave microphone+noise canceling microphone

Drums

Removable, 3100mAh (standard), 4000mAh (optional), 7.6V

Dimension

Slim Battery: 162.3 x 61 x 34.5 mm (without belt clip and antenna)

Thick Battery: 162.3 x 61 x 38 mm (without belt clip and antenna)

Working temperature

-20℃ ~ 60℃

Storage temperature

-40℃ ~ 85℃

Certification

Ingress protection

IP68

Drip

1.5 meters

Certification

CE/FCC/MIL-STD-810H/GMS
