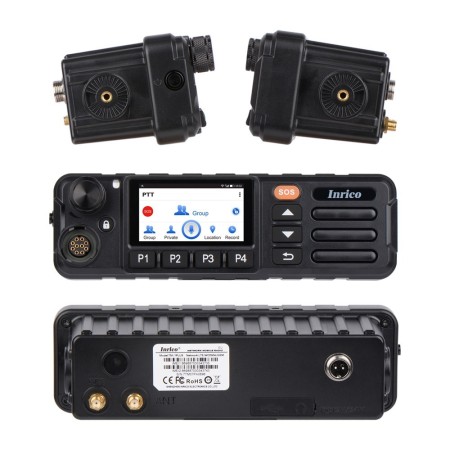

Inrico TM-7PLUS PoC Radio LTE Vehicle Transceiver Zello, Echolink, DMR DroidStar

Inrico TM7 Plus PoC Radio

Revolutionary PTT communication system via LTE, no more range (distance) limitation, you can communicate between PoC radios anywhere in the globe as long as you are connected to the LTE, 4G or WIFI network. No ministerial license is required.

Innovative PoC radio for 4G/LTE mobile network. Great for amateur radio use with the new IRN platform, for Zello, Team Speak 3 and Echolink via 3G, 4G or WiFi. And it also works as a WiFi hotspot!

This version of the network radio is fully compatible with the International Radio Network (IRN).

To transmit on Ham repeaters (via echolink or DroidStar) you must have a valid amateur radio license. To use this radio on IRN, you need to follow these steps and then configure the audio settings. On the RECORD tab, select "Mic" and you're good to go.

You have the option to request it with various pre-installed applications (Paid option)

• EchoLink: EchoLink is a freely distributed computer-based amateur radio system that allows amateur radio operators to communicate with other amateur radio operators using Voice over IP technology over the Internet for at least part of the path between them.

• Zello: Free platform with the possibility of creating open or closed (private) communication channels (rooms)


• CB Talk: Well-known platform known by CBs all over the world created by Midland

• DroidStar: Application reserved for radio amateurs to be able to transmit on the DMR Italia or Braindmeinster network with the possibility of choosing the favorite TG

• Easy PTT: Italian platform (in Italian language) for professional uses, in addition to creating work groups and managing private calls, it allows both the geolocation of fleets and staff. It has a messaging service, including audio and video. Manages lone workers with alarms in case of illness or need. (www.easyptt.it)

• PRXTX: Application that allows you to listen to the HF bands in steaming or control an HF device via Bluetooth CAT.

• Kiwi: Platform of HF receivers spread all over the world (several also in Italy)

Characteristics

• Front speaker

• Supports Wi-Fi, Bluetooth
• Support SOS and lone worker emergency calls
• Precise geolocation on map with GPS positioning
• Built to military quality standards
• Capable of making and receiving calls like a normal cell phone

SUITABLE SCENE

Suitable for public safety, municipality, transportation, property management, hotels, warehouses, industry, etc.

The application of allows users to work more efficiently, quickly and effectively.

ASK US FOR MORE INFORMATION

www.easyptt.it

info@easyptt.it

ODM SERVICE DISPATCH SYSTEM

Frequency

Model

TM-7Plus

EU version

GSM: B2/B3/B5/B8,

WCDMA: B1/B2/B5/B8

FDD-LTE: B1/B3/B5/B7/B8/B20

TDD-LTE:B38/B40/B41

US version

GSM:B5/B2

WCDMA: B1/B2/B5/B8

FDD-LTE: B1/B2/B4/B5/B7/B12/B13/B17/B28A/B28B

Maximum Transmission Power

32.5db

Receive Sensitivity

-107dBm

Wi-Fi

IEEE 802.11/b/g/n(2.4G?5G)

Bluetooth

4.0 & BLE

Locations

GPS, AGPS

Hardware

CPU

MT6737 ,1.2GHz

Memory

1GB(RAM)+ 8GB(ROM)

TF Card

Support, up to 128G

SIM card slot

Dual SIM card, TF card

USB Ports

Micro USB 2.0

Screen size

IPS 2.45" G + F touch screen

Camera

Optional

Speaker

3558 Speaker 5W

Software

Operation System

Android 7.0

Physical

Dimension (H*W*D)

58 x 188 x 92mm

Weight

˜425g

Working Temperature

-20°C ~ 60°C

Storage Temperature

-40°C ~ 80°C

Certifications

Protection Level

IP54

Certificate

CE/FCC/ROHS
