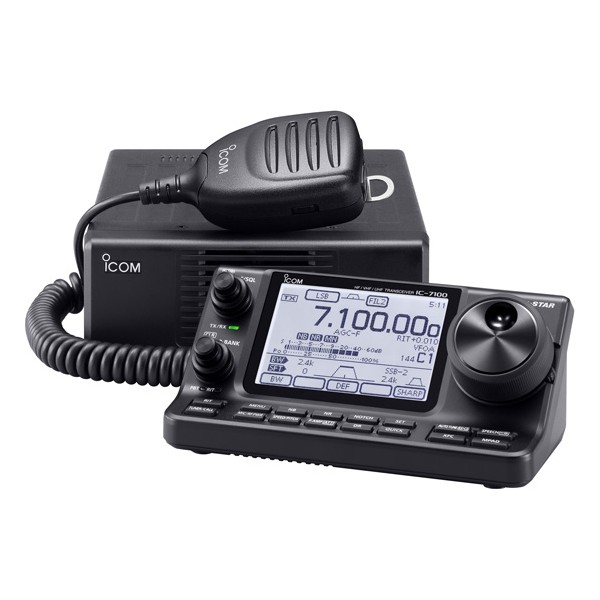

Icom IC-7100 HF/VHF/UHF D-STAR ALL MODE
Ref: IC7100
€1,357.00
Tax included
Read the review
Usually ships within 24 hours.
Read the review
Average rating:
5/5
Number of reviews: 1
IC-7100
HF/VHF/UHF ALL MODE TRANSCEIVER
Click here for Firmware update
- Intuitive interface with touch-sensitive screen: With the sensitive screen you have an innovative, quick and easy control of the functions and management of the memories.
- Inclined controller: The control unit is inclined, to face directly towards the operator, to improve screen reading. The efficient built-in oval speaker has a clear acoustic output. An external speaker or electronic keyer can be connected to the control unit.
- DV, D-STAR mode operation: With the IC-7100 you can establish low-speed digital voice and data communications in DV D-STAR mode*. Connecting D-STAR repeaters via the Internet allows you to create long-distance connections with digital modulation that makes the audio clear and understandable.
*Digital Smart Technology for Amateur Radio
- IF DSP Capability: The latest 32-bit floating point DSP technology supports many digital signal processes such as IF filter, double PBT, manual notch filter. Obviously this advanced digital process operates on all amateur bands, from HF to 70 cm.
- Suction cup base mounting: optional, MBF-1 With the MBF-1 base, which attaches to your vehicle using a suction cup, you have an accessory that facilitates installation. You will also need the MBA-1 Mobile Installation Bracket.
OTHER FEATURES:
- SD card reader, to store voice and clone data.
- Dual DSP integrated circuit, for versatile digital process performance.
- Built-in RTTY demodulator and decoder.
- Graphical SWR (ROS) screen.
- DSP controlled RF audio compressor.
- 505 memory channels.
- Audio recorder with playback functions.
- Coverage 70 – 70.5 MHz, with 50 W of RF power output (varies depending on version).
- High frequency stability: ±0.5ppm.
- Optional RS-BA1 IP remote control program available.
- Supplied accessories provided
Palm microphone; DC power cable; Electronic key connector; Spare fuses; Vertical telegraph key; ACC cable; Connection cable for the controller.
TECHNICAL DATA SHEET : All mode HF/VHF/UHF base transceiver with touch screen
|
TECHNICAL FEATURES |
||||||||||||||||||||||||||||||||
| GENERAL | ||||||||||||||||||||||||||||||||
| Receiver: | 0.030 – 199,999 *1 / 400,000 – 470,000 *1 | |||||||||||||||||||||||||||||||
| Transmitter: | 1,830 – 1,850 / 3,500 – 3,800 / 7,000 – 7,200 / 10,100 – 10,150 / 14,000 – 14,350 / 18,068 – 18,168 / 21,000 – 21,450 / 24,890 – 24,990 / 28,000 – 29,700 / 50,000 – 51,000 70.00 - 70,500 *2 / 144,000 – 146,000 / 430,000 - 440,000 |
|||||||||||||||||||||||||||||||
| *1 Not guaranteed on some frequency bands. *2 Only 70,100 / 70,200 / 70,300 ±25W EIRP. |
||||||||||||||||||||||||||||||||
| Way: | USB, LSB, CW, RTTY, AM, FM, WFM (Rx only) | |||||||||||||||||||||||||||||||
| Memory channels: | 505 (495 normal, 4 ringing, 6 scan limit) 700 (D-STAR repeater channels) |
|||||||||||||||||||||||||||||||
| Antenna connector: | SO-239 x 2 (one for HF / 50MHz bands the other for VHF, 50 Ohm) | |||||||||||||||||||||||||||||||
| Operating temperature: | from -10 °C to +60 °C | |||||||||||||||||||||||||||||||
| Frequency stability: | within ±0.5 ppm (+0 °C to +50 °C) | |||||||||||||||||||||||||||||||
|
Diet: |
13.8 VDC ±15% | |||||||||||||||||||||||||||||||
| Absorption (@13.8 Vdc): |
Max. Tx Power: 22A Rx audio max. / Standby: 1.5A/1.2A |
|||||||||||||||||||||||||||||||
| Dimensions (W×H×D, protrusions not included): |
RF unit 167 × 58 × 225 mm controller 165 × 64 × 78.5 mm |
|||||||||||||||||||||||||||||||
| Weight (approx.): | RF unit 2.3kg / controller 0.5kg | |||||||||||||||||||||||||||||||
| TRANSMITTER | ||||||||||||||||||||||||||||||||
| Output power (@ 13.8 Vdc): |
SSB/CW/RTTY/FM/DV | (HF/50MHz) 2-100W | ||||||||||||||||||||||||||||||
| AM | (HF/50MHz) 1-40W | |||||||||||||||||||||||||||||||
| SSB/CW/RTTY/FM/DV | (70 * /144MHz) 2-50W | |||||||||||||||||||||||||||||||
| SSB/CW/RTTY/FM/DV | (430/440MHz) 1-35W | |||||||||||||||||||||||||||||||
| Spurious emissions: | < –50 dB (HF bands) | |||||||||||||||||||||||||||||||
| < –63dB (50 MHz) | ||||||||||||||||||||||||||||||||
| < –60dB (70/144 / 430 MHz) | ||||||||||||||||||||||||||||||||
| Carrier Suppression: | > 50 dB | |||||||||||||||||||||||||||||||
| Band suppression unwanted side: |
> 50 dB | |||||||||||||||||||||||||||||||
| RECEIVER | ||||||||||||||||||||||||||||||||
| Intermediate frequencies: | SSB/CW/AM/FM/WFM | 124.487 MHz, 455 kHz, 36 kHz 134.732 MHz, 10.700 MHz |
||||||||||||||||||||||||||||||
| Sensitivity: | ||||||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||||||
| Selectivity: | ||||||||||||||||||||||||||||||||
|
Beyond |
Less than |
|||||||||||||||||||||||||||||||
| SSB (2.4 kHz bandwidth, narrow) |
2.4kHz/-6dB |
3.6kHz/-60dB |
||||||||||||||||||||||||||||||
| CW (500 Hz bandwidth, narrow) |
500Hz/-6dB |
900Hz/-60dB |
||||||||||||||||||||||||||||||
| RTTY (bandwidth 350 Hz) |
360Hz/-6dB |
650Hz/-60dB |
||||||||||||||||||||||||||||||
| AM (bandwidth 6 kHz) |
6.0kHz/-6dB |
15kHz/-60dB |
||||||||||||||||||||||||||||||
| FM (15 kHz bandwidth) |
12kHz/-6dB |
20kHz/-60dB |
||||||||||||||||||||||||||||||
| DV (12.5 kHz spacing) |
-50dB |
|||||||||||||||||||||||||||||||
| Spurious rejection ratio and images: |
> 70 dB (HF bands) >65dB (50/144/430 MHz) (except 144 MHz IF point) |
|||||||||||||||||||||||||||||||
| Audio power output @ 13.8Vdc: | > 2.0 W (10% distortion, 8 Ohm load) | |||||||||||||||||||||||||||||||
