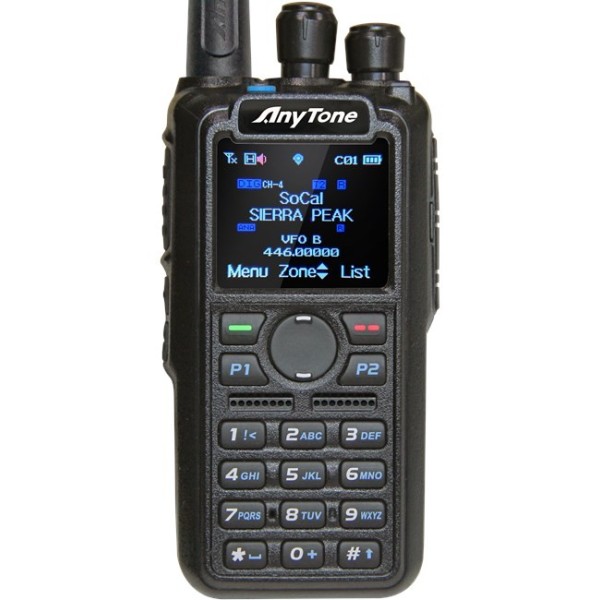

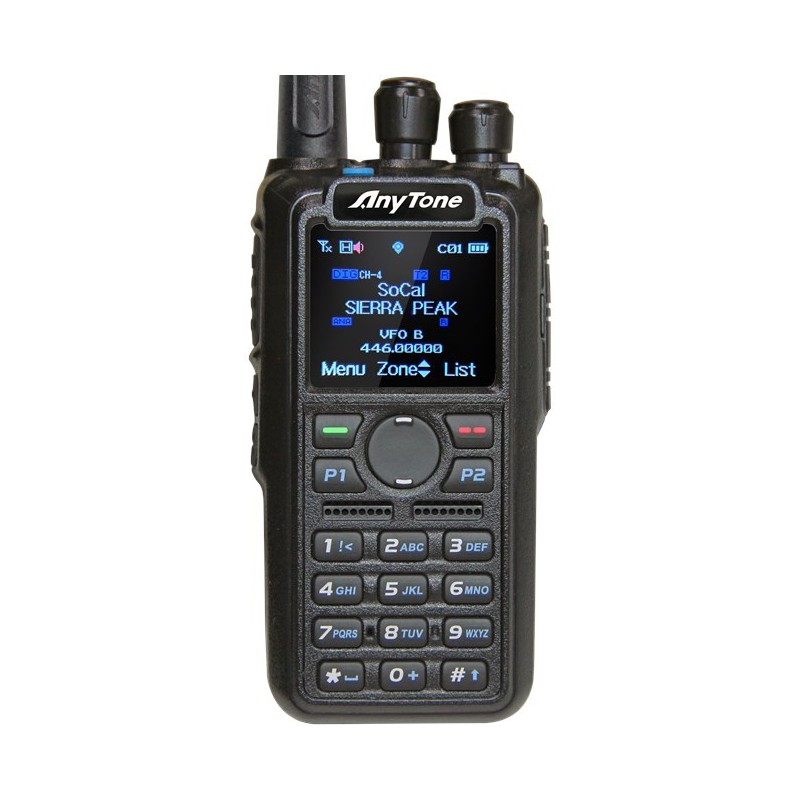

ANYTONE AT-D878UVII PLUS - Portable VHF/UHF Transceiver with APRS and Bluetooth

PRODUCT WITH 2 YEAR ITALIAN WARRANTY

Anytone AT-D878UVII PLUS

High autonomy portable RTX DMR with bluetooth, GPS, APRS-A and APRS-D with display coloured

Like the Anytone AT-D878UV Plus, but with function APRS® with RX and TX full display in both Analog and Digital APRS supported from GPS.

Anytone AT-D878UVIIPLUS is a compact and resistant IP54 handheld portable radio digital DMR VHF and UHF (compatible with MOTOTRBO Tier 1 and 2), which also supports the traditional ANALOG FM.

* Roaming function, Bluetooth interface installed as standard, recorder voice over 500 hours, more memory for more new functions in the future, unit Bluetooth remote PTT with velcro fastening strap, to allow use of the radio even in HANDS-FREE systems already present on cars....

Like the previous 878 PLUS, the new D878UVII PLUS offers a real possibility to operate in VFO and to add channels and memorize their characteristics also without the use of a PC.

Indeed, a radio operator can set a frequency and transmit the parameters as usual, instead of only accessing pre-programmed memory channels.

The Anytone AT-D878UVII PLUS is also equipped with memory channels, 4000 per accuracy. The storable Talk-Groups have been expanded, now 10,000 and 500,000 storable contacts in the address book.

A further difference with other DMR devices is the ability to edit most (not all) parameters on the device. So you don't have to rely on computer programming for every little change. However, the settings for all parameters (e.g. DMR ID) are only possible with a corresponding PC software (free).

The feature set of the AT-D878UVII PLUS is very broad. 4000 different channels can be stored (digital and analogue, mixed operations also possible); 10000 conversation groups are configurable and the memory can hold up to 500,000 contacts . In analog operation, functions such as DTMF, CTCSS are supported and DCS, as well as coding with two-tone and five-tone signals. It's available even a burst of tones of 1750 Hz. Five buttons on the radio can be Individually assigned with functions, so that each user can adjust the radio according to your personal preferences. The large 1.77 color display “It can be illuminated with different degrees of brightness and is easy to read even in sunlight. To save energy, the display turns off after a period of adjustable time.

Another feature worth highlighting is the option to store multiple DMR IDs. So it would be conceivable to use the device in both an environment professional company, and in the amateur radio sector with another ID for the band amateur radio.

So multiple family members share one device. The Anytone AT-D878UVII PLUS is equipped with a GPS receiver, position data can be transmitted via radio.

The transmit power can be set in 4 levels from a minimum of one at 6 watts (VHF) or 7 watts (UHF). The headphone/microphone jack is compatible with Kenwood or Wouxun. The antenna connection is a male SMA connector (reverse), so you can use optional antennas of any brand provided they are equipped with an SMA FEMALE connector.

THE BATTERY SUPPLIED IS THE HIGH AUTONOMY ONE WITH 3100 Ma/H

The programming cable is included in the delivery, the programming software must be downloaded (free of charge) from the manufacturer..

Features of Anytone AT-D878UVII PLUS

1.77" Color LC Screen

10-key keyboard, 5 freely programmable function keys

Dualband 2m/70cm (V/U, V/V, U/U)

Channel width selectable 12.5 / 25 kHz (analog) or fixed 12.5 kHz (DMR)

Digital: DMR (Tier I/II) and FM analog

WFM 87.5 – 108 MHz receiver

Up to 5 configurable DMR IDs

4000 memories, 10000 discussion groups, 500000 user list entries

250 usable zones (memory banks).

Display of the ID (call sign) of the opposite station

Two time slots can be set, all color codes are configurable

Output Power 1, 2.5, 5, 6 (UHF) / 7 (VHF) Watts

Automatic recognition of analog / digital mode

Monitor function: identifies TG and color code on DMR frequency

1750 Hz tone

Tone squelch CTCSS, DCS

Tone calling: DTMF, 2 tones, 5 tones

GPS receiver

Full APRS function (RX and TX) in digital and analogue

Recording and retransmission of received signals (DMR only)

VOX function

IP54 protected

Kenwood / Wouxun / Baofeng compatible accessories

Desktop charger with 12V power supply, can be easily used at the station or by car1 x

ANYTONE AT-D878UVII PLUS portable DMR transceiver

the package includes:

1 x ANYTONE AT-D878UVII PLUS Portable DMR Transceiver

1 x 144/430 Antenna

1 x Bluetooth remote PTT with velcro fastening strap

1 x USB Charging Cable for Remote PTT

1 x Li-Ion 7.4V 3100mAh battery

1 x Desktop Charger

1 x AC Adapter

1 x USB Programming Cable

1 x Belt Clip

1 x English Manual
