Ref: ic2730e
Immediately availableIC-2730E

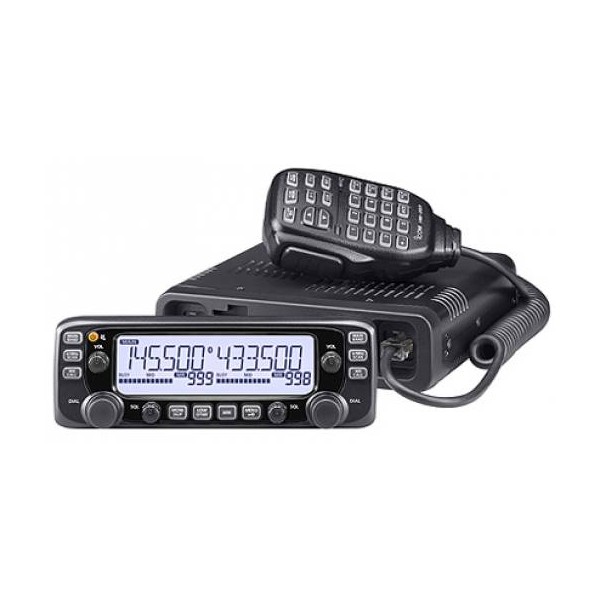

DUAL BAND VHF/UHF TRANSCEIVER WITH SEPARABLE FRONT PANEL
(optional suction cup MB1)
- Large backlit display;
- Easy mounting on a vehicle with the optional MBF-1 bracket (Optional MBA-5 bracket is required for the controller);
- Microphone for remote control HM-207;
- Possibility of simultaneous reception V / V, U / U;
- Independent controls for each band;
- Durable PA module offering 50W of output power for VHF and UHF bands;
- Large backlit display : Its size is 1.5 times larger than IC-2720H / E2725. The frequency indications become larger and the white backlight offers greater contrast;
- Easy vehicle mounting: The combination of the MBF-1 suction cup mounting base (optional) and the MBA-5 controller bracket (optional) offers easy adjustments for mobile operation. The large suction cup can be mounted on dashboards or flat surfaces and can be removed easily;
- Microphone for remote control: The supplied microphone, HM-207 allows you to control various settings of the radio. Backlit buttons help with low-light operation;
- Simultaneous receiving capability: The IC-2730E is a dual band transceiver, providing simultaneous VHF/VHF, UHF/UHF and also VHF/UHF receiving capability. A simple touch of a button allows you to change between the main (broadcast) band and sub band;
- Bracket for fixing the controller with the main unit: With this bracket, the controller can be connected to the main unit. The microphone connector is mounted on both the controller and the main unit, allows you to connect the microphone to one two units;
- Independent controls for each band: The main knobs, volume, squelch and primary buttons are symmetrically arranged. Various operations including frequency tuning can be done smoothly and without complications;
- VS-3 Bluetooth® Headset (optional): Can wirelessly control IC-2730E with three programmable buttons and PTT and provides VOX (hands-free communication) operation.
* Optional UT-133 Bluetooth® unit must be installed in the IC-2730E.
OTHER CHARACTERISTICS:
- Wide frequency coverage, 118-136.975MHz (AM / AM-N), 137-174MHz and 375-550MHz (FM / FM-N) (RX only);
- 50W output power on both VHF and UHF bands;
- 104 DTCS and 50 CTCSS tone codes;
- Split tone function allows you to encode and decode different CTCSS/DTCS tones;
- 1000 memory channels, 2 call channels and 50 scan limits with 8 character channel name;
- Free download of PC programming software, CS-2730;
- Versatile scanning capability;
- Delay squelch and attenuator squelch;
- Sub band with automatic mute function;
- Sub band with beep function if busy;
- Automatic shutdown ;
- Time-out-timer;
- 16 automatically dialing DTMF memories;
- CI-V remote control capability (via OPC-478UC);
- Supplied complete with: HM-207 handheld microphone, OPC-345A power cable, OPC-837 panel separation cable (3.5 metres), microphone hanger, spare fuse and user manual.
EQUIPMENT COMPLIANT WITH DIRECTIVE CE/99/05 (R&TTE)
ACCORDING TO STANDARDS:
EN 301 489-1 V1.9.2 (2011-09);
EN 301 489-15 V1.2.1 (2002-08);
EN 301 783-2 V1.2.1 (2010-07);
EN 60950:2006/A12:2011;
EN 62311:2008;
EN 62479:2010;
MINISTERIAL ACCEPTANCE OF THE NOTIFICATION:
0070788 OF 11/26/2014
OPTIONAL ACCESSORIES | |
SPEAKER MICROPHONE | |
HM-154 | Speaker microphone |
HM-207 | Microphone for remote control (2.5m) |
EXTERNAL SPEAKER | |
SP-35 | Compact speaker with 2m cable |
SP-30 | Speaker |
Bluetooth® UNIT / Bluetooth® HEADSET | |
UT-133 | Bluetooth unit |
VS-3 | Bluetooth headset microphone |
BASE MOUNTING / CONTROLLER SUPPORT | |
MBF-1 | Articulated support for front panel |
MBF-4 | Vehicle bracket for the main unit. |
MBA-4 | Bracket for fixing the controller with the main unit |
MBA-5 | Controller bracket for use with MBF-1 |
CLONING SOFTWARE AND CABLES | |
CS-2730 | Free download of PC programming software. Allows for quick and easy setup. |
OPC-478UC | USB cloning cable for PC |
OPC-474 | Radio/radio cloning cable |
CABLE EXTENSION | |
OPC-440 | Microphone extension cable (5m) |
OPC-647 | Microphone extension cable (2.5m) |
OPC-589 | Microphone adapter cable. 8-pin connection for microphone. |
OPC-1156 | Controller Extension Cable (3.5m) |
TECHNICAL FEATURES | |
GENERAL | |
Frequency: | TX 144–146, 430–440 |
RX 118–174, 375–550 * | |
* Guaranteed Range: 144-146, 430-440MHz | |
Emission type: | F3E, F2D |
Number of channels: | 1052 channels (including 50 edge scan and 2 call channels) |
Frequency Resolution: | 5, 6.25, 8.33 * , 10, 12.5, 15, 20, 25, 30, 50 kHz * Selectable depending on operating bands or model. |
operating temperature: | -10°C to +60°C |
Frequency Stability: |
