We are excited to introduce the new All Mode HF/50/144/430MHz QRP FTX-1F transceiver. The following information is preliminary, full details regarding this new product will be released in the coming months.

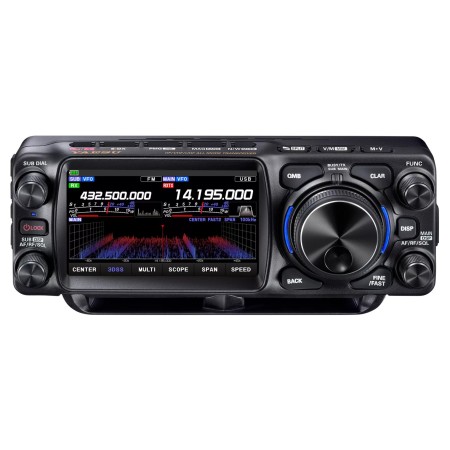

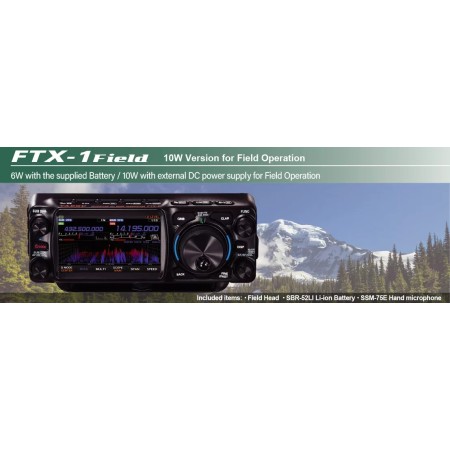

The new FTX-1F is a portable transceiver that uses SDR technology and provides 6W of output power with the 5670mAh lithium-ion battery (which allows for 9 hours of operation on the HF bands, in SSB mode, and 8 hours on the V/UHF bands, in FM mode, based on a 6-6-48 duty cycle). Up to 10W of power can be supplied using an external DC power supply.

Some of the key and notable features of the new FTX-1F are:

• Operation in SSB, CW, AM, FM and C4FM digital modes

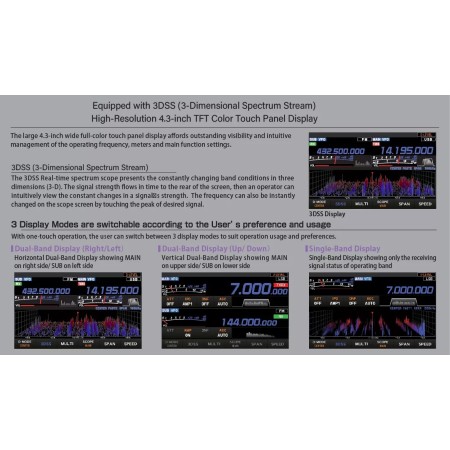

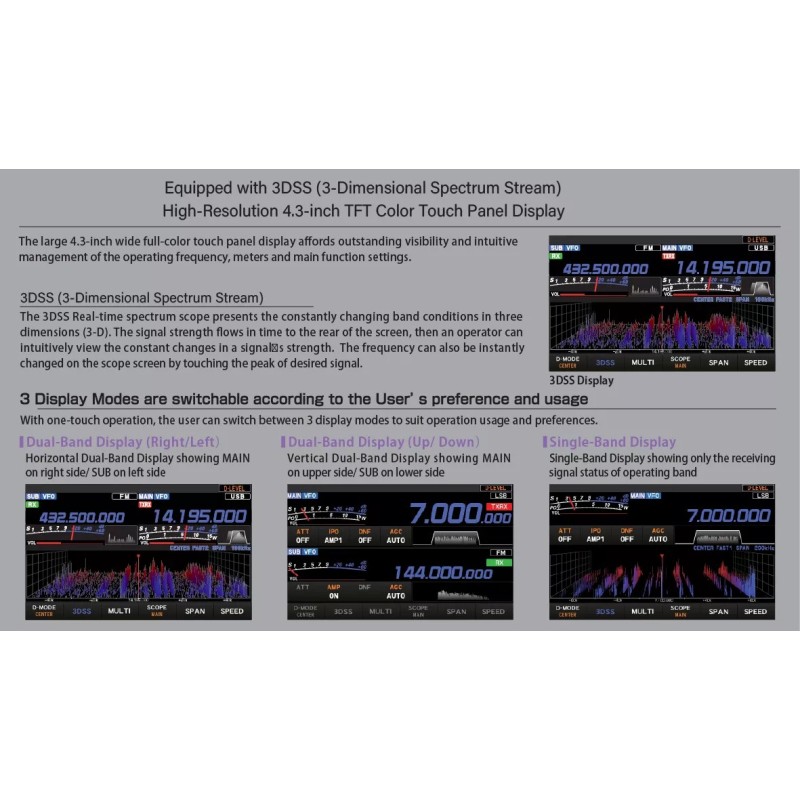

• SDR and 3DSS (3-Dimensional Spectrum Stream) technology on a 4.3-inch high-resolution color touchscreen display
• Two independent receiving circuits provide true simultaneous dual-band operation, both in the same band and in different bands. For example: SSB communication on the HF bands simultaneously with C4FM digital communication on the V/UHF bands (*HF+V, HF+U, V+V, U+U, V+U, U+V)
• Two loud speakers ensure clear and powerful audio output
• An optional automatic antenna tuner can be connected to the rear of the transceiver with the 5670mAh high-capacity Li-ion battery pack. An optional cooling fan, which is necessary for comfortable operation in FT8, can be matched with the antenna tuner. (All-in-one rear panel design)
• The RF front end and low noise reference oscillator achieve phenomenal reception characteristics.
• Effective QRM rejection by high-speed 32-bit IF DSP (combined with YAESU's advanced interference reduction technology and SHIFT / WIDTH / NOTCH / CONTROUR / APF / DNR / NB functions)
• Compatible with operation in the WiRES-X network
• The PMG (Primary Memory Group) function can record and monitor up to 5 frequently used frequencies.
• The MAG (Memory Auto Grouping) function allows you to classify memory channels in each band and quickly recall them by band groups (HF/VHF/UHF/AIR/OTHERS).
• The USB ports support CAT operation, audio in/out and TX control.

The new FTX-1F will be available in early 2025 .
