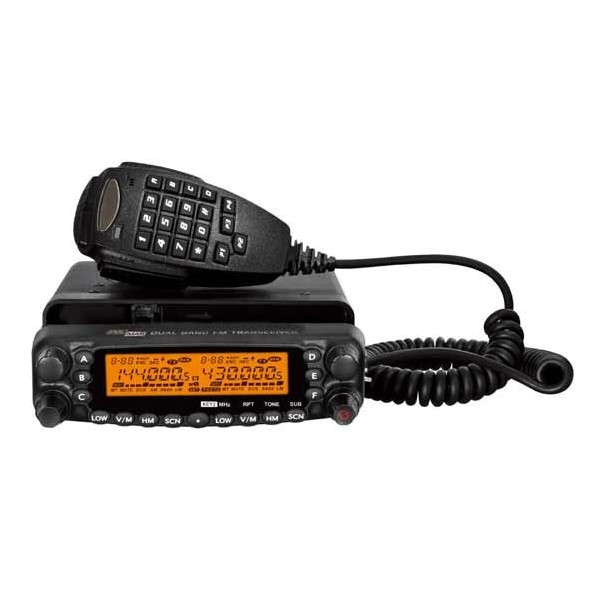

POLMAR DB-54M 50W Vehicle Dual Band VHF/UHF Transceiver

Dual Band VHF/UHF mobile transceiver

Robust and reliable amateur radio equipment, designed for communications vehicles with advanced technology that allows high performance and guarantees reliability.

Description:

Full duplex operation on two bands with independent volume controls and of the squelch.
50W output power in VHF band and 40W in UHF band.
RF power adjustable on 4 levels.
809 programmable channels with customization of the channel name.
Selectable bandwidth between 25 and 12.5 kHz.
Cross Band and Dual Watch: VV, UU, VU.
CTCSS and DCS tone encoder and decoder for each channel with different scanning functions.
Call identification 2 tones/5 tones and DTMF and ANI.
Tone burst 1750 Hz.
Transponder function.
Audio compander.
Large LCD display with adjustable brightness.
Front panel remotezable.

Supplied with: DTMF keypad microphone, power cable, mounting bracket, front panel separation kit, screws, spare fuses and Italian manual and English.

Additional Information:

Frequency range: TX/RX: 144 ~ 146 MHz / 430 – 440 MHz

Channels: 809

Channelization: 0.5/2.5/5/6.25/10/12.5/25/37.5/50/100 kHz

Operating temperature: -20 to +60 °C

Operating voltage: 13.8V

Dimensions: 140 x 41.5 x 168 mm

Weight: 1kg

RF power: VHF: 50W – UHF: 40W

Absorption: VHF: 8.5A – UHF: 8A
