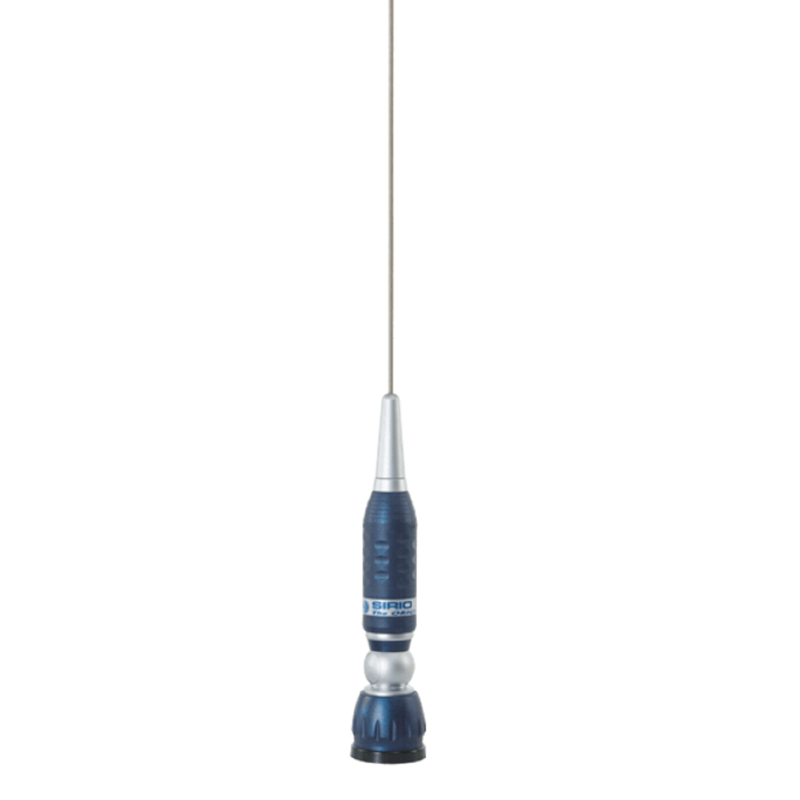

Sirio TURBO 2000 PL Blue line, C.B. vehicle antenna with PL connection base

Ref: Turbo2000PL

Immediately available
€42.50
Tax included
rating No review at the moment
Usually ships within 24 hours.
Quantity

Guarantee safe & secure checkout

TURBO BLUE LINE series

TURBO_BLUE_LINE_series

1) TURBO 1000, 2000, 3000 Blue Line
2) TURBO 800 S Blue Line

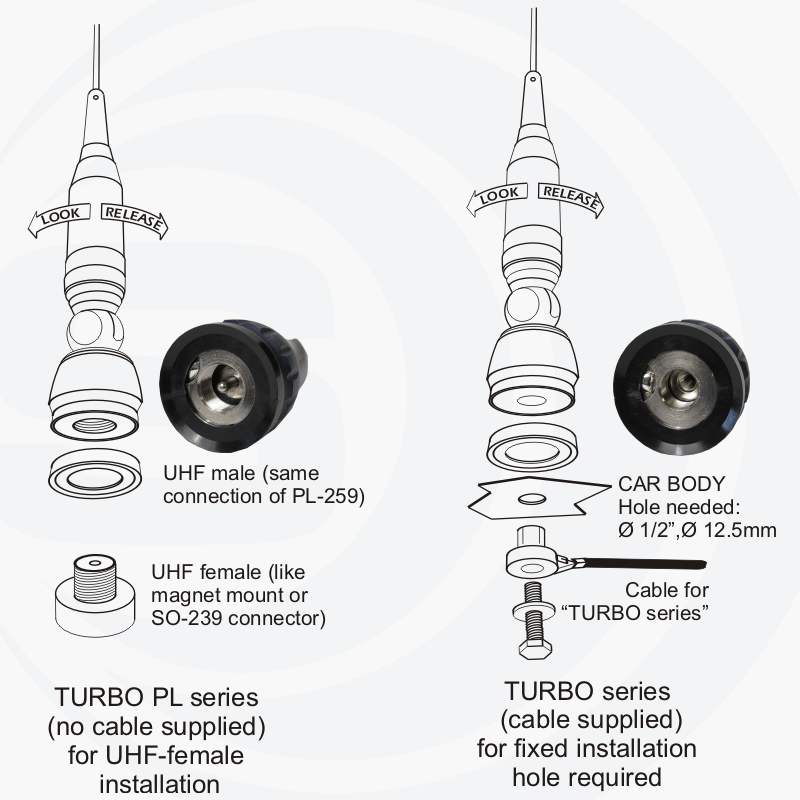

TURBO_STD_PL_installation_max



Product Number:


P/N: 2201905.40

TURBO 800 S Blue Line

Included:
Cable: 4m/13ft Cable for NE-PL, Turbo and Performer - Max power up to 300W (P/N:2505905.00)

P/N: 2201905.41

TURBO 800 S PL Blue Line

P/N: 2202005.40

TURBO 1000 Blue Line

Included:
Cable: 4m/13ft Cable for NE-PL, Turbo and Performer - Max power up to 300W (P/N:2505905.00)

P/N: 2202005.41

TURBO 1000 PL Blue Line

P/N: 2202105.40

TURBO 2000 Blue Line

Included:
Cable: 4m/13ft Cable for NE-PL, Turbo and Performer - Max power up to 300W (P/N:2505905.00)

P/N: 2202105.41

TURBO 2000 PL Blue Line

P/N: 2202405.40

TURBO 3000 Blue Line

Included:
Cable: 4m/13ft Cable for NE-PL, Turbo and Performer - Max power up to 300W (P/N:2505905.00)

P/N: 2202405.41

TURBO 3000 PL Blue Line

Electrical Data:

Type: Base loaded
Radiation: Omnidirectional
Polarization: Linear vertical
Frequency range: 27…28.5 MHz Tunable
Systems: CB 27MHz, 10m-HAM
Bandwidth:

TURBO 800 S Blue Line:
= 430KHz @ SWR = 2

TURBO 800 S PL Blue Line:
= 430KHz @ SWR = 2

TURBO 1000 Blue Line:
= 660KHz @ SWR = 2

TURBO 1000 PL Blue Line:
= 660KHz @ SWR = 2

TURBO 2000 Blue Line:
= 1.1MHz @ SWR = 2

TURBO 2000 PL Blue Line:
= 1.1MHz @ SWR = 2

TURBO 3000 Blue Line:
= 1.6MHz @ SWR = 2

TURBO 3000 PL Blue Line:
= 1.6MHz @ SWR = 2
Max Power:
200 Watts (CW) continuous
1000 Watts (CW) short time
Grounding protection: DC-Ground
Cable length / type:

TURBO 800 S Blue Line:
4 m (13.12 ft) / RG58

TURBO 800 S PL Blue Line:
Not supplied

TURBO 1000 Blue Line:
4 m (13.12 ft) / RG58

TURBO 1000 PL Blue Line:
Not supplied

TURBO 2000 Blue Line:
4 m (13.12 ft) / RG58

TURBO 2000 PL Blue Line:
Not supplied

TURBO 3000 Blue Line:
4 m (13.12 ft) / RG58

TURBO 3000 PL Blue Line:
Not supplied
Connectors:

TURBO 800 S Blue Line:
Not supplied

TURBO 800 S PL Blue Line:
UHF-male (PL-259)

TURBO 1000 Blue Line:
Not supplied

TURBO 1000 PL Blue Line:
UHF-male (PL-259)

TURBO 2000 Blue Line:
Not supplied

TURBO 2000 PL Blue Line:
UHF-male (PL-259)

TURBO 3000 Blue Line:
Not supplied

TURBO 3000 PL Blue Line:
UHF-male (PL-259)

Mechanical Data:

Materials: Copper, Brass, Stainless Steel 17/7 PH, Nylon
Height (approx):

TURBO 800 S Blue Line:
840 mm / 2.76 ft

TURBO 800 S PL Blue Line:
840 mm / 2.76 ft

TURBO 1000 Blue Line:
1150 mm / 3.77 ft

TURBO 1000 PL Blue Line:
1150 mm / 3.77 ft

TURBO 2000 Blue Line:
1450 mm / 4.76 ft

TURBO 2000 PL Blue Line:
1450 mm / 4.76 ft

TURBO 3000 Blue Line:
1710 mm / 5.61 ft

TURBO 3000 PL Blue Line:
1710 mm / 5.61 ft
Weight (approx):
580 gr / 1.28 lb
Mounting type:

TURBO 800 S Blue Line:
Thru-Hole

TURBO 800 S PL Blue Line:
On Connector

TURBO 1000 Blue Line:
Thru-Hole

TURBO 1000 PL Blue Line:
On Connector

TURBO 2000 Blue Line:
Thru-Hole

TURBO 2000 PL Blue Line:
On Connector

TURBO 3000 Blue Line:
Thru-Hole

TURBO 3000 PL Blue Line:
On Connector
