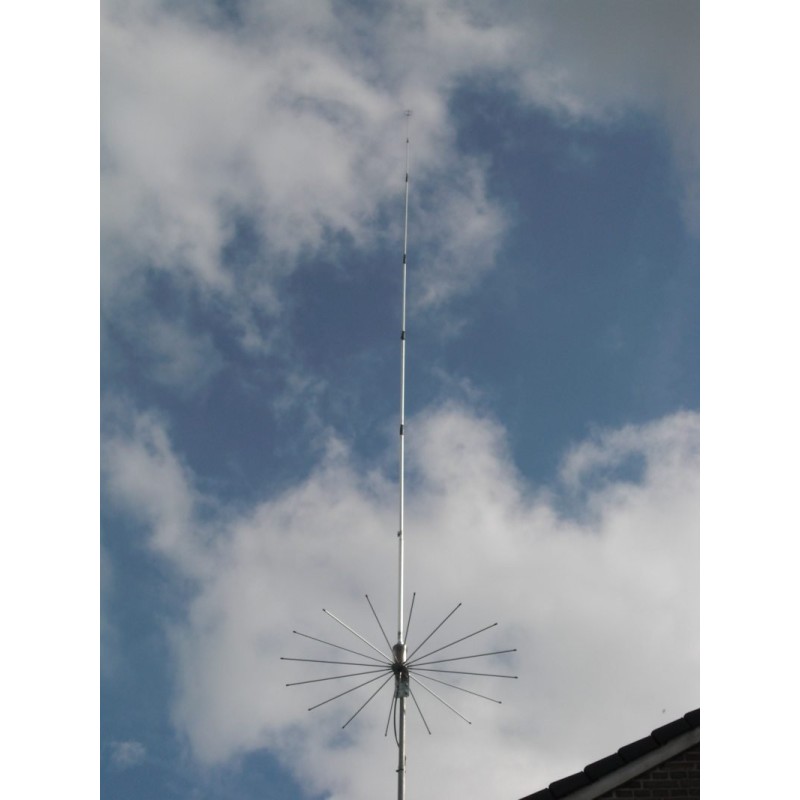

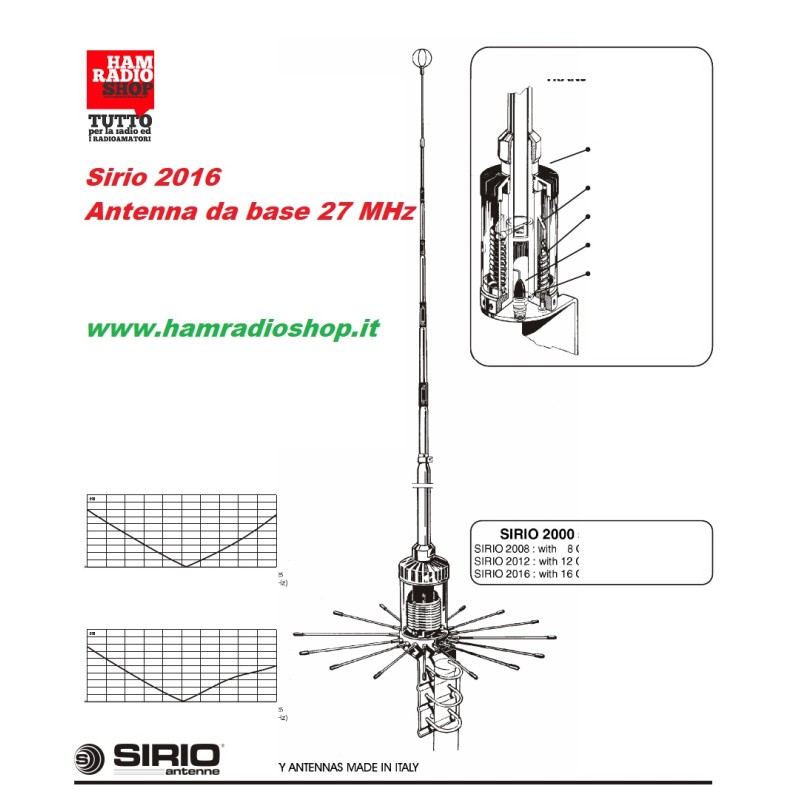

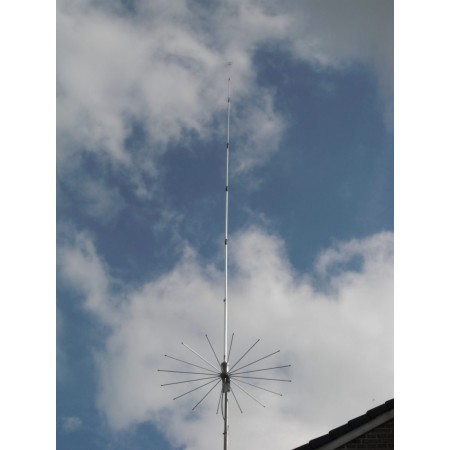

SIRIO 2016 Antenna C.B. Verticale da Base

SIRIO 2016 Vertical Base CB Antenna

CHARACTERISTICS:

- Base radio station, omnidirectional

- High power handling capability

- Low radiation angle for excellent DX

- Coil protected by transparent cover

- Mounted waterproof joint sleeve whit equipped

- Equipped with excellent ground plane element

- Protection from DC-earth electrostatic discharges

- Made of 6063 T-832 aluminum alloy

ELECTRICAL DATA:

- Type: 5/8λ ground plane

- Frequency range: tunable 26.4-28.2 MHz

- Impedance: 50Ω

- Radiation (H-plane): 360° omnidirectional

- Polarization: vertical linear

- Gain: 1.3 dBd, 3.45 dBi

- Bandwidth @ SWR ≤ 2: SIRIO 2016: ≥ 2100 KHz

- SWR @ res. Freq.: ≤ 1.1

- Max. Power: 1000 Watts (CW) continuous 3000 Watts (CW) in a short time

- Power system / location: DC-ground transformer / base

- Connector: UHF female

MECHANICAL DATA:

- Materials: aluminium, copper, nylon

- Wind load / Resistance: 166 N at 150 km/h / 130 km/h

- Wind surface: 0.14 m²

- Height (approx.): 6,100 mm

- Weight (approx.): 5300 gr

- Radial length (approx.): SIRIO 2016: 700 mm

- Mounting pole: Ø 40-50 mm
