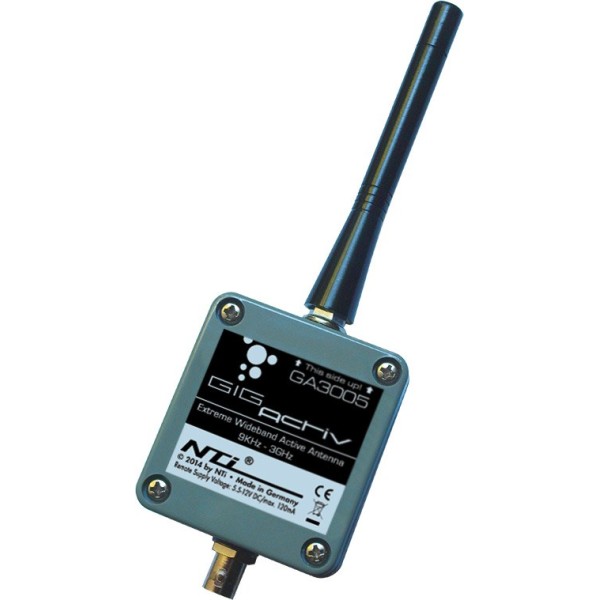

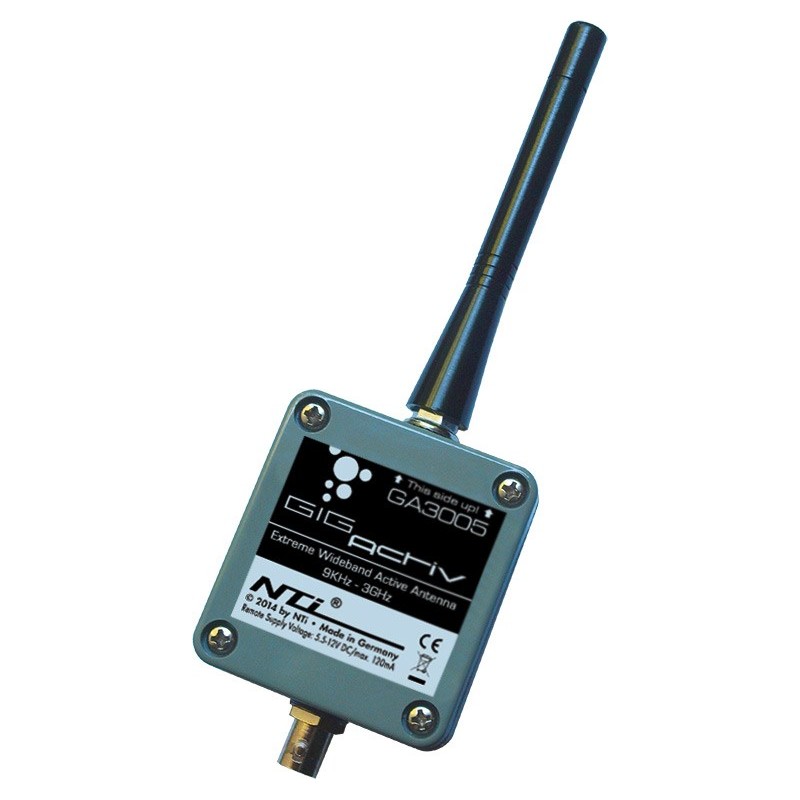

BONITO GigActiv GA3005 - Active antenna from 9 kHz to 3 GHz

Where space is the primary factor or you live in an area where an antenna is considered an unwanted feature in the neighborhood, the new GigActiv GA3005 is the ideal solution for the avid listener with a broadband receiver. NTi's GigActiv 3005 Extreme low-noise active broadband antenna covers the entire frequency range from 9kHz to 3GHz. The antenna radiator measures just 10cm (approximately 4 inches) and so the unit can be mounted discreetly. For shortwave and above 200 MHz you get an IP3 typically > +30 dBm.

Double power supply

Standard delivery with DualPower CPI1000DP power supply (external power supply and USB operation possible). GigActiv GA3005 can be used with two different types of power. It can be powered by a normal plug-in power supply or via USB. Power supply via USB has the advantage that no external power supply is required and that the antenna can be used independently and noiselessly with a separate USB PowerBank. The supply voltage range is 5.5 - 12 V DC (120 mA max) and therefore the antenna is also suitable for portable use.
Ideal for broadband or SDR scanners

The GigActiv GA3005 active antenna is ideal for broadband scanners or broadband SDRs such as AOR (AR5000, AR8200, AR8600, AR3000 etc.), ICOM (R9500, R9000, R8500, R8600 etc.), Yaesu, SDR-Play , Airspy, Winradio, etc.

Dimensions incl Radiator: 185 x 57 x 35 mm (7.28 x 2.24 x 1.38 inches)

Frequency range: 9kHz – 3GHz
Power Supply: 5.5V – 12V
Gain: +3dB
Upper Frequency Limit (-1db): 3000 MHz
IP3: > +30 dBm Typ. IP2: > +50 dBm Typ.

What's in the box?

GigActiv GA3005
Antenna
CPI3000DP Power Injector (BiasTee)

Made in Germany
