DIAMOND F-23H - VHF monoband basic installation antenna calibratable 144-174 Mhz
DIAMOND F-23H - Calibratable VHF monoband basic installation antenna 1
    DIAMOND F-23H - VHF monoband basic installation antenna calibratable 144-174 Mhz
    DIAMOND F-23H - Calibratable VHF monoband basic installation antenna 1

DIAMOND F-23H - VHF monoband basic installation antenna calibratable 144-174 Mhz

Ref: F23H

Immediately available
€129.10
Tax included
rating Read the 2 reviews
Average rating: 5/5 Number of reviews: 2
Usually ships within 24 hours.
Quantity

Guarantee safe & secure checkout

  • Description
  • Product Details
  • Comments

  • Warning: file_exists(): open_basedir restriction in effect. File(/views/templates/hook/tab.tpl) is not within the allowed path(s): (/home/fhamradi/:/opt/cpanel/ea-php81/root/usr:/usr/local/lib/php:/tmp:/etc/pki/tls/certs/ca-bundle.crt:/var/cpanel/php/sessions:/usr/local/bin/wp) in /home/fhamradi/public_html/classes/module/Module.php on line 2292
    Reviews

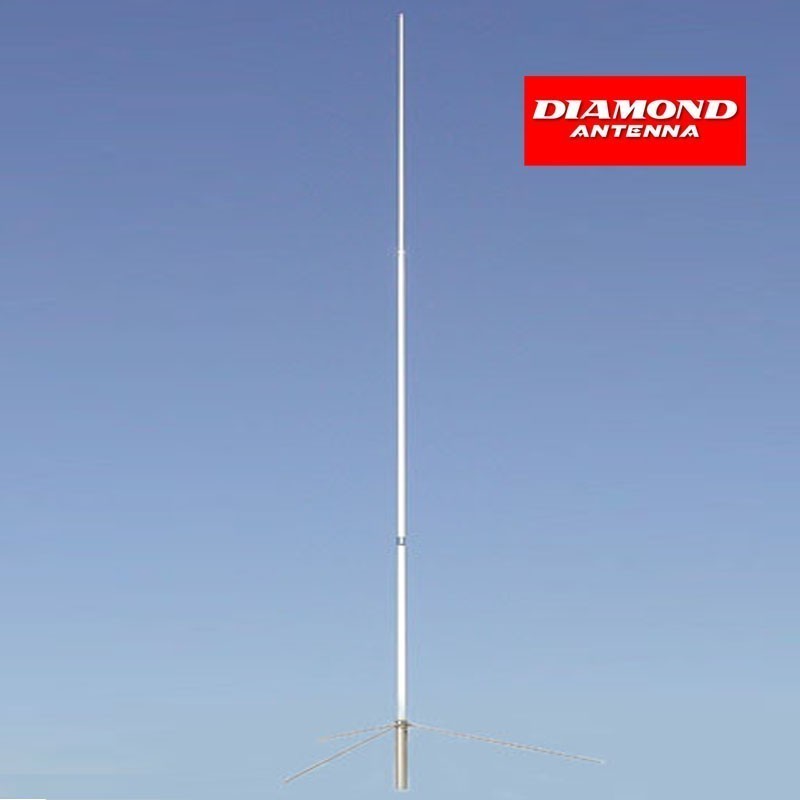

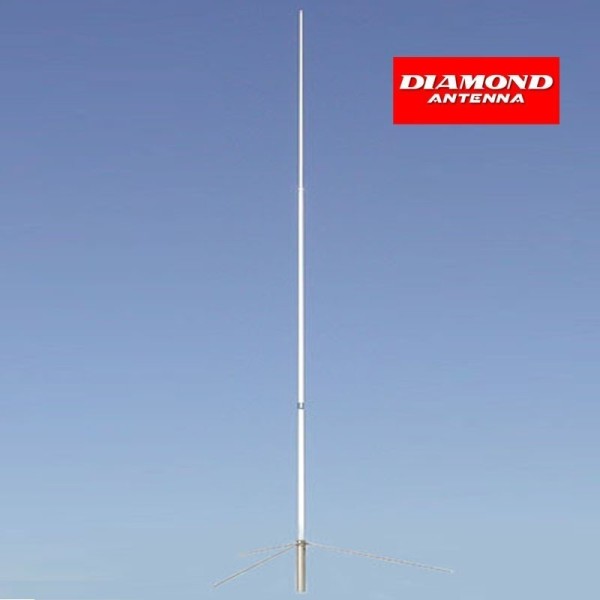

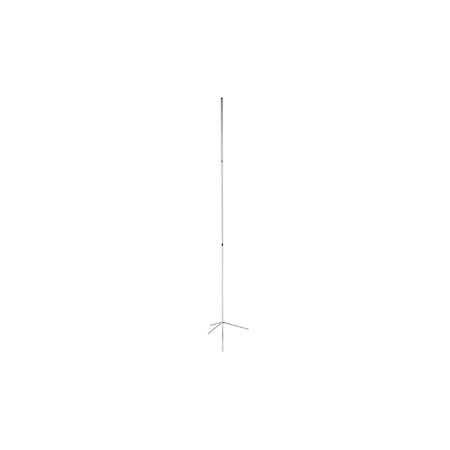

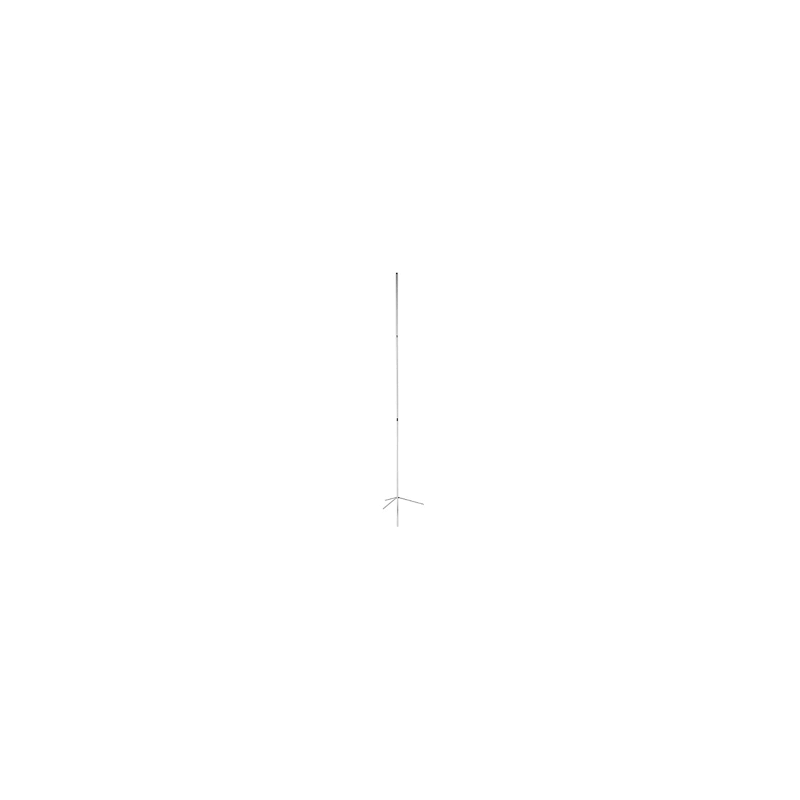

DIAMOND F-23H VHF Collinear Antenna adjustable from 144 to 174 MHz

Special Features:
• Fiberglass radome
• Overlapping outer covers for added strength
• Durable watertight joints
• Stainless steel hardware
• Broadband performance
• Factory setting, no tuning required
• Maximum profit
• High wind rating
• DC grounded

Technical specifications:

Band: Tunable from 144-174 with the cut chart
dB gain: 7.8
Maximum rated power: 350W
Rated wind: 140 km/h
Height: 4.6 meters
Connector: UHF
Element Phasing: 3-5/8 lambda

F23H
1 Item

Data sheet

Mpn
F23H
Guy
COLLINEARE
VHF/UHF/SHF Base
Specifications
VHF
Compatible brand
Generico
Sub-Categories
VHF/UHF/SHF Base

Specific References

MPN
F-23H
Filter reviews
(2)
(0)
(0)
(0)
(0)
(0)
Reset

F-23H
rating 5
Gekauft, gekürzt nach Anleitung für 149MHz was osll ich sagen, SWR 1:1,1, bei 149MHz, und bei 144MHz ein SWR von 1:1,4, SEHR GUT, meine Empfehlung! 73 Christian
Cortesi e disponibili ed ottima antenna.
rating 5
Grazie per la cortesia e disponibilità: la spedizione è stata ritardata notevolmente a causa del corriere ma l'azienda Hamradioshop mi ha subito aiutato nel risolvere il problema: ringrazio ancora per la cortesia e la disponibilità, rare di questi tempi. L'antenna è ottima, lo SWR nella frequenza "di taglio" è più basso del dichiarato, il guadagno è molto buono, la larghezza di banda con SWR
