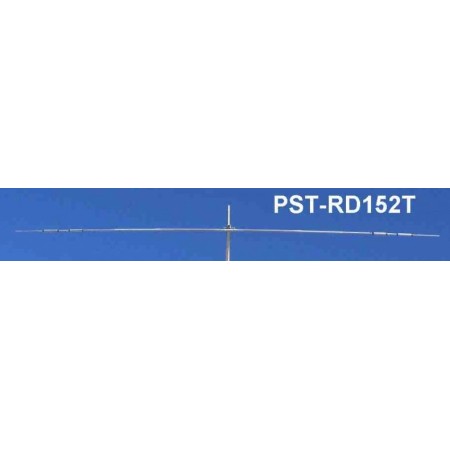

PST-RD152T

- Multiband trapped rotary dipole 10-15-20m

- Max power : 2KW pep

- Rotation radius : 4m

- Wind area : 0.15m2

- Max wind : 130km/h

- Weight : 7Kg

- Material : 6060T6 aluminium, bolts stainless steel

- Balun optional

GENERAL SPECIFICATIONS:

- Gain: 0 dB

- Impedance: 50 ohm

- Front-side: approximately 15 dB

- ROS: within 1:1.5 (see graph)

- Accepts mast from: 48mm (series) or 60mm (optional)

- Material: AL6060T6, stainless steel bolts

ROS AND RETURN CURVES LOSS ON SINGLE BANDS

Trapped rotary dipoles, produced in HF version and WARC version which also resonate on 6m. To the HF versions or basic WARC, expansion kits can be added later of 40 and/or 30m. Very sturdy construction, with stainless steel bolts, traps made of high insulation copper wire with fiberglass supports, they allow for easy use even with powers up to 2KW pep ssb. For optimal operation, we recommend to mount it at a height of at least 4-5m from the ground and in the 30 and 40m versions an even greater height is preferable, close to 9-10m.
