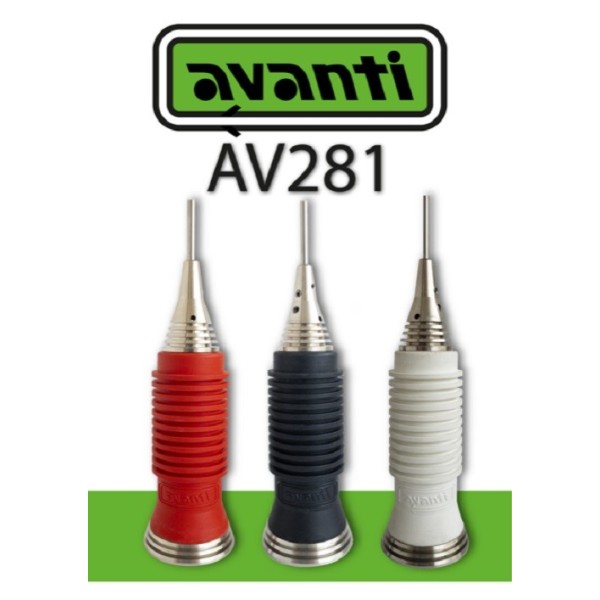

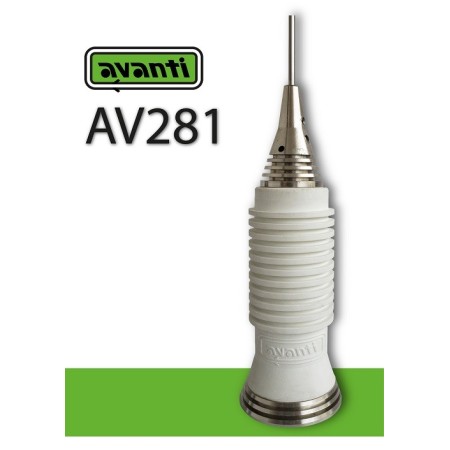

AVANTI AV281 - CB antenna 5kw 199 cm., BX connector

Ref: AV281

Immediately available
€278.00
Tax included
rating No review at the moment
Usually ships within 24 hours.

Select the antenna color you prefer to receive



Colour : White
Quantity

Guarantee safe & secure checkout

You can purchase this product in installments with Sella Personal Credit. Click here for more information.


NEXT AV281

Original, Unique and Inimitable Made in Italy

High performance in transmission and reception guaranteed with unparalleled quality

--- THE SHIPPING COST OF THIS ITEM IS INCLUDED IN THE PRICE ---

  • Bass ROS on 80 channels
  • Coil completely watertight
  • Stylus in harmonic steel, tapered, stainless, very robust and nickel-plated
  • power maximum 2000 Watt in AM and 4000 Watt PeP in SSB and AM (tested up to 5KWatt PeP)
  • Wrapping made with 3.5mm silver-plated copper
  • Use of materials resistant to high temperatures and bad weather: stainless steel nickel-plated brass
  • Great thermal capacity thanks to the high metallic mass
  • Optimized for best heat dissipation
  • Height total 1.99 m.
  • Height coil: 180 mm
  • Diameter maximum body-coil: 60mm
  • Weight full spool: 810 g
  • Curve resonance centered at 27.2 MHz
  • Limited calibration operations (normally not necessary at the center of the roof)
  • Tested individually
  • In short circuit (in direct current) with consequent improvement in rejection to unwanted signals (electrical, out-of-band, QRN or impulsive noise)
  • Diameter of the hole required for mounting: 16 mm
  • Suitable for sheets from 0.8 to over 5mm
  • Ideal for mounting on side bracket
  • Estate water flow towards the passenger compartment guaranteed by a 2 OR neoprene ring (OR). to protect the coil from water
  • Grain anti-unscrewing stainless steel coil jacket
  • Stylus blocked with 2 M5 dowels and one M4
  • Equipped of a "cap" to protect the base connection with the radiant part removed
  • Equipped of Ultraflex 7 cable by Messi&Paoloni with Bx connection
  • Availability total spare parts

AV281
10 Items

Data sheet

Mpn
AV281
Guy
Veicolare
Specifications
5KW
Compatible brand
Generico
Detail
27 MHz
Alteza 199 cm
