Ref: PST40CH
Out-of-StockPST40CH

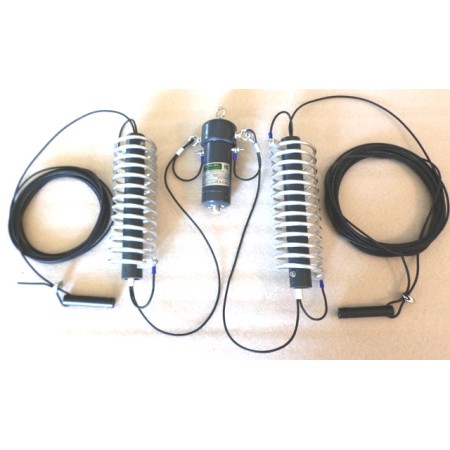

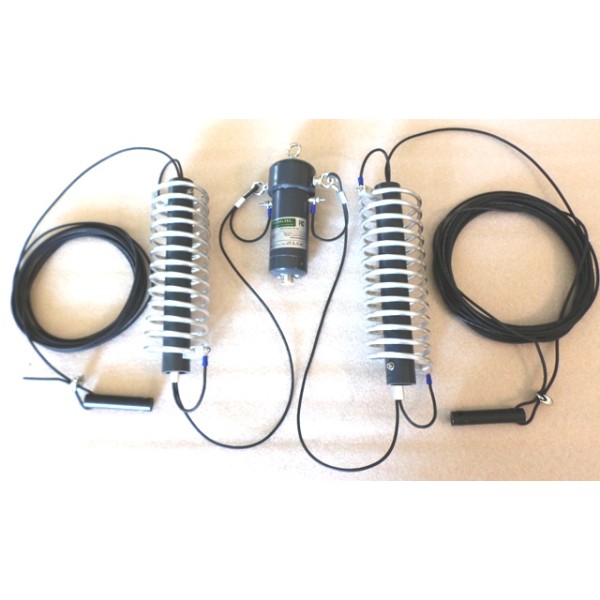

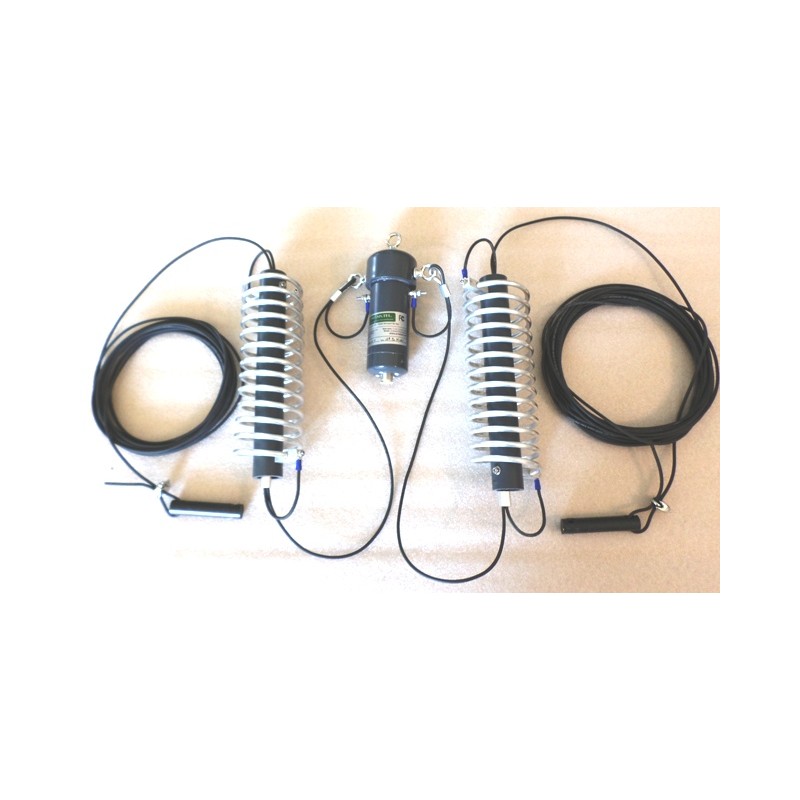

High-efficiency wire antenna of small dimensions, designed to be installed in limited spaces with the same performance as a full-size dipole. For optimal operation, it is recommended to mount it at least 10m from the ground, if installed in inverted V, with an opening of approximately 90-110 degrees. The antenna is pre-calibrated and covers practically the entire band. Small adjustments can be made by acting on the length of the terminal.
The center dipole also includes the 1:1 ferrite balun.
40 m
- Gain: 0 db;
- SWR: 1:1.3 at center of band;
- Maximum power: 1.5KW pep or 5KW pep, depends on the version chosen
Impedance: 50 ohm if installed on Inv;
Amphenol or Teflon: SO239
Total length: approximately 16m;
Weight: approximately 2 kg
Data sheet
