Sirio - Gain Master Verticale 5/8 CB e Bande10-12 metri

Description: Gain-Master™ is a high-tech 0.625λ fiberglass base station antenna covering the CB, 10m amateur bands. Completely computer designed using electromagnetic simulations to obtain maximum gain and optimize radiation pattern and bandwidth. . Designed with the most advanced technologies available, it is completely built in Italy using high quality materials. The new design of the radiating element works as a dipole fed at its centre, all RF currents on the radiator are in phase so the ground plane is not necessary. The coaxial coil at the base works as an RF-choke for excellent decoupling from the support pole and the power line. Built with telescopic fiberglass tubes, it is DC short circuited for the best protection against static discharges.
Gain-Master™ is the new gold standard in its antenna class.

ELECTRICAL DATA

- Type 0.625 λ center fed vertical dipole;

- Frequency Range @ SWR ≤ 2.0 25.5 - 30 MHz wide band from 10m to 12m* ham band;

- Impedance 50 Ω;

- Radiation Omnidirectional;

- Polarization Linear Vertical;

- Max Gain on the horizon 1 to 2 dB higher than conventional 5/8 λ;

- Max Power 500 Watts (CW) continuous, 1000 Watts (CW) short time;

- Lighting protection All metal parts are DC-grounded, the inner conductor shows a DC-short;

- Connector UHF-female, PTFE insulator & gold plated central pin;

MECHANICAL CHARACTERISTICS

- Materials: white fiberglass whip four sections composite tube, radiator made of copper wire and low loss coaxial cable, stainless steel hardware, AW6060 anodized aluminum, UV stabilized thermoplastic;

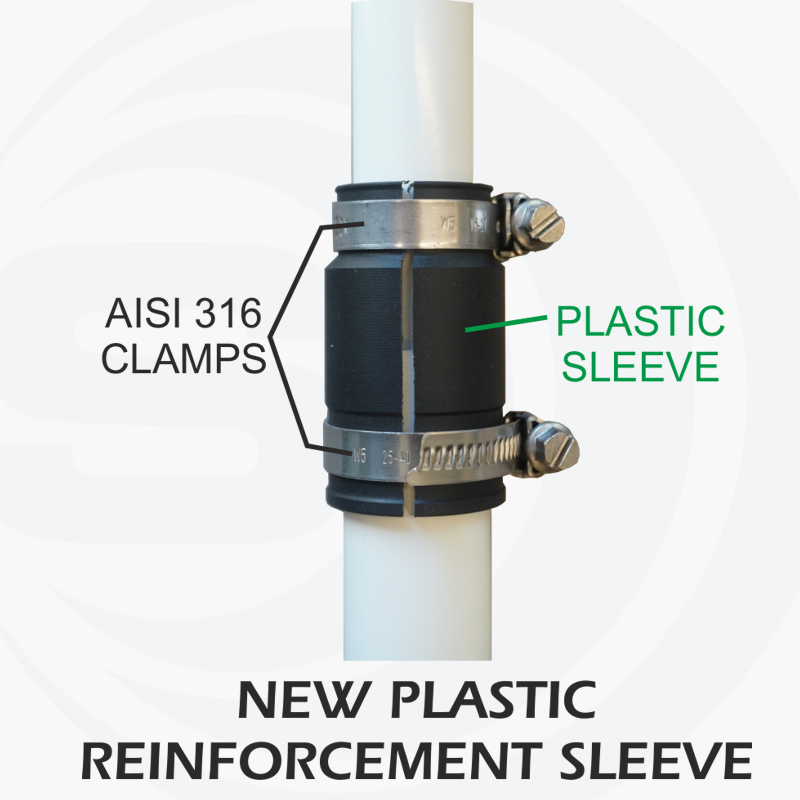

- resistance: wind up to 160 km/h reinforced rods;

- Height (approx.) : 7360mm with bracket, 6850mm radiator;

- Packaging dimensions: 1950 x 100 x 130 mm;

- Weight (Approx): 3 Kg;

- Post mounting: Ø 35-54 mm side post with "V" bolt
