Ref: STICK500

Immediately available
€419.20
Tax included
rating No review at the moment
Usually ships within 24 hours.
Quantity

Guarantee safe & secure checkout

You can purchase this product in installments with Sella Personal Credit. Click here for more information.


STICK 500

The UHF analyzer is designed to measure the standing wave ratio (SWR) and return loss, amplitude and phase angle, as well as the value of active (R) and reactive (X) resistances, considering the sign, inductance (L) and capacitance (C) in parallel and series mode of antennas, cables, lines, filters and other systems in the range from 0.1 MHz to 500 MHz.

Like all Stick analyzers, it can perform 16 hours of continuous measurements without recharging the battery. Smart, fast, easy to handle and even more powerful.

Anytime, anywhere, in any weather.

Antenna check and adjustment
Measurement of all major parameters of cables, power lines, filters and more
High-contrast E Ink display
16 hours of battery life, one charge
Bluetooth
Compact and lightweight
Splash and dust resistant case
Use both at home and in the field

Frequency range

0.1 to 500 MHz

Frequency entry

1 kHz

Measurement for systems

12.5, 25, 28, 37, 50, 75, 100, 150, 200, 300, 450, 600 Ohm

SWR measurement range

1 to 10 in chart modes, 1 to 100 in numerical modes

R and X range

0… 10000, -10000… 10000

Display modes

HAM (a quick check of single band antenna), Multé (a quick check of multiband antennas), OSL calibration mode, SWR chart, 100 points, SWR, Return loss, R, X, Z, L, C, magnitude and phase angle at one frequency

RF output

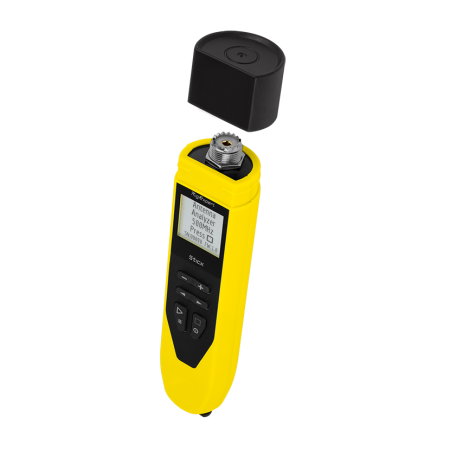

Connector type: UHF (SO-239), Output power: -10 dBm (at a load of 50 ohms), Output signal shape: square

Power

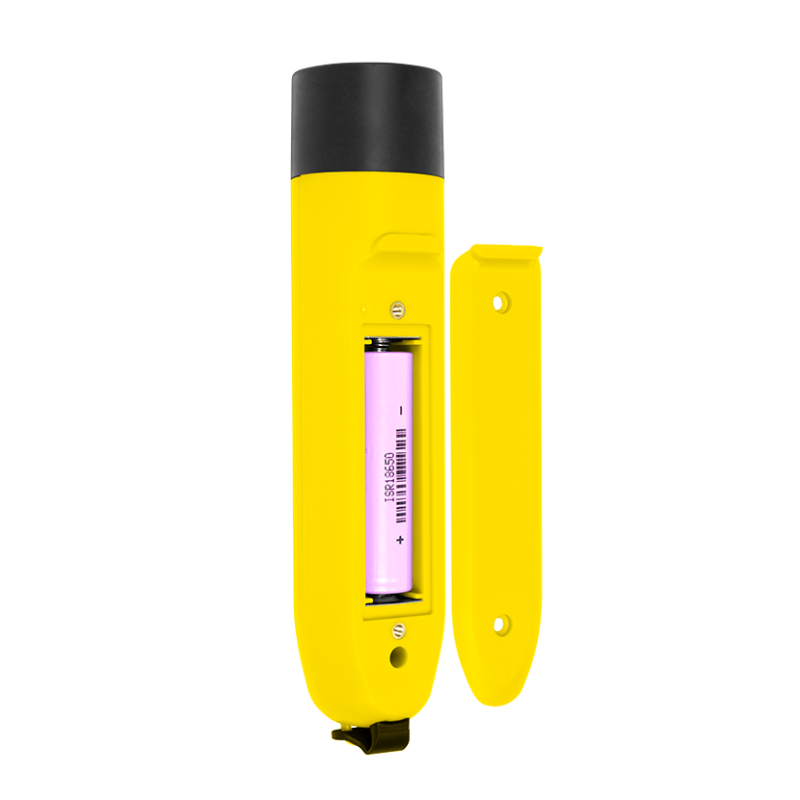

One lithium-ion battery 3.7 V type 18650, When the analyzer is connected to a PC or a DC adapter with USB socket, it takes power from these sources, ?harge time: 3 hours when using a charger

Interface

2 × 3 keys on the waterproof keyboard, High contrast E Ink display, 200 × 200, Menus and help screens in English (by default), Japanese, v.4.2 BLE Single Mode, Class B

Operating temperature

-15° … 40 °C (5 … 104 °F)

Dimensions

185 x 40 x 33 mm (7.3 x 1.6 x 1.3 inches)

Weight

185 grams (6.5 Oz) with battery

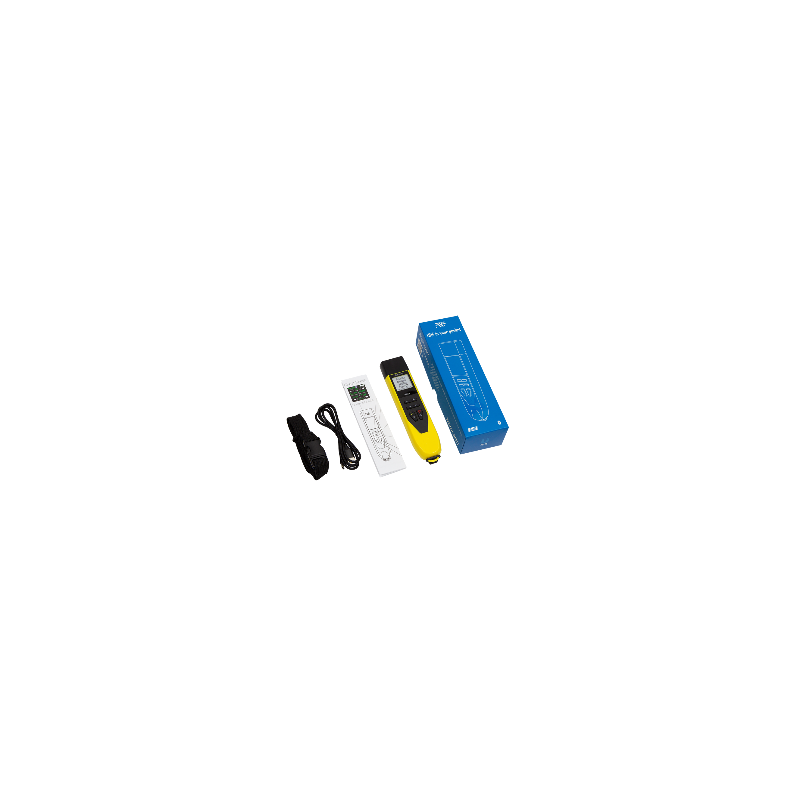

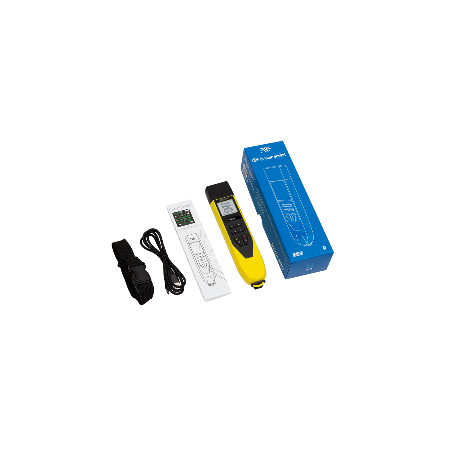

Accessories inside the box

Lanyard, Quick start guide, USB cable

GTIN-13

4820185420358

Notes

Specifications are subject to change without notice, available in Ukraine
