IC-A25NE 6 W PeP aeronautical transceiver with GPS and Bluetooth

IC-A25NE 6 W PeP aeronautical transceiver with GPS and Bluetooth

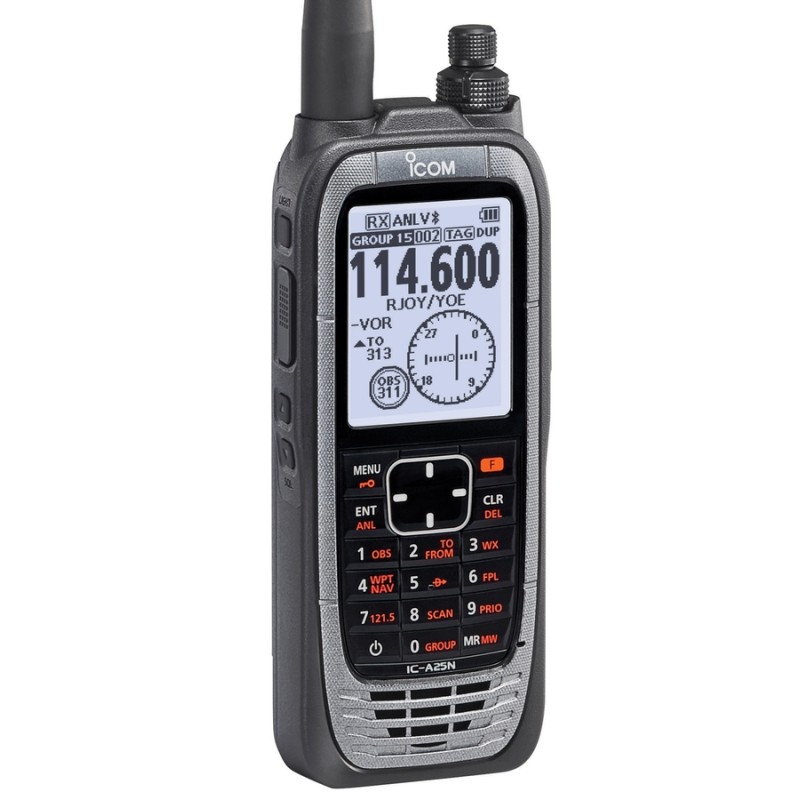

Icom IC-A25NE Portable Aviation Transceiver VHF 6W PeP

Navigation functions (exclusive to IC-A25NE)

Bluetooth for hands-free operation

VOR navigation functions (CDI, Course

Deviation Indicator; OBS, Omni Bearing

Selector; TO-FROM indicator; ABSS

(Automatic Bearing Set System)

Nearest base station search function

GPS with simplified waypoint NAV

Plan flights with Android and IOS and import to the device.

Class-leading high-power RF output

Output power is increased to approximately 6W typical (PEP) and 1.8W typical (carrier) compared to the IC-A24 (5/1.5W (PEP/carrier). This broadens communication coverage and improves the safety of aircraft operation.
Airband radio transceiver with integrated GPS and Bluetooth ®
Built-in GPS with Simplified Waypoint NAV (for IC-A25NE)

NAV Waypoint screen
NAV Waypoint ScreenThe simplified NAV waypoint guides you to a destination using current location information from GPS (also GLONASS and SBAS). Waypoint NAV has two functions: Direct-To NAV and Flight Plan NAV. In direct NAV, the IC-A25N drives directly to a specified waypoint. In the NAV flight plan, the transceiver guides you to a sequential series of waypoints. Up to 10 flight plans and 300 waypoints can be stored in the IC-A25N. Location information imported from an Android/iOS* device can be used as waypoints.
* RS-AERO1A / RS-AERO1I required.

Flight Plans with Android™ / iOS™ App (for IC-A25NE)

Example of RS-AERO1I map screen
RS-AERO1I map on screen
example
© 2017 Google Map data
© 2017 GoogleUsing the RS-AERO1A (Android) or the RS-AERO1I application (iOS), you can make flight plans on an Android / iOS device and import the plan into IC -A25N via Bluetooth. The following functions are available:
1. Create a flight plan
You can make flight plans on an Android/iOS device using pre-programmed waypoints.
2. Setting direct NAV on the fly
You can select a point on the map and export it to IC-A25N for direct NAV.
3. View flight plan information
You can view a flight plan in the IC-A25N on an Android/iOS device.
4. View waypoint information
Pre-programmed waypoints can be exported to an Android/iOS device and plotted on a map application.

VOR navigation functions (for IC-A25NE)

VOR screen
VOR ScreenThe CDI (Course Deviation Indicator) is as detailed as a real VOR instrument and shows any deviation from the course.
OBS (Omni Bearing Selector) allows you to change course from the original flight plan.
The TO-FROM indicator shows the position relationship between the aircraft and the course selected by the OSS.
The ABSS (Automatic Bearing Set System) feature allows you to set the current course as a new course in two simple steps.

Local station search function (for IC-A25NE)

Near the station search function screen

Search Function ScreenThe local station search function helps you access nearby ground stations. The function searches for nearby stations using station memories that have GPS position information. To use the local station search function, you must program the position data and frequencies of the ground stations.

Large 2.3 inch high visibility LCD display

Night mode screen
Night Mode Screen Menu ScreenThe large, high-visibility LCD display provides user-friendly graphical screens. The night mode option allows for easy viewing in the dark. The operating frequency in large print can be recognized at a glance.

Menu screen

Intelligent battery with detailed battery status

Detailed battery information screen

Detailed Battery Information ScreenThe included BP-288, 2350 mAh (typical) battery pack provides up to 10.5 hours* of battery life. You can check the condition of the battery pack on the battery status screen. It is very useful for optimal charging and battery maintenance.
* Typical operation with Tx: Rx (Max.audio): standby = 5:5:90. (Bluetooth off, GPS on)

Other characteristics

IP57 dustproof and waterproof construction
Runs on six AA alkaline batteries with the BP-289 battery case
BNC antenna
Emergency key 121.5 MHz
Weather channels
Priority watch
VFO scan, memory channel scan, priority scan
ANL (Auto Noise Limiter) for noise reduction
Side tone function
Internal VOX functionality
300 memory channels (in 15 memory groups) with 12 character names
Channel spacing 8.33 kHz

IC-A25NE is supplied complete with:

- intelligent Li-ion battery 7.2V/2350mAh (BP-288)
- container for six AA batteries (BP-289)
- BC-224 desktop fast charger with BC-123SE
- aviation headset adapter (OPC-2379)
- antenna, belt clip, strap
- user manual
