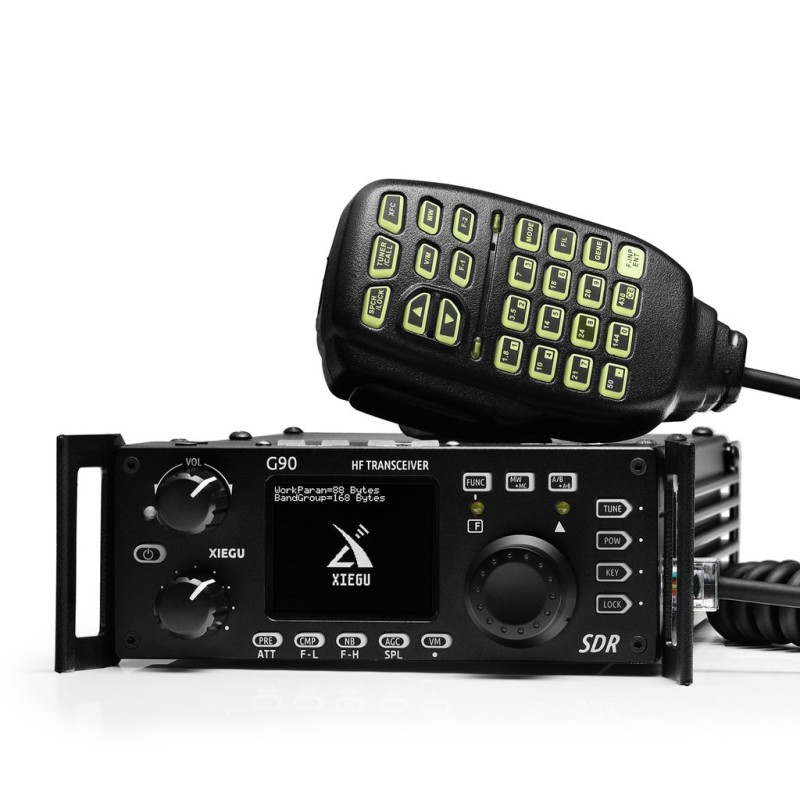

XIEGU G90 Bundle - RTX SDR QRP 0.5 - 30 MHz 20W & Internal Auto Tuner

Ref: G90

Immediately available
€543.00
Tax included
rating No review at the moment
Usually ships within 24 hours.
Band expansion : Non espanso
Quantity

Guarantee safe & secure checkout

You can purchase this product in installments with Sella Personal Credit. Click here for more information.


RTX SDR 24 bit, 20 W output, remoteable front panel, internal automatic antenna tuner, waterfatt, I/Q output, CAT control

Features of Xiegu G90

High performance front-end narrowband ESC preselector
Frequency range of 0.5~30MHz, SSB/CW/AM
1.8 inch high brightness color TFT LCD screen
± 24khz band spectrum display with cascade
Software-defined narrowband filter (CW mode: 300Hz)

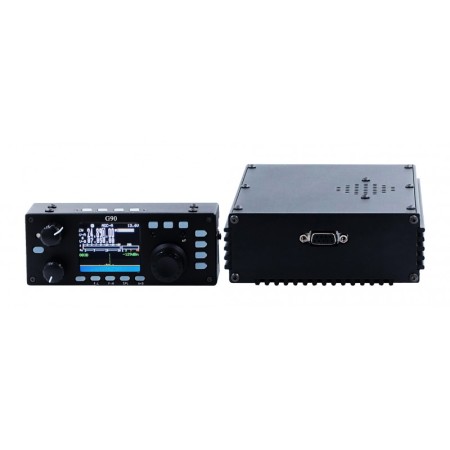

Separable front panel
Up to 20W of RF power
Built-in wide impedance range automatic antenna tuner
I/Q output for interfacing with a PC or Xiegu XDT1 panadapter accessory

Xiegu G90 receiver parameters

RX frequency range: 0.5 MHz to 30 MHz
Mode: SSB/CW/AM
RX sensitivity: better than 0.25uV @ 12dB Sinad (PRE: ON) Machine dynamic range: 90dB
Adjacent channel suppression: 60 dB
Audio Output Power: 0.5W@4O
Standby current: 750mA @ max

Xiegu G90 transmitter parameters

TX Frequency Range: All amateur bands from 1.8 to 30 MHz
Mode: SSB/CW/AM
RF output power: 20W
Spurious suppression: =50 dB
Carrier suppression: =50dB
Sideband suppression: =50 dB
Transmission working current: 8A @ max

Xiegu G90 antenna tuner parameters

Initial tuning time: =12s
Tuning time after first chord: = 2s

Xiegu G90 General Specifications

Operating voltage range: 12~15V DC
Operating temperature range: 0°C ~ 55°C
Frequency Stability: ±2ppm (after 30 minutes of power on)

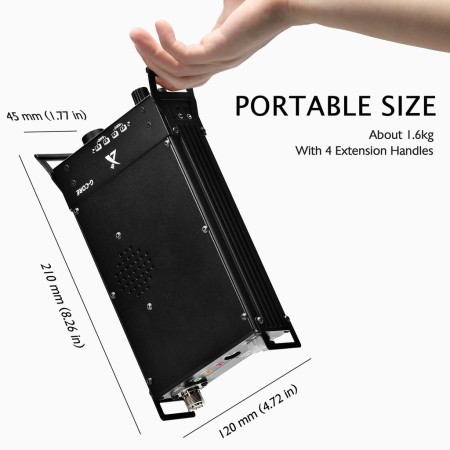

Size: 120*45*210mm (without protrusions, main unit combination state, kit assembled and ready to use)
Weight: about 1kg

G90
4 Items

Data sheet

Mpn
G90BUNDLE
Guy
Radioamatoriali veicolari
SDR
Compatible brand
Generico
Sub-Categories
Radioamatoriali veicolari
SDR

Specific References

MPN
G90
