hy-gain

AV-620

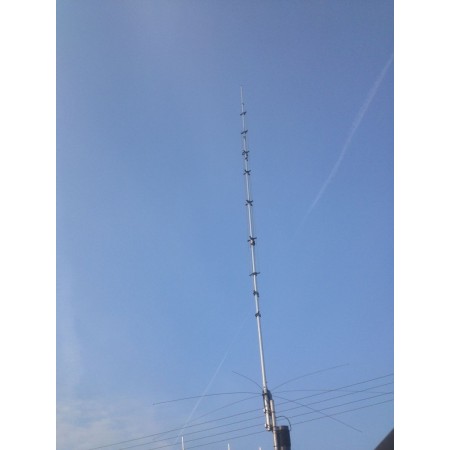

HF VERTICAL, 6 BANDS 20/17/15/12/10/6M

Hy-Gains new AV-620 Patriot HF vertical is the best built, best performing and best priced multiband vertical available today. Make full use of you sunspot cycle with the Patriots low angle signal.The AV-620 covers all bands 6 through 20 Meters with no traps, no coils, no radials yielding an uncompromised signal across all bands.

- No Ground or Radials Needed

- Effective counterpoise replaces radials

- End fed with broadband matching unit

- Automatic Bandswitching

- Single coax cable feed

- Each band is individually tunable

- Wide VSWR bandwidth-

- Sleek and low-profile

- Low wind surface area

- Small area required for mounting

- Mounts easily on decks, roofs, and patios

- Built to Last

- High wind survival

- Matching unit made from all Teflon(R) insulated wire

- Hy-Gain Warrant

- Two year limited warranty

- All replacement parts in stock

AV-620 Specifications
Bands Covered: 6, 10, 15, 17, and 20 Meters
2:1 VSWR Bandwidth
20 Meters: 500KHz

17 Meters:		 500KHz
15 Meters: 500KHz
12 Meters: 500KHz
10 Meters:
1500KHz
6 Meters: 2000KHz
VSWR at resonance (typical): 1.5:1
Power Handling (Watts output):
key down 2 minutes		 1500W

Vertical Radiation Angle:		 17 degrees
Horizontal Radiation Angle: 360 degrees
Height: 22.5 feet

Weight:		 10.5 pounds
Wind surface area: 2.4 square feet
Wind Survival: 80 MPH
