Ref: MAESTRO

Immediately available
€1,922.00
Tax included
rating No review at the moment
Usually ships within 24 hours.

Maestro™ is an intuitive, plug-and-play control console that manages the operation of any FLEX-6000 Signature Series transceiver without the need for a traditional PC.

Quantity

Guarantee safe & secure checkout

You can purchase this product in installments with Sella Personal Credit. Click here for more information.


  • Description
  • Product Details
  • Comments

  • Warning: file_exists(): open_basedir restriction in effect. File(/views/templates/hook/tab.tpl) is not within the allowed path(s): (/home/fhamradi/:/opt/cpanel/ea-php81/root/usr:/usr/local/lib/php:/tmp:/etc/pki/tls/certs/ca-bundle.crt:/var/cpanel/php/sessions:/usr/local/bin/wp) in /home/fhamradi/public_html/classes/module/Module.php on line 2292
    Reviews

flexradio hamradioshop logo

FINAL PRICE 1795.00 (VAT included)

Maestro™ is an intuitive, plug-and-play control console that manages the operation of any FLEX-6000/8000 Signature Series transceiver without the need for a traditional PC.

Connect Maestro directly or via your local area network (LAN) to any Flex 6000/8000 series transceiver and you're ready to go.

  • External monitor connection
  • Improved WiFi 6
  • Optional rechargeable battery
  • Battery not required for normal operation
  • Power supply included

Maestro puts your most frequently used controls right at your fingertips. Controls are labeled for intuitive operation and designed to minimize hand movement for the most common radio operations. Occasionally used controls are easily accessible on the large touch screen display, bypassing the complexity of multi-function buttons and multi-level menus found on most transceivers. Like modern phones and tablets, capacitive touch control is provided on the large LCD display for intuitive pan, zoom, tune and menu operation. CW paddles can also be connected to the Maestro to work directly with your FLEX-6000 series radio.

Characteristics :

High Resolution Radio



Never miss a QSO

  • 8" 1920 x 1200 high definition WUXGA screen
  • Multi-touch screen
  • Panadapter and waterfall in high resolution
  • Up to two 7 MHz spectrum displays
  • Optimized workflow
  • Large, easy to read text

Controls without confusion



Only the commands you need, only when you need them.

  • Ergonomic spaced/single function controls
  • Intuitive touch screen menus
  • Illuminated buttons
  • Two full VFOs

Screen/touch screen
  • Up to 2 simultaneous, real-time spectrum and waterfall displays
  • Dual VFO readings
  • Display type: Large 8.0" In Plane Switching (IPS) display with touch screen
  • Screen resolution: WUXGA 1920 x 1200 screen

Input Output
  • Microphone 1: 8-pin pseudo-balanced RJ-45, compatible with dynamic or electret
  • Microphone 2: 1/8″ (3.5mm) pseudo-balanced TRS
  • Headphones: Stereo headphone jack, 1/8" (3.5 mm) TRS
  • Headphone impedance: 16 Ohms at 25 mW, 32 Ohms at 13 mW with THD+N: 0.02%
  • Speaker: Internal 2W mono speaker
  • Powered Speaker Output: Consumer line-level stereo or powered speaker output, 1/8" (3.5mm) TRS
  • Line Output: Consumer line level stereo output or amplified speaker, 1/8" (3.5mm) TRS
  • Line Out/Powered Speaker output impedance: 600 Ohm, unbalanced stereo
  • Line Input: Pseudo-balanced line input jack, 1/8" (3.5 mm) TRS
  • Key/Paddle Input: 1/8″ (3.5mm) TRS
  • PTT input: 1/8″ (3.5 mm) TS
  • DC Power Connector: Coaxial DC Power Connector, 2.1mm (cable included)

Mechanics
  • Without feet:
    Height: 6.75″ (17.1 cm)
    Width: 14″ (35.6 cm)
    Depth: 1.75″ (4.5 cm)
  • Weight: Approximately 4lbs (1.8kg)

Communication interfaces
  • Wi-Fi: Dual band 2×2 802.11a/b/g/n
  • Wi-Fi6: 802.11ax
  • Ethernet: 100/1000Mbps

Electric
  • Power: 10-15 VDC
  • Standard wall mount AC adapter
  • Battery: optional lithium-ion battery

Maestro A / B Battery Pack Specifications*



FlexRadio Systems recommends following the manufacturer's instructions for charging the battery pack. Not all battery packs can be charged while the USB charging or discharging cable is connected. To ensure safety, unplug the USB charging or discharging cable when charging the battery, unless explicitly permitted by the battery manufacturer. FlexRadio will not be responsible for any damage to the Maestro due to problems related to battery charging.

  • The batteries below meet the following specifications:
  • Maximum battery dimensions: 3″L (7.62 cm) x 6″W (15.24 cm) x 0.75″D (1.91 cm)
  • Power Connector: USB-A Female
  • Recommended power supply: 2.5A at 5V DC output
  • Auto Start: Preferred function: Triggers startup when a load is introduced

*Not sold by FlexRadio

Radio anytime, anywhere



Thanks to the SmartLink remote control, just turn it on and listen to the radio anywhere.

  • Plug and Play remote control
  • Built-in Wi-Fi and Ethernet
  • Truly wireless operation
  • No complex setup required
  • Operate anywhere, anytime
  • Across the country or across the world

Options

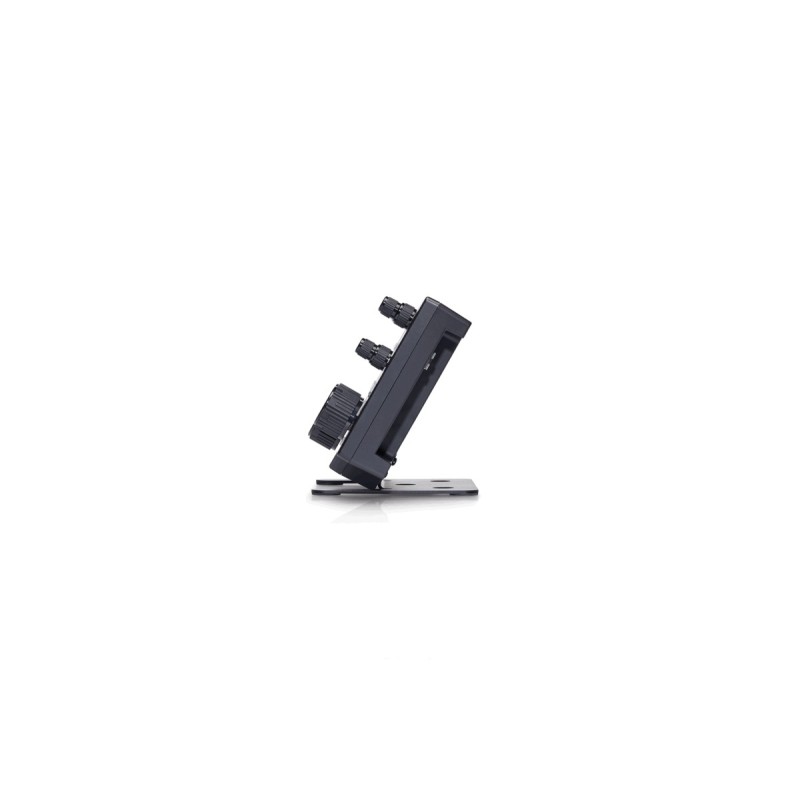

  • Tiltable hinged feet (constant torque)
  • FlexRadio FHM-3 handheld microphone
  • Soft carrying case
  • Plastic dust cover
