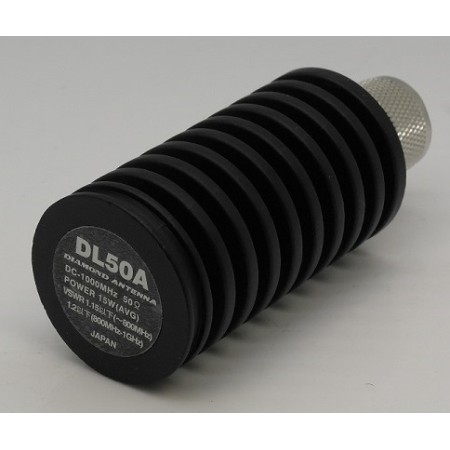

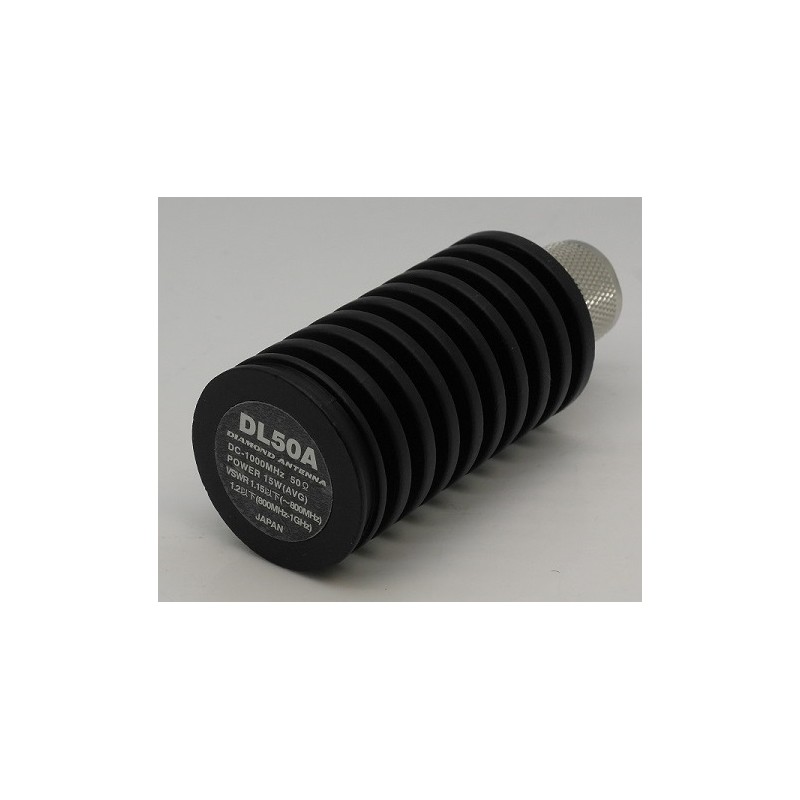

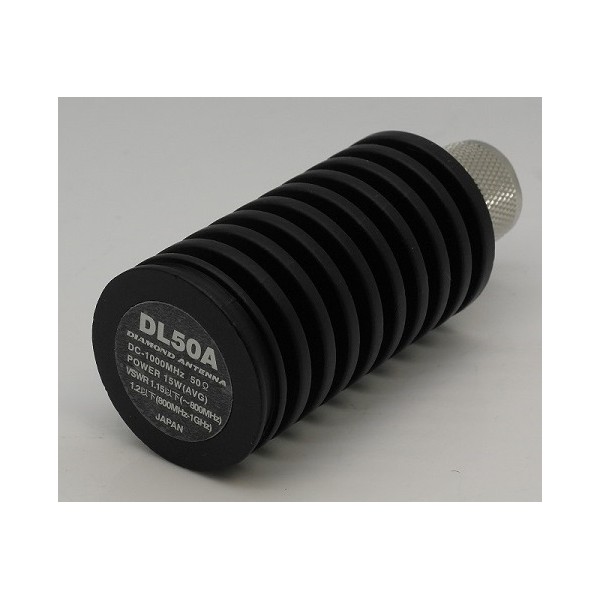

Ref: DL50A
Immediately available50 Ohm dummy load with PL connection for frequencies up to 1 Ghz
Dimensions: 32 x 81 mm
Frequency: DC up to 1000MHz
Power: 20W (intermittent AVG 5min Tx 5 min Rx), 50W (intermittent AVG 1min Tx 1 min Rx), 100W (intermittent AVG 30sec Tx 3 min Rx)
Impedance: 50 Ohms
VSWR: less than 1.2:1
Connection connector: UHF-M (PL259)
Data sheet
