Alpha Delta DX-LB PLUS - Antenna for 160-80-40-20-15-10 meter bands

Brand: Alpha Delta
Code manufacturer: DX-LB PLUS
Part Type: Wire Antennas
Product line: Alpha Delta single-wire multiband dipole antennas
DXE Part Number: ALF-DX-LB PLUS

Assembled wire antenna: Yes
Wire antenna type: multiband, resonant
Antenna power rating: Maximum 1,000W.
Antenna length flush: 100.00 ft.
Antenna Tuner Required: No
Connection type to power line: UHF female, SO-239
Minimum point height Recommended power supply: 35 feet
Wire Gauge: 12 Gauge
Dimension core insulator chord maximum: 0.313 in
Antenna weight flush: 5.90 lbs.
Quantity: Sold individually.
Notes: 160M and 80 M 600W CW/PEP, 40M 1000W CW/PEP, ICAS duty cycle

Information additional
Wire antenna band Frequency of the wire antenna
160 meters 1.8 MHz
80 meters 3.5 MHz
40 meters 7.0 MHz

20 meters 14.0 MHz

15 meters 21.0 MHz
10 meters 28.0MHz

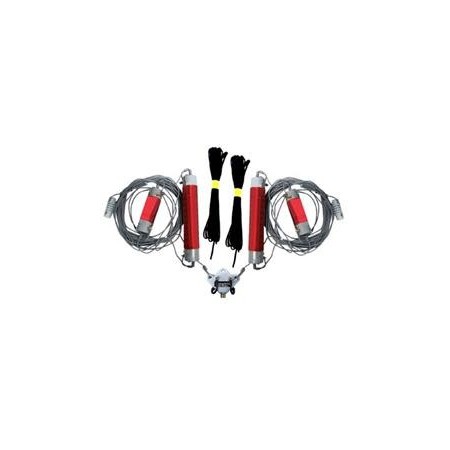

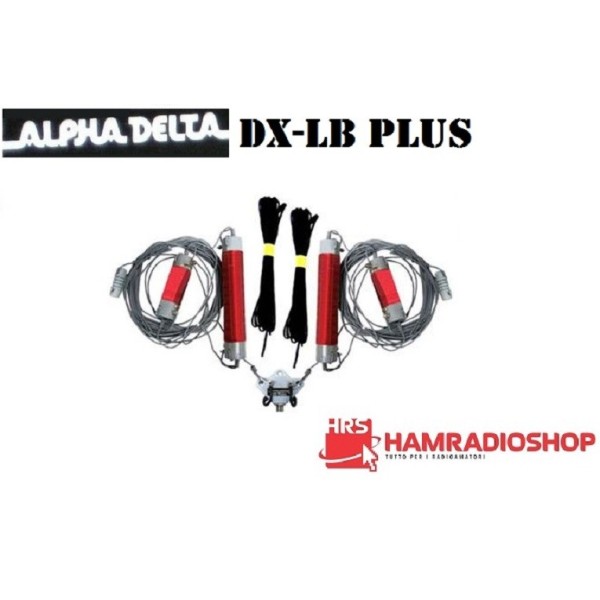

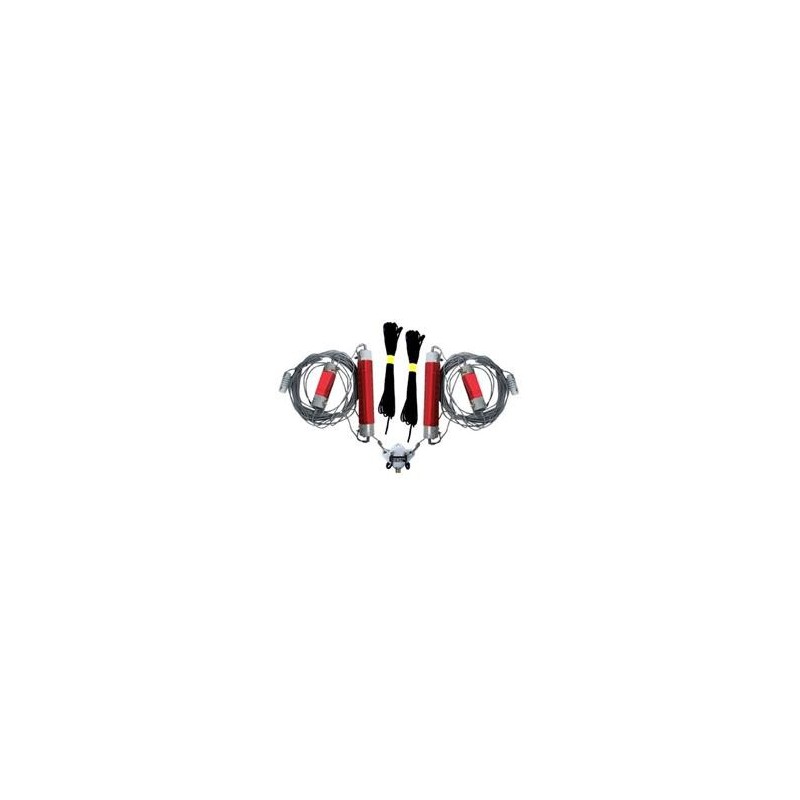

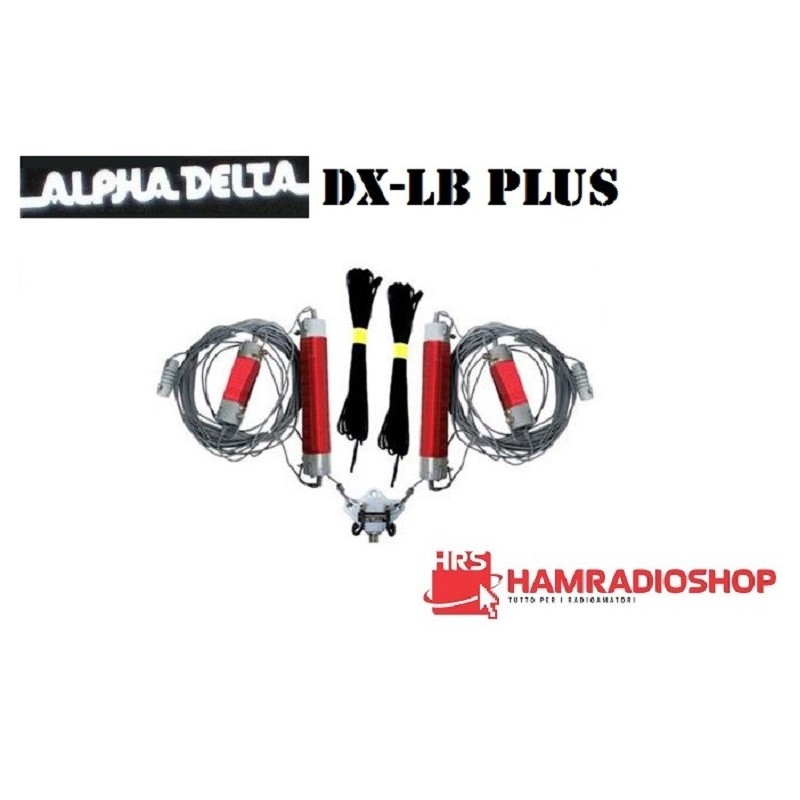

Multiband dipole antennas Alpha Delta single wire consists of the Delta Delta DELTA-C central insulator, from the terminal insulators and from an ISO-RES coil connected to the 80/40 meter wires. The wires are connected to the center insulator.

These antennas are shipped fully assembled and ready for installation. They use steel hardware stainless steel and 12 gauge solid copper wires. Their length overall is 82 feet for the DX-DD and 100 feet for the DX-LB Plus.

Thank you to their Hi-Q construction, the bandwidth on 80 meters is between 65 and 70 kHz. You need a wide range antenna tuner for greater frequency coverage over 80 meters.

These are of great value in multi-band dipoles for lower frequencies.
