Alpha Delta DX-B - Single sloper antenna for 160 80 40 30 meters

Alpha Delta DX-B

single sloper antenna for 160, 80, 40 and 30 meters

Alpha Delta Single Sloper antennas they are the ideal loaded quarter-wave solution for small spaces. The DX-B it is designed to cover 160, 80, 40 and 30 metres.

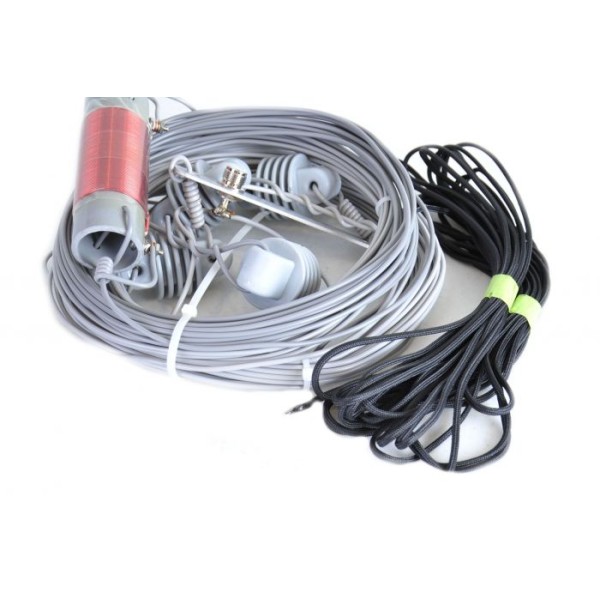

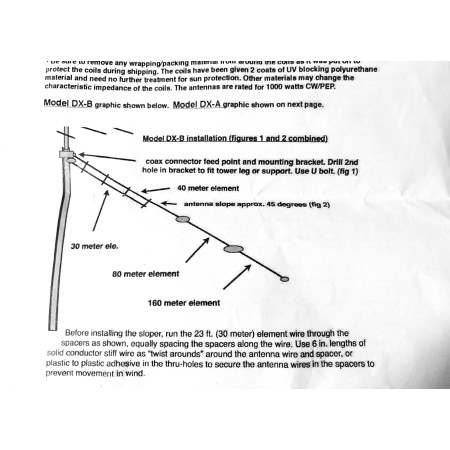

One arm, 18.2 meters long. Sloper antennas install as an inverted V with return on the ground made through the pylon or metal pole. These antennas they use stainless steel hardware, copper wire and efficient coils "Iso-Res" Alpha Delta RF winding.

The sloper antennas are designed for use on non-bolted truss with metal tie rods, with a directive in mind. The directive acts as a capacitive hat and helps to tune the sloper.

It is possible that the introduction of sloper antennas in a tower system that has other wire antennas connected can cause a slight detuning of the other antennas. Some installations require usage of a tuner.
