Bonito AntennaJet AAS300 - 3-output active antenna splitter 3 kHz-300 MHz

Ref: AAS-300

Last items in stock
€295.85
Tax included
rating Read the review
Average rating: 5/5 Number of reviews: 1
Usually ships within 24 hours.

Quantity

Guarantee safe & secure checkout

You can purchase this product in installments with Sella Personal Credit. Click here for more information.


HRS - OFFICIAL BONITO DISTRIBUTORS

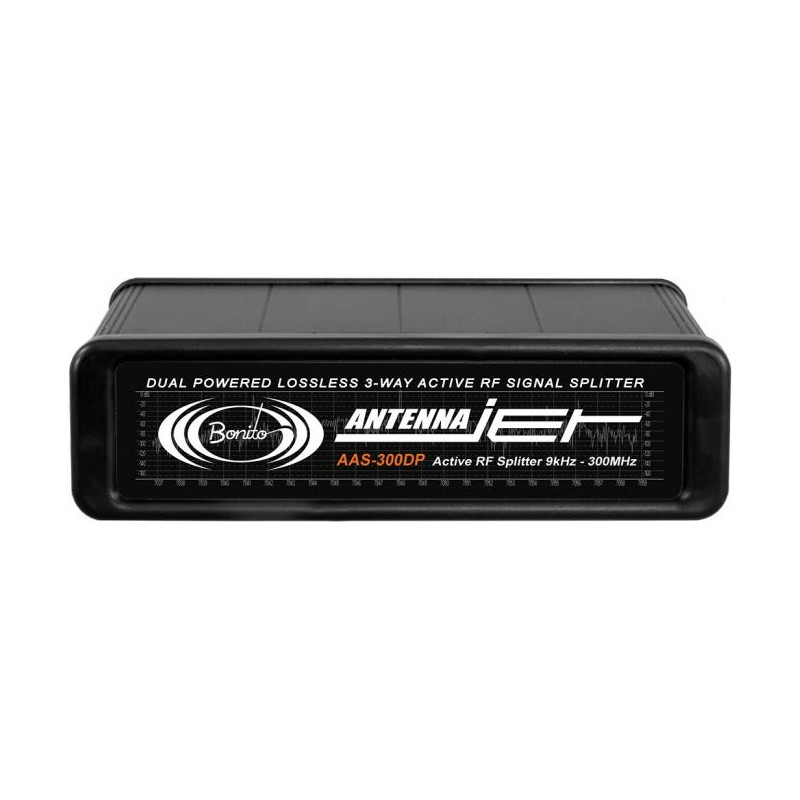

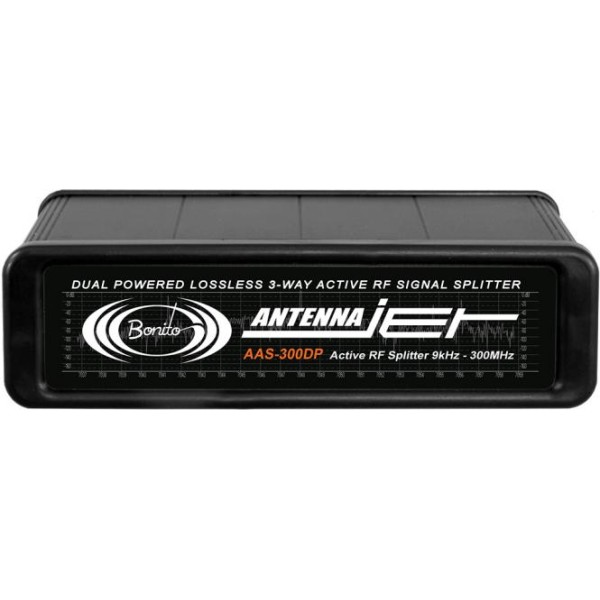

Bonito AntennaJet AAS300

3 kHz-300 MHz active 3-output antenna splitter

Splits an antenna across 3 different receivers:
Wide dynamic range
Wide frequency range (VLF - VHF)
High intermodulation suppression
High isolation between outputs
High reverse isolation
ESD protected inputs
USB and/or 5-12 Volt power supply
MADE IN GERMANY!

Bonito's active antenna signal splitter "AntennaJet AAS300" splits the signal from a single antenna to 3 different receivers simultaneously. AntennaJet features a wideband (>300 MHz) and very low noise amplifier and can share one antenna with up to 3 different receivers that can be tuned to completely different frequencies, without having to change the antenna cable or even press a button.

Due to the extraordinarily high decoupling of the outputs (70 dB), interference between connected receivers is avoided. At the same time, the emission of interference to the antenna is effectively suppressed.

Up to three receivers can be connected. Unconnected outputs can remain open and do not need to be terminated. With its ESD protection circuit, the antenna input is protected from voltage spikes or short circuits*.

* ESD protection does not replace lightning protection!

Frequency Range 9KHz - 300MHz (-1dB) (@ 450MHz -6dB)
BNC Connector
Impedance 50 Ohms
IP3 +35dBm typ. <10MHz +20dBm typ. >100MHz
Power Supply USB-B - Female
Power consumption max.50mA (5V DC)
Insertion loss max. 1.5dB typ.
ESD input protection 30KV; max. pulse power 350W (8/20µs)
Input connector BNC
Maximum allowable input power max. 0.5dB typ.
Output connectors BNC
Dimensions 115 x 90 x 32mm / 4.5 x 3.5x 1.2 in
Weight 300gr (10.58 oz)
Conformity: CE, FCC
Made in Germany Yes

AAS-300
1 Item

Data sheet

Mpn
AAS300
Guy
Accoppiatori d'antenna
Compatible brand
Generico
Sub-Categories
Accoppiatori d'antenna
Bonito antennaJet
rating 5
accessoriomolto utile per utilizzare piu di 1 scanner
