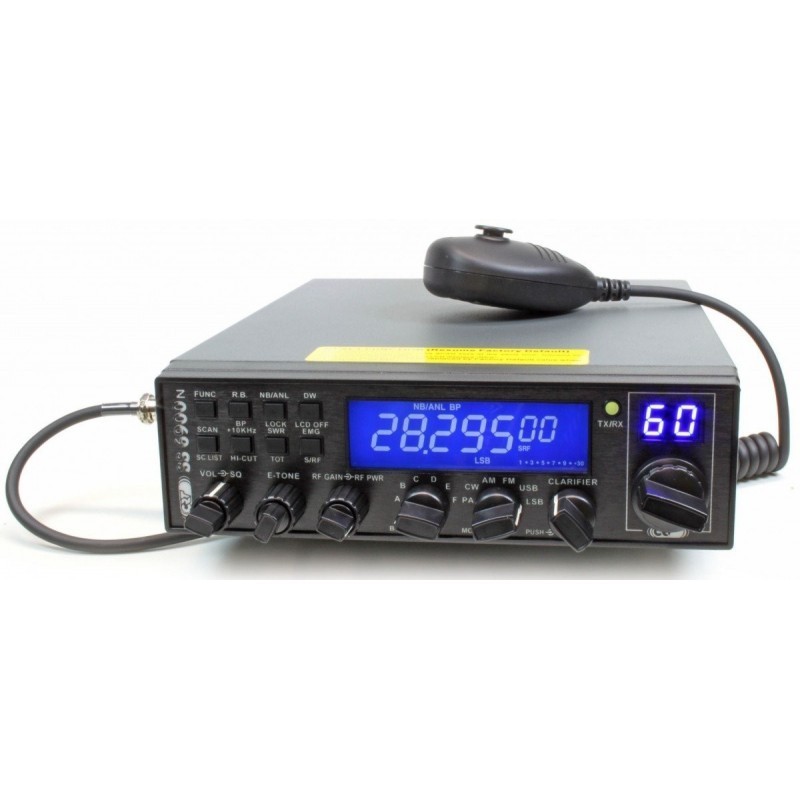

SUPERSTAR SS-6900N CRT - HF/CB AM/FM/SSB transceiver
    SUPERSTAR SS-6900N CRT - HF/CB AM/FM/SSB transceiver

SUPERSTAR SS-6900N CRT - HF/CB AM/FM/SSB transceiver

Ref: CRT6900N

Immediately available
€209.00
Tax included
rating No review at the moment
Usually ships within 24 hours.

SUPERSTAR CRT SS-6900N MOBILE CB TRANSCEIVER

SS-6900N Modes: AM / FM / USB / CW / PA

Frequencies: 28-29.7 MHz Modes: AM / FM / USB / CW / PA

OUTPOWER: 12W AM, 40W FM - 35W SSB

4 pin UP/DOWN microphone with automatic squelch

Characteristics:

  • Blue Counter 6 Digits LCD Display and Blue Channel
  • Blue backlight S-meter Automatic squelch (ASC)
  • Roger beep
  • RF Gain
  • Noise Blanker and ANL HI-CUT function
  • Emergency call
  • Dual Watch Function
  • Scan +10KHz
  • High input voltage protection
  • Protection against unfavorable SWR
  • Echo adjustment (delay and repeat)
  • AM/FM power level adjustment
  • Multifunctional clarifier
  • Keyboard lock
  • Programmable via software:

TOT (Time-out-Timer) Frequency

step: 10Hz-100Hz-1KHz-10KHz

Roger beep

CW tone

I am Squelch

level of protection

Display:

TX frequencies, SWR, power level

AM/FM/SSB Squelch Level

Supply voltage protection

2 year warranty

Band expansion : Espanso di Banda
Quantity

Guarantee safe & secure checkout

You can purchase this product in installments with Sella Personal Credit. Click here for more information.


CRT SS 6900V

Version 2022 V7

AM/FM/USB/CW/PA Mobile Transceiver -28-29.7 MHz

The SuperStar SS-6900 (v7) is an HF transceiver with the unique feature of being able to be programmed via Windows with a PC and a specific cable.

Behind this simple black design is an impressive number of functions and features: 40 Watt FM output (40 Watt SSB), simultaneous frequency and channel display, 6 programmable bands, echo, channel scan, PA, RF gain, dual watch, time-out timer, power supply volt indicator, roger bleep, adjustable power, noise blanker & ANL, built-in SWR meter, hi-cut filter and overvoltage protection system.

The radio has the ability to be programmed with 6 bands of 60 channels for export use from 25.615 to 30.105. Programming is done via USB cable and a PC with Windows 2000, XP, Vista or Windows 7 operating system. Through a simple modification (pressing two buttons at power on) the operation can be switched between extended CB mode (from 26.615 to 28.305) and amateur radio mode for the 10 meter band.

V7 Version Improvements:

NEWS :

- VOX

- CTCSS/DCS

- RX compander

- TX NoiseGate

- Micro type selection: electret or dynamic

- Program cable connector on the backside

- Extra ventilation

Data sheet

Standard AMATEUR RADIO (restriction: in emission use with amateur radio certificate obligatory)
Fashion AM / FM / USB / LSB / CW / PA
Frequency range 28 - 29.7 MHz
Power 12 Watts AM / 40 Watts FM / 35 Watts BLUE (adjust level power AM/FM/SSB)
Step of increment 10Hz / 100Hz / 1kHz / 10kHz
S-METER Yes
SWR METER Yes: protection with forbidding TX if TOS to high
CLARIFIER Yes : (multifunction) clarifies the voice in SSB
SQUELCH Yes : elimination of background noise (level adjustment in AM/FM/BLUE)
ROGER BEEP Yes : TX beep end
RF-GAIN Yes : adjust sensitivity on RX
MICRO-GAIN Yes : (via menu) adjusts the gain of increasing or decreasing the audio power
CTCSS / DCS (encoder/decoder) 38 CTCSS / 104 DCS: digital and analog code to activate repeater like selective tone
Filters NB/ANL Yes : noise filters
Filters NB/HI CUT Yes : noise filters
DOUBLE WATCH function Yes
VOX function Yes : this feature activates your microphone sound (hands free)
TOTAL function Yes : timeout timer
SCAN function Yes: automatic search of busy channels
COMPANDER function Yes : TX with a clear voice
Various functions Emergency call + Adjust echo (delay&repeat) + Keyboard lock + (+)10 Khz function + CW tone + Protection against to high input voltage&to unfavorable SWR + Squelch level protection + TX Noise Gate
Bonus Microphone type selection: electret or dynamic
Mike UP/DOWN selection + 4 pins plug in front panel with automatic squelch
Display LCD display and channel blue + Blue back lighting
Level display Blue frequencies meter 7 digits + TX frequencies, SWR, power level …
Options Programming cable + software
Programmable by software Yes - Connector on the back of the radio without the need to open
Includes Detachable power cable + fixing bracket + screws + microphone holder + manual in French&English
Size 28 x 26 x 6 cm
Weight 1.85 kgs
Guarantee 2 years
CRT6900N
1 Items

Data sheet

Mpn
6900N
Guy
VEICOLARE
Compatible brand
Generico
Sub-Categories
C.B.
Radioamatoriali veicolari

Specific References

ean13
3140650006469
