Ref: FTA850L
Immediately availableFTA-850L

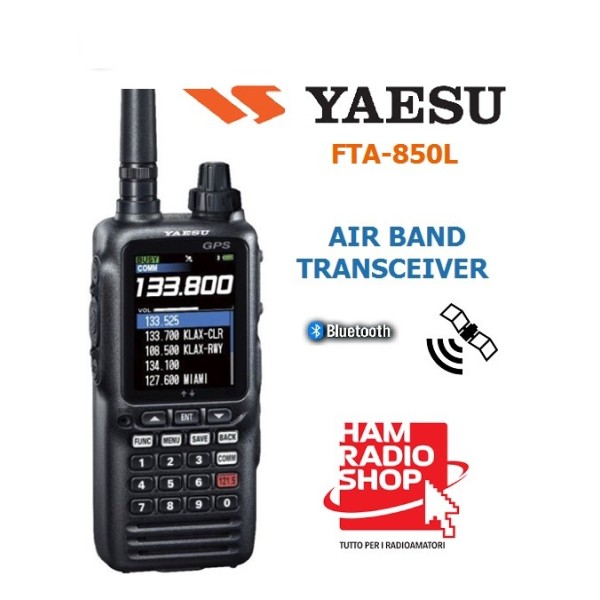

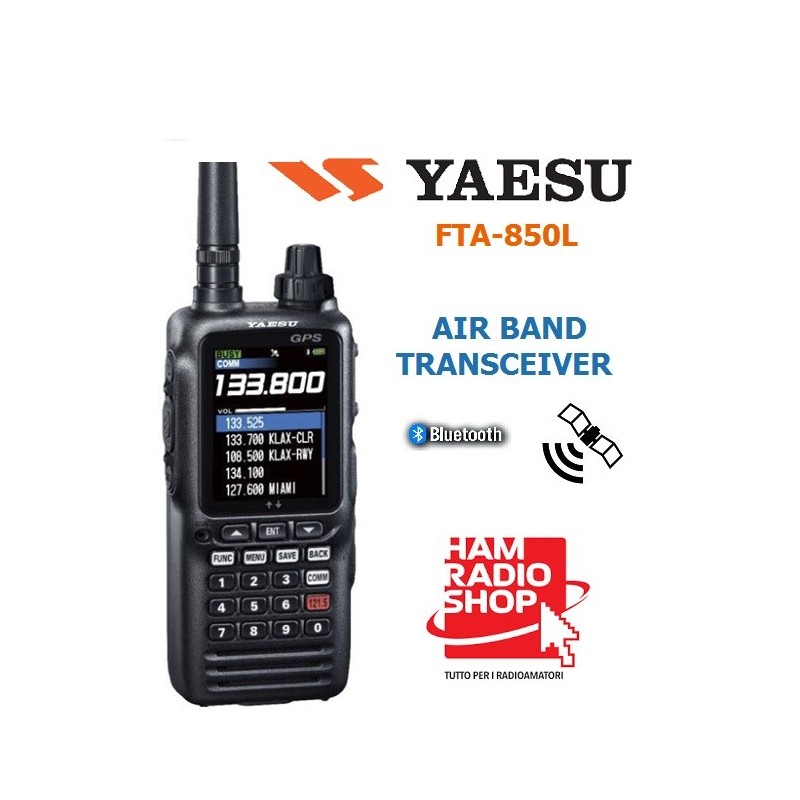

New Air-Band Handheld Transceiver with 2.4-inch TFT Full-Color Display
We are pleased to present the new FTA-850L portable transceiver – Air band. The new FTA-850L is a transceiver
complete laptop with the precious color LCD. The FTA-850L transmits and receives on the aeronautical communication band
international ("COM" band; 118 to 136.975 MHz) and also provides VOR and ILS navigation on the band
"NAV" (108 to 117.975 MHz).
The basic and advanced features of the new FTA-850L are:
- TX output power 6W (air band: AM 6W, PEP type, 1.8W carrier)
- Huge 2.4 inch TFT color display (240 x 320 pixels)
- Water protection - IPX5 rating
- Rugged construction: MIL-STD-810H certified
- High volume audio output (800mW)
- Dual Frequency Display (DD): Two channels are displayed at the top and bottom of the screen
- Bluetooth® operation with commercially available Bluetooth headset or SSM-BT10 . optional YAESU
- ILS navigation (Locator and Glide Slope)
- VOR navigation
- Flight route display and navigation with a highly integrated GPS unit sensitive
- GPS location recording operation available*
- Intuitive menu screen with icon display
- Compatible with 8.33kHz narrowband
- Reception from the NOAA weather channel**
- NOAA weather alert**
- 400 Memory Channels with 14 alphanumeric characters
- Backlit keyboard and display with dimmer
- Noise cancellation function for both transmission and reception of the audio
- External DC input for operation and charging
- Channel configurations can be easily reprogrammed using PC programming software -
YCE46
- New optional quick release holster - SHB-110 (optional)
The new FTA-850L will be available in October 2021. We accept your orders by now!
