ULTRAFLEX 7 Messi & Paoloni - Coaxial Cable - 100 meter reel
Ref: ULTRAFLEX7/100m
Immediately available
€223.50
Tax included
Read the review
Usually ships within 24 hours.
Average rating:
5/5
Number of reviews: 1

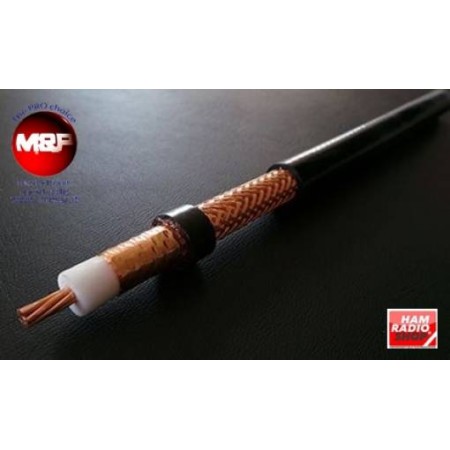

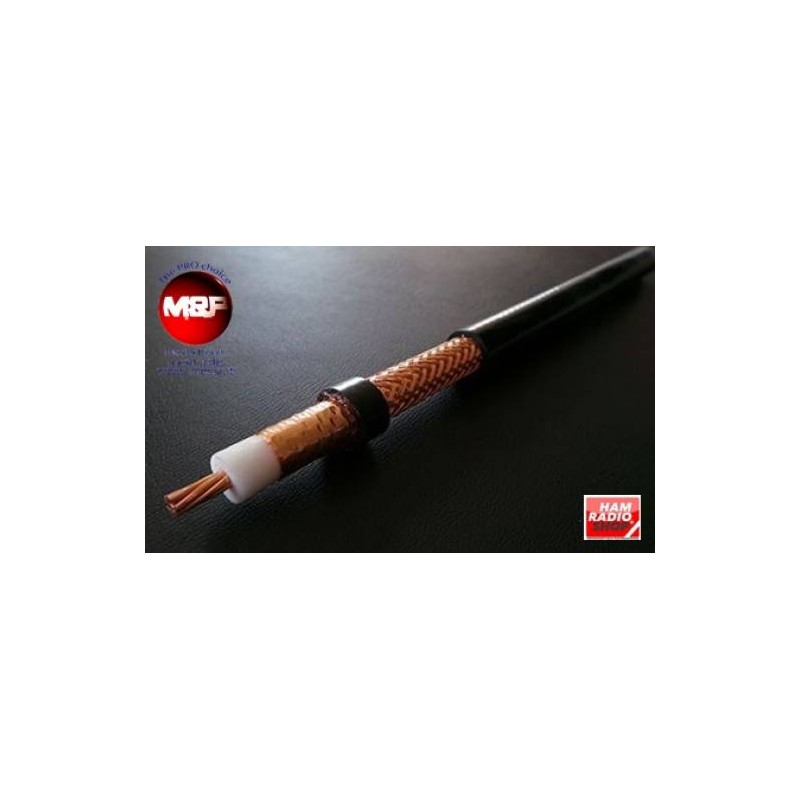

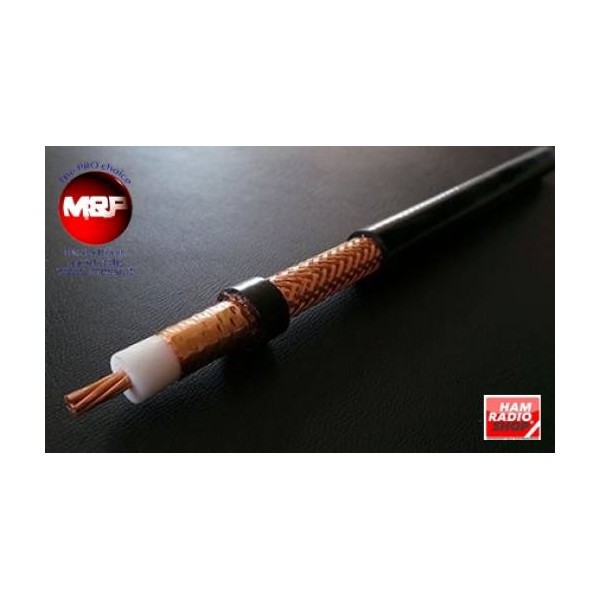

ULTRAFLEX 7
100 meter reel
Professional coaxial cable of extraordinary flexibility, with stranded core for amateur radio. The external protective sheath is made of black PVC, resistant to UV rays. The cable guarantees exceptional performance in terms of mechanical flexibility and electrical characteristics. Despite its limited size (7.3 mm) its performance is so high that it outclasses the RG 213 U (10.3 mm) and overshadows the few competing cables of the same diameter.
Nominal impedance +/-3 Ohm | 50 Ohms | |
EXT/INT curvature | 68/34 mm | |
Capacitance +/-2 pF/m | 75 pF/m | |
Propagation speed | 83% | |
Shielding Efficiency | >105 dB (Class A++) | |
Internal conductor resistance | 7.3 Ohms/Km | |
External conductor resistance | 9.8 Ohms/Km | |
Sheath Tension Test | 4 kV | |
Weight (100m) | 6.9 kg | |
MAX peak power | 4400 WATTS | |
Installation temperature | -40° to +60° C | |
Temperature in use | -55° to +85° C |
ULTRAFLEX7/100m
Data sheet
- Mpn
- ULTRAFLEX-7
- Guy
- Cavi 50 OHM
- Compatible brand
- Generico
- Sub-Categories
- Cavi 50 OHM
Specific References
- ean13
- 0644730929585
Ottimo
5
2021-03-27
Gianni
Cavo di qualità all’altezza del nome.
