M&P-HYPERFLEX 13

Messi & Paoloni Coaxial Cable - 50 meter reel

M&P-HYPERFLEX 13

[12.7mm Cable]

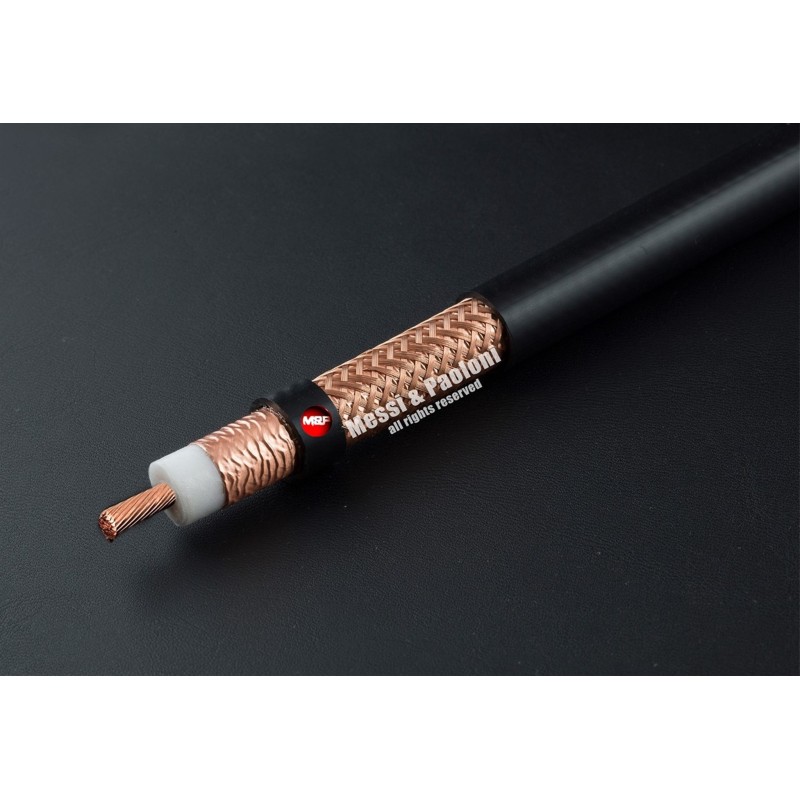

This new model from Messi & Paoloni has been specifically designed for use with high power linear amplifiers and for lovers of high frequency "MOON Bouncing", it is a further evolution of the M&P-ULTRAFLEX 13, as the wires in the conductor central have increased to 37 (compared to the previous 19): this improvement brings the cable to even greater flexibility, as well as improvements in attenuation.

Its peculiar characteristics can be summarized as follows:


Extreme flexibility : a sophisticated copper-stranded central conductor ( 37 wires instead of 19 ) guarantees a perfect connection between the cable and motorized antennas.

Redesign of the dielectric: surprising attenuations up to 10 Ghz. Despite measuring just 12.7mm, (effective 0.50"), this premium model rivals larger 14.6mm competing models or 15mm rigid corrugated copper cables, reducing the number of 4 to 2 connectors required (because no additional flexible cable is needed for the final connection to the antenna).

Shielding efficiency: > 105 dB (SA), and greater robustness, obtained by adding 24 more wires to the braid, for a total of 168 wires , (70% coverage + 100% shielding tape). This leads to a notable reduction in background noise. Furthermore, the braiding machines used have 24 spindles, instead of 16, guaranteeing 50% more crossings.

Reduction in weight and bulk compared to its direct competitors , (for the purposes of reducing stress on the cable in the "hanging and swinging" section connected with motorized antennas). The considerable power handling and surprising performance compared to some bulkier, stiffer and heavier competitor cables make it a must for ambitious installations (particularly EME and motorized antenna applications).

The external protective sheath is made of black PVC, resistant to UV rays. We remind you that all PVC sheaths give greater flexibility to the cables but do not make them suitable for burial. Every cable can be made with polyethylene sheath only on request and for reasonable quantities in order to be able to bury them.

Professional UHF (PL) connectors and "N" connectors available with video instructions for assembly.

HYPERFLEX13-50M

Data sheet

Mpn
HYPERFLEX 13
Guy
Cavi 50 OHM
Compatible brand
Generico
Sub-Categories
Cavi 50 OHM
