- Out-of-Stock

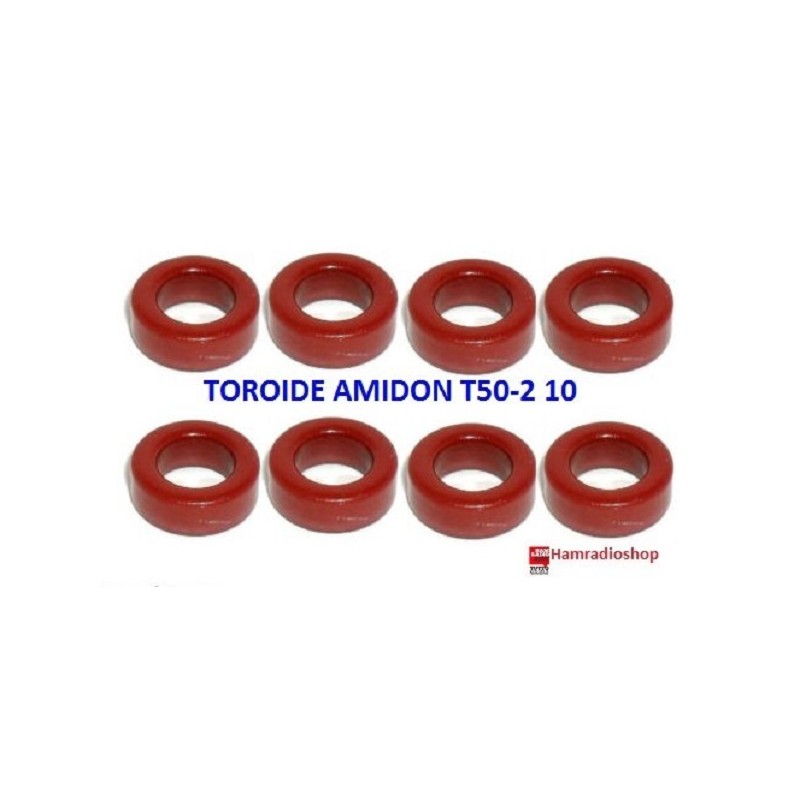

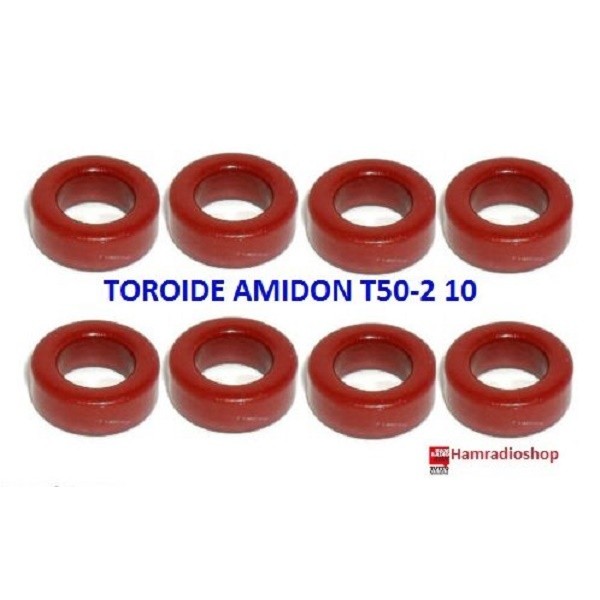

![AMIDON T50-2 TOROID 10 PIECES AMIDON T50-2 TOROID 10 PIECES](https://www.hamradioshop.it/1233-home_default/t50-2-toroid-10-pieces.jpg)
Ref: T50-2
Out-of-StockT50-2 quantity 10 pieces Optimum Resonant Circuit Range 250 KHz - 30 MHz
Physical Dimensions OD = .500 in / 12.7 mm +/- 0.02 in ID = .303 in / 7.70 mm +/- 0.02 in Ht = .190 in / 4.83 mm +/- 0.02 in |
A L =4.9 +/- 5 % uH=(A L *Turns 2 )/1000 |
Temperature Stability (ppm /°C) = 95 productor:micrometals |
Color Code = Red / Clear |
Optimum Resonant Circuit Range for highest Q and lowest core loss 250KHz - 30MHz |
Data sheet
