BRAND NEW! SV6301A Vector Network Analyzer – Your Ultimate Portable VNA for RF!

Hams and professionals alike, get ready to revolutionize your approach to RF measurements! We are excited to introduce the SV6301A , a portable vector network analyzer (VNA) that packs lab-grade performance into a compact, rugged design. If you’re looking for precision, versatility, and reliability, your new ally has arrived.

The SV6301A: Why is it Essential for Your RF Operations?

This powerful VNA is designed to give you total control over antennas and RF components, with an impressive frequency coverage ranging from 1 MHz up to 6.3 GHz . Its capabilities make it the perfect tool for:

• 360° Antenna Test: From optimizing shortwave (MF/HF) antennas to analyzing VHF/UHF antennas, it is ideal for ISM, WiFi, Bluetooth, GPS antennas and, of course, all your beloved amateur setups.
• Complete RF Component Analysis: More than just antennas! Accurately measure filters, amplifiers, attenuators, cables, power dividers, couplers, duplexers and every other critical RF component.
• Cable Diagnostics with TDR Function: Thanks to the TDR (Time Domain Reflectometer) function, measuring cable length and quickly identifying faults or imperfections are now quick and easy, saving you precious time.

Technical Specifications That Make the Difference!

The SV6301A packs advanced technology into an incredibly convenient package. Here's what sets it apart:

• Exceptional Dynamic Range: Boasts a dynamic range of 75 dB for S21 measurements (up to 3 GHz) and 50 dB for S11 (up to 3 GHz), giving you incredibly detailed and accurate readings across a wide spectrum of applications.
• Fast and Detailed Measurements: With a sampling rate of 400 points/s and the ability to acquire up to 1001 sample points , you get near real-time analysis, essential for dynamic optimization.
• Rugged and Shielded Construction: The all-metal chassis not only gives the SV6301A exceptional durability, but also provides effective shielding against electromagnetic interference, ensuring the utmost reliability of your measurements in any environment.
• Frequency Accuracy: Maintains excellent accuracy of $< \pm1$ ppm (<140MHz) and $< \pm5$ KHz (>140MHz), for consistently reliable results.

Intuitive Design and Maximum Portability for the Modern Operator

Ease of use is at the heart of the SV6301A's design, making it perfect for both benchtop and field use:

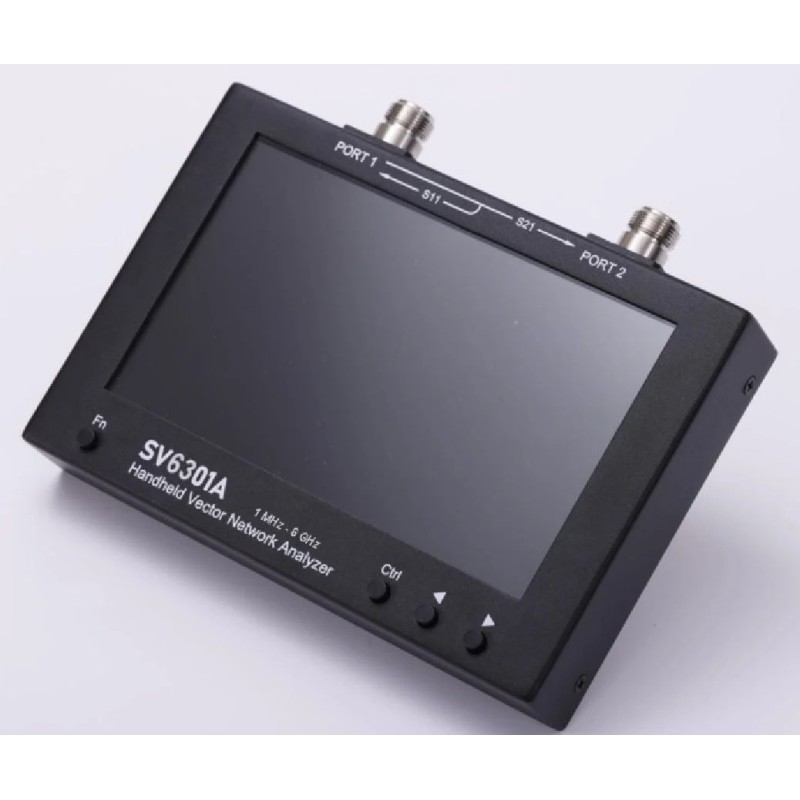

• Large Intuitive Touchscreen: The 7-inch touchscreen display (1024 x 600 resolution) provides clear and detailed data viewing. Four additional physical buttons provide quick and precise control of frequency, scale, markers and screenshot functions.

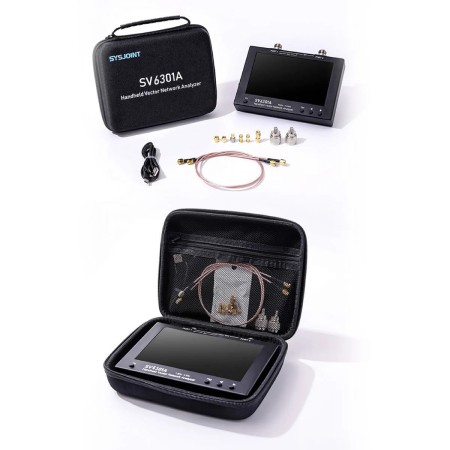

• Professional N-Type Connection: Equipped with reliable N-Type connectors for RF interface . And don't worry about compatibility: we include a pair of N to SMA adapters to easily connect devices with SMA interface.
• Long Battery Life for the Field: Equipped with two built-in 3350mAh 18650 lithium batteries , it offers up to 4 hours of operating autonomy , ideal for long work sessions. Charging is convenient and universal via USB Type-C (cable included).
• Built-in Memory: With an 8GB internal memory card , you can save calibrations, .snp files, screenshots and other essential data directly to the device, without the need for external media.

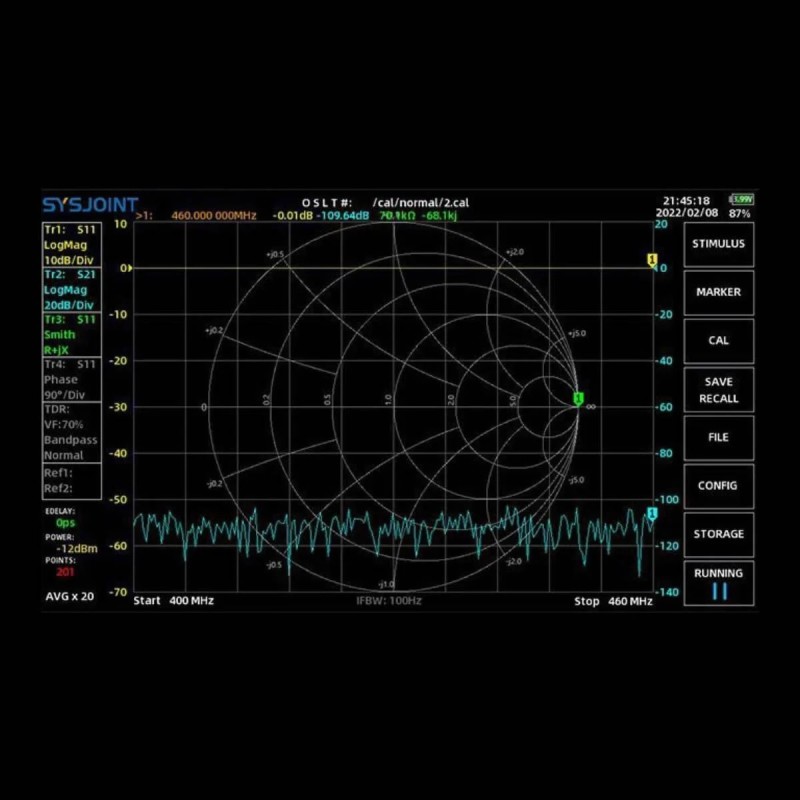

• Comprehensive Display Formats: Supports a wide range of display formats, including Log Mag, Linear Mag, Phase, Smith R+jX, Smith R+L/C, VSWR, Polar, Group Delay, Resistance, Reactance and many more, for in-depth analysis every time.
• Ergonomic and Compact Design: With dimensions of 190 x 130 x 30 mm and a weight of only 1.15 kg , it is extremely portable. The practical integrated stand on the back makes it easy to use on any flat surface.
