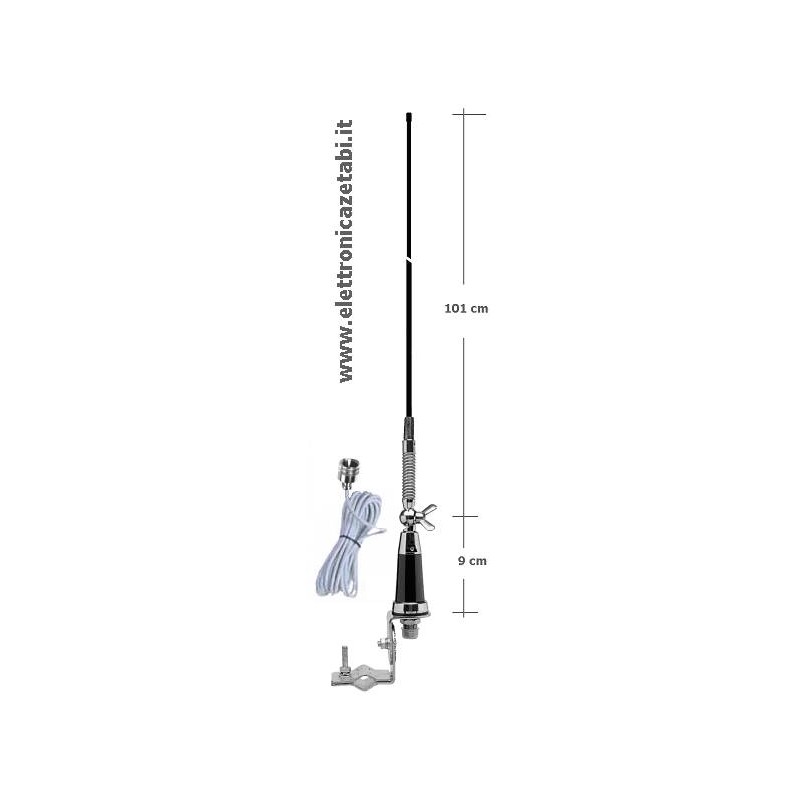

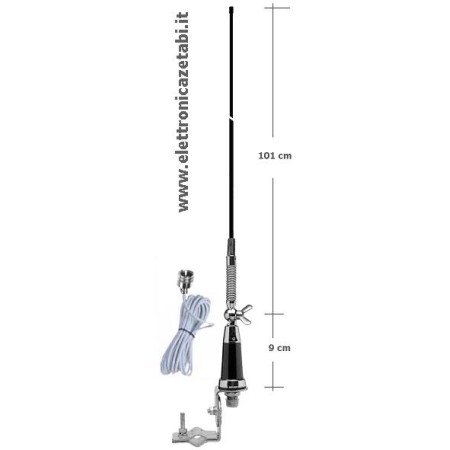

Sirio GL-27 black - CB antenna for caravans with ASP-1 mirror connection

SIRIO GL-27

CARAVAN ANTENNA WITH MIRROR CONNECTION ASP-1 BLACK

It does not need a metal reflective surface

The antenna does not require a ground plane and is therefore particularly suitable for campers, caravans, boats, trucks and vehicles without a ground plane. Pre-calibrated in the factory, it is always advisable to check with a specific instrument but if installed correctly it does not require further adjustments. Radiating fiberglass stylus mounted on a steel spring which guarantees robustness and flexibility. The butterfly lock joint allows you to remove, fold down or tilt the stylus to facilitate installation and storage. An adjustable support is supplied thanks to which it is possible to install it on roof racks, mirrors and tubulars in general, whether vertically, horizontally or inclined.

MAIN FEATURES

- Base loaded antenna;

- Operating frequency 26-28 MHz;

- Impedance: 50 ohm;

- Omnidirectional irradiation;

- Vertical polarization;

- Bandwidth +/- 5500 KHz;

- Collapsible stylus;

- Power 50 Watts short time;

- Electrically grounded;

- Female UHF connector for PL259;

- Black stylus with chrome details;

- 4 meter long RG58 WHITE cable supplied with PL259 connector;

- Height approximately 1140 mm;

- Weight approximately 430 g;

IN THE PACKAGE:

- GL 27 antenna;

- White RG 58 cable;

- Adjustable support;

- Gasket, ring nut and bolts required
