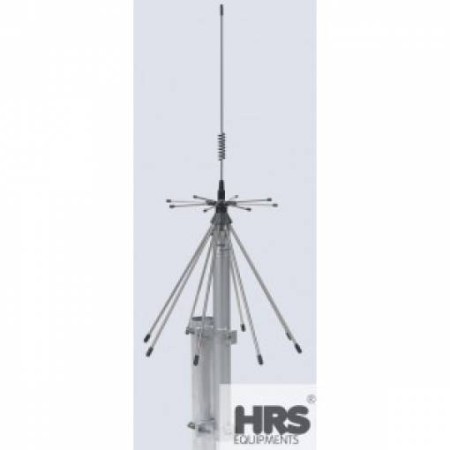

Sirio SD-3000/N Discone Antenna 300-3000 MHz

SD 3000 / No Discone antenna

P/N 2109305.00 SD 3000 No

ELECTRICAL DATA:

- Type : Discone

- Frequency range: RX band: 300-3000 MHz
TX band (@ SWR 2?): 340-535, 545-960, 1180-1380, 1660-1910, 1980-3000 MHz

- Impedance: 50 Ohm

- Radiation (H-aircraft): 360

- Omnidirectional

- Radiation (E-plane): frequency dependent, see the model

- Angle: frequency dependent, see model

- Polarization: vertical linear

- Gain: 0 dBd - 2.15 dBi @

- Lower frequency

- Max. Power (CW) @ 30 C: 200 Watts

- Connector:

SD 3000 U: UHF-female, gold-plated center pin
SD 3000 N: N-female, gold-plated center pin

MECHANICAL DATA:

- Materials: stainless steel, chromed brass, nylon

- Wind load / resistance: 32 N @ 150 km/h / 150km/h

- Wind surface: 0.03 m?

- Height (approx.): 725 mm

- Weight (approx.): 830 gr

- Radial Cone Length (approx.): 550 mm

- For pole mounting: 25-54 mm

CHARACTERISTICS:

- Base radio station;

- Omnidirectional;

- Unit profit;

- Extremely broadband suitable for computer use scanner;

- Transmission capability in different Ham bands;

- Perfect protection against the worst conditions atmospheric;

- Stainless steel and radial screws;

- Equipped with anodized aluminum bracket for easy installation simple;

- 17/7 PH stainless steel cylindrical whisk P / N 2,109,205.00 SD 3000 U
