SDRplay RSPdx R2 - 1kHz to 2GHz SDR receiver with a 10MHz bandwidth

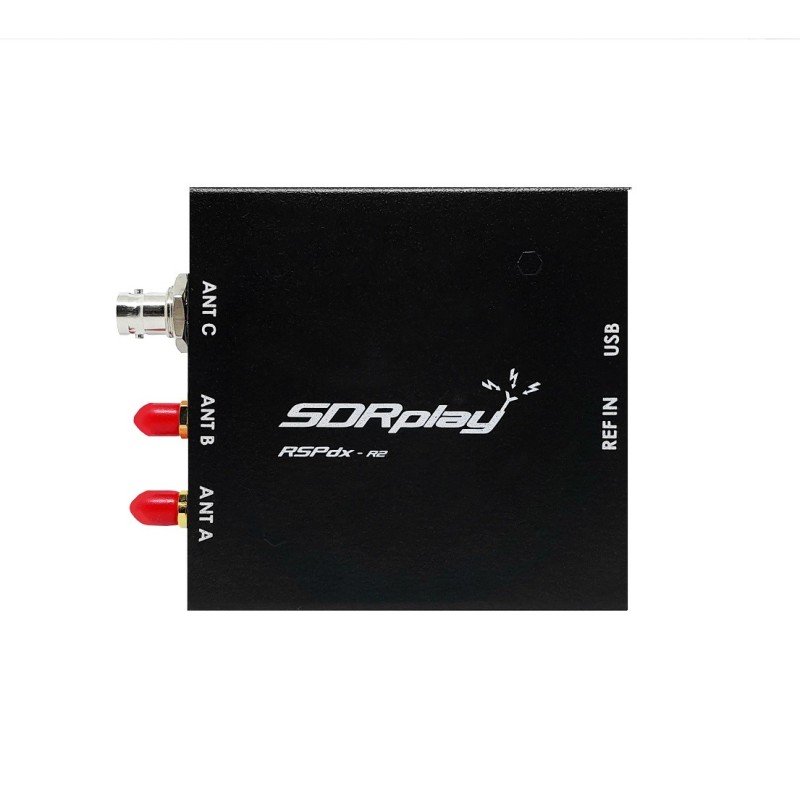

SDRplay RSPdx-R2

It is an improved version of the popular RSPdx and is a full-featured 14-bit wideband SDR that covers the entire RF spectrum from 1kHz to 2GHz. Combined with the power of readily available SDR reception software (including "SDRuno" for Windows and cross-platform "SDRconnect" provided by SDRplay) you can monitor up to 10 MHz of spectrum at a time. The RSPdx provides three software-selectable antenna inputs and one external clock input. All it needs is a computer and an antenna to provide excellent communications receiver functionality. A documented API allows developers to build new demodulators or applications around the platform.

ADVANTAGES AND MAIN FEATURES

_______________________________________________________________________________________________

• Covers all frequencies from 1kHz to VLF, LF, MW, HF, VHF, UHF and L-band up to 2GHz, seamlessly

• Receives, monitors and records up to 10 MHz of spectrum at a time

• Significantly improved noise performance below 1 MHz (i.e. for some MF, LF and below).

• Improved dynamic range below 2 MHz in both tuner and HDR modes.

• Sub-2 MHz HDR mode offers advantages in terms of dynamic range and overall selectivity

• Software selectable choice of 3 antenna ports

• External clock input for synchronization purposes or connection to GPS reference clock for extra frequency accuracy

• Excellent dynamic range for difficult reception conditions

• Free use of Windows-based SDRuno software (check website for supported versions)

• Free use of SDRconnect SDR and server software for Windows, MacOS and Linux (check website for supported versions)

• Cross-platform driver and API support including Windows, Linux, Mac, Android and Raspberry Pi 4/5

• Strong and growing software support network

• Calibrated S-meter/RF power and SNR measurement with SDRuno (including data logging functionality to .CSV file)

• Documented API provided to enable demodulator or cross-platform application development
