Ref: RSP1A

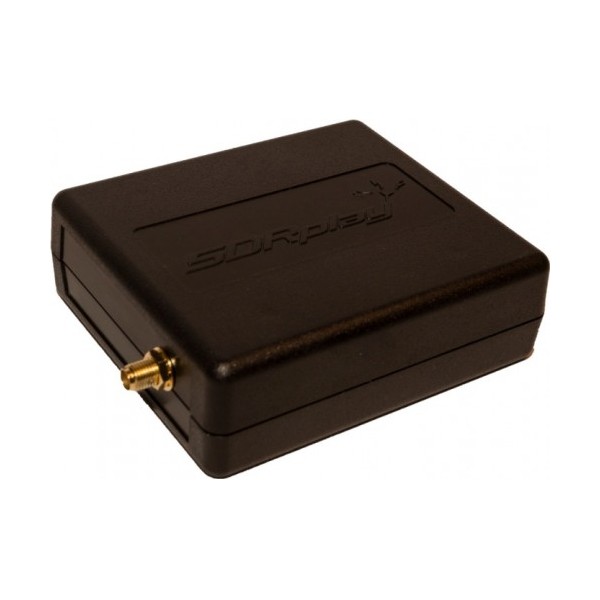

Immediately availableSDRplay RSP1A
1kHz to 2GHz SDR receiver with a 10MHz bandwidth
Multiple receivers can be active simultaneously on the sampling bandwidth (up to 10 MHz).
Integrated FM and MW broadcast attenuation filters, already set up for DAB broadcast attenuation
Dedicated band pass filters for each HF band, for all features consult the manual
Already set up for: Tmate, Omnirig, Input I/Q from multiple sources, the RSP2 and RSP2PRO versions also accept high input impedance antennas
RDS working up to a ratio of 10 dB S/N, excellent for DX FM broadcast
CLICK HERE TO DOWNLOAD THE VARIOUS SOFTWARE, DRIVERS AND MANUALS
• Multiple “Virtual Receivers” that allow simultaneous reception and demodulation of different types of signals within the same receiver bandwidth.
• A selectivity filter with a final rejection greater than 140 dB.
• A unique distortion-free dual-stage AGC with fully adjustable parameters.
• Multiple notch filters with adjustable BW up to 1Hz, Notch Lock function.
• A unique synchronous AM mode with selectable/adjustable sidebands, dedicated PLL input filter and selectable PLL time constants.
• SNR (stereo noise reduction), with a proprietary noise reduction algorithm for stereo transmission.
• AFC for FM signals.
• Calibration for frequency errors of the receiver.
• Class-leading audio quality
• Calibrated S-meter and power measurements
• RDS support with "DX Mode" for low signal environment
• Active noise cancellation
• CAT and Omnirig control
• SSB/AM mode and AM synchronous mode
• WBFM and NFM with AFC
Data sheet
Specific References
