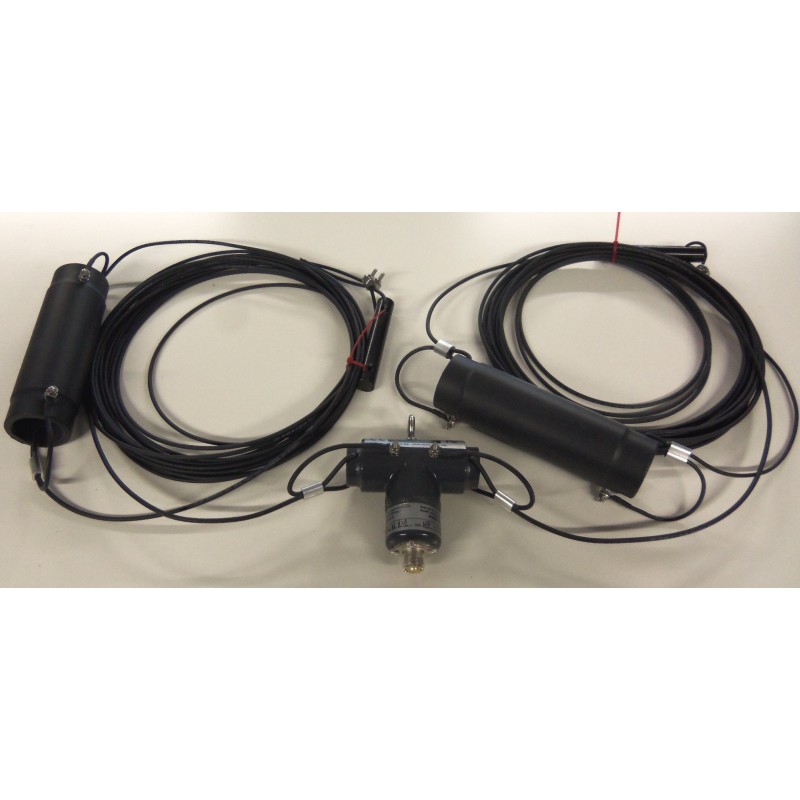

Prosistel PST2-4080C Loaded wire dipole 40-80

PST2-4080C

Small-sized dual-band wire antenna, designed to be installed in confined spaces. Full size elements on 40m, with coverage of almost the entire band. The loading coils allow use in 80m albeit in a fairly narrow slice of around 30KHz. For optimal operation, it is recommended to mount it at least 5-6m from the ground with an inverted V, with an opening of approximately 100-110 degrees. The antenna is pre-calibrated to operate in the center of both bands, like all dipoles it is affected by environmental conditions so it may be necessary to seek the best operating point with several attempts. The center dipole also includes the 1:1 ferrite balun.

- Length 40 m

- Gain: 0 db

- SWR: 1:1 at center of band, useful band approximately 150Kc (optimized)

- Maximum power: 1.5KW ssb, 1KW cw-rtty

80 m

- Gain: 0 db

- SWR: 1:1.4 at center of band, useful band approximately 30 Kc (optimized)

- Maximum power: 1.5KW ssb, 1Kw cw-rtty

- Impedance: 50 ohm if installed at Inv. V (single descent)

- Amphenol or Teflon: SO239

- Total length: approximately 23m

- Weight: approximately 1.5 kg
